Price 62500 आईएनआर/ टुकड़ा

मूल्य/उद्धरण प्राप्त करें

MOQ : 1 टुकड़ा

बिजली की आपूर्ति
Electric

नमी
< 85%RH

वज़न
किलोग्राम (kg)

तापमान
सेल्सियस (oC)

डिस्प्ले टाइप
Digital

सटीकता
%

उपयोग
Industrial

Minimum Order Quantity
1 टुकड़ा

आपूर्ति की क्षमता
40 प्रति सप्ताह

डिलीवरी का समय
2-3 हफ़्ता

नमूना नीति
एक निश्चित मूल्य सीमा के भीतर, मुफ्त नमूने उपलब्ध हैं

पैकेजिंग का विवरण
थर्मोकोल के साथ सामान्य पैकिंग

मुख्य निर्यात बाजार
, , , , , , , ,

मुख्य घरेलू बाज़ार
ऑल इंडिया

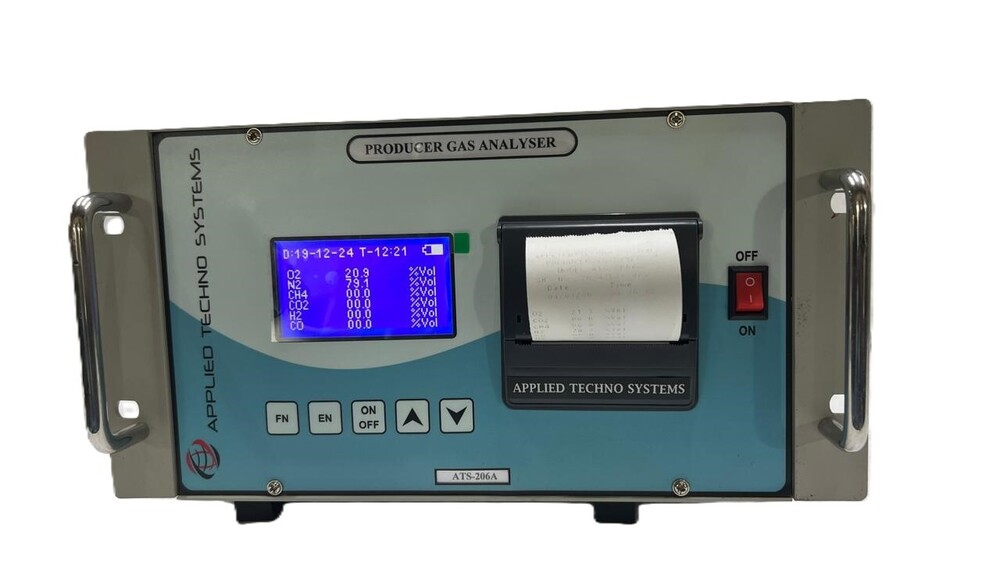

Portable Stack Gas Analyser Model ATS-206A

We offer comprehensive range of stack gas Analyzer Portable and Continuous for the analysis of stack/flue gases in exhaust, boiler and combustion process.Model ATS- 206A Stack gas Analyzer measure the flue gases after placing its probe into stack or appliance exhaust and see the concentration of Oxygen (O2), Carbon Monoxide (CO) Carbon Dioxide (CO2) NO2, SO2,NO, NOX etc.

Efficient combustion also reduces emission of pollutants such as nitric oxide (NO), nitrogen dioxide (NO2), sulphur dioxide (SO2), and particulate matter. A gas analyzer will also help measure various gas pollutants in the exhaust for environmental reasons.

Features :-

Microcontroller based embedded intelligent instruments
Single 320 X 240 Graphics LCD Display
Proven technology from gas analyser experts
ppm or % O2 levels
Hazardous area options
Choice of cells for different applications
Self calibration and self dignostic
Choice of sample systems

Specification

Principle	Electrochemical, Zirconium, Thermal Conductivity and NDIR (Non dispersive Infrared)
Range	%V/V & PPM
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Auto Suction or Direct Plug In
Gas Sampling Probe	Dia 8mm SS 316
Display	128 X 64 Graphics LCD
Alarm	Visual and Audible
Power Source	Built in Lithium Rechargeable battery
Accuracy	+/2%
Response Time	<5 Second
Data Storage	5000 or 10000
Computer Interface	RS 232, USB, RS485
Sensor Life	4-5 Years
Operating Time	6 -8 hours
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86- 106Kpa
Housing	High Impact Plastic
Dimension in mm	200 (W) X 120 (H) X 185(D)
Weight	1.5 KG
Warranty	One Year

High-Precision Stack Gas Analysis

Engineered for industrial environments, this digital portable analyzer delivers reliable emission readings with an accuracy of 2%. Its lightweight build and robust design make it ideal for periodic monitoring in the field, supporting compliance and environmental safety.

User-Friendly and Portable Design

Weighing only 1.5 kg, this analyzers compact form factor allows easy transport between sites. The digital display facilitates straightforward readings, ensuring usability even in demanding workspaces. Its electric power supply ensures consistent operation during routine inspections.

Versatile Applications for Indian Industries

Offered by Indian exporters, importers, manufacturers, service providers, and suppliers, this analyzer seamlessly integrates into various industrial processes. It is suitable for regulatory emission monitoring, process control, and preventive maintenance in factories, plants, and energy facilities.

FAQs of Portable Stack Gas Analyzer:

Q: How do I use the Portable Stack Gas Analyzer in an industrial setting?

A: To use the analyzer, place it near the stack emission point, connect the probe, and power it on. The digital display will show the gas concentration and other relevant parameters. Always ensure operating conditions are at 15C and humidity below 85%RH for optimal accuracy.

Q: What gases can the Portable Stack Gas Analyzer measure?

A: The analyzer is typically configured to detect common stack gases such as CO, SO2, NOx, and O2, helping industries monitor emissions for environmental compliance and process efficiency. For detailed capabilities, consult your supplier or the product manual.

Q: When should I calibrate or service my Stack Gas Analyzer?

A: Regular calibration is recommended before each major monitoring session or at intervals specified by the manufacturer, usually every 6 to 12 months, to maintain accuracy. Service may be required if the device gives inconsistent readings or after exposure to harsh conditions.

Q: Where can I purchase or rent this analyzer in India?

A: You can obtain the Portable Stack Gas Analyzer from authorized exporters, importers, manufacturers, service providers, and suppliers across India. Many vendors also offer sales, rental, and after-sales support to meet specific industrial needs.

Q: What is the process for measuring stack gases with this analyzer?

A: Begin by setting up the device at the required emission source. Insert the sampling probe, power on, and let the system stabilize. The measured gas concentrations appear instantly on the digital display. Ensure all readings are documented for compliance and reporting.

Q: How does using this analyzer benefit my industrial operations?

A: Implementing this analyzer helps ensure compliance with environmental standards, facilitates efficient process control, and aids in detecting emission anomalies early. Its portability enhances convenience, while digital accuracy supports reliable decision-making for maintenance and reporting.
