Portable Dew Point Meter

Price 60000 INR/ Pack

Get a Price/Quote

MOQ : 1 Pack

Portable Dew Point Meter Specification

Humidity %
< 85%RH

Temperature Range
15 Celsius (oC)

Frequency
50 Hertz (HZ)

Usage
Industrial

Material
ABS

Power Supply
Electric

Accuracy
+/2 %

Display Type
Digital Only

Portable Dew Point Meter Trade Information

Minimum Order Quantity
1 Pack

FOB Port
INDIA

Supply Ability
40 Packs Per Month

Delivery Time
2-3 Week

Sample Policy
Free samples are available

Packaging Details
Normal Packing with Thermocol

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001:2015

About Portable Dew Point Meter

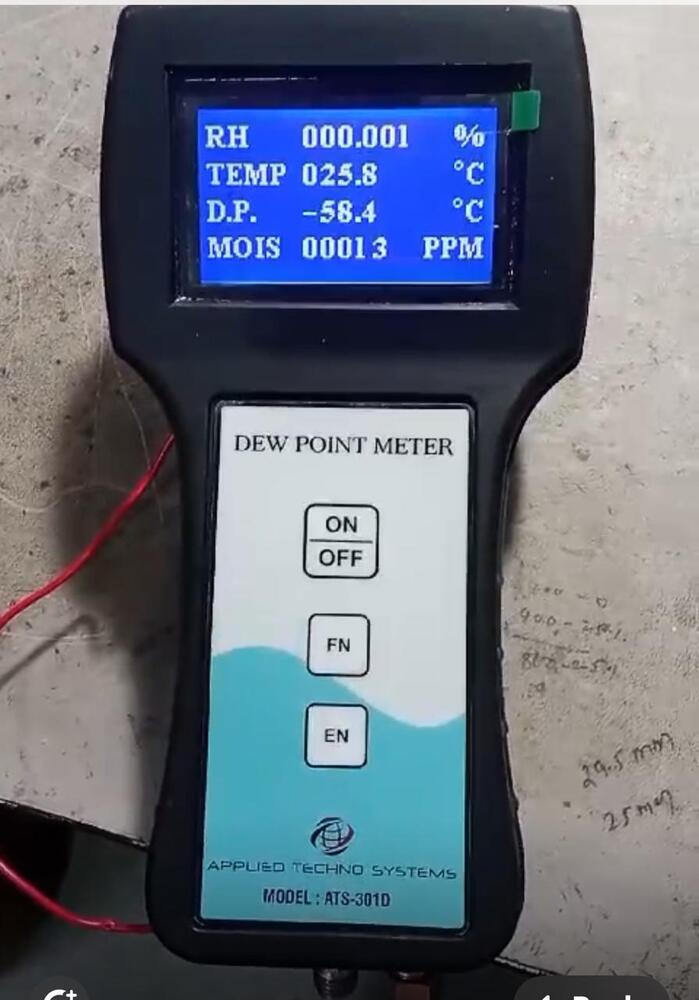

Dew Point Meter Model ATS-301D

Applied Portable handheld battery operated Dew Point meter Model ATS 301D are designed to measures dew point, temperature faster and accurately over a wide measurements range.Model ATS 301D is highly optimized to measure the dew point , Temperature for dryers and compressed air/gases.
Air or Gas samples up to 12kg/cm2 pressure and temperature up to 75 deg C can be directly measured . For higher temperature applications , a Heat sink tubing cab be used. The meter can also be connected to a vacuum pump for sampling from systems at low or atmospheric pressure.
Dew Point meter ATS 301D Measures the dew point precisely by utilizing a highly reliable microprocessor based electronic circuit to convert the sensor signal by the use of psychometrics equations, Assembled

Specification :

Principle	Thin Film Capacitive Sensor
Range	Degree C, PPM & % RH
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Direct Plug In
Display	128 X 64 Graphics LCD
Power Source	Built in Lithium Rechargeable battery
Accuracy	+/2%
Response Time	<5 Second
Data Storage	5000 or 10000
Computer Interface	RS 232, USB
Sensor Life	2-3 Years
Operating Time	6-8 hours
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86-106Kpa
Housing	High Impact Plastic
Dimension in mm	130 (W) X 250 (H) X 90(D)
Weight	0.5 KG
Warranty	One Year

Reliable Dew Point Monitoring

This meter ensures consistent and accurate dew point readings for compressed air and gas systems. With digital-only display technology and high accuracy, it helps maintain optimal operational standards while minimizing moisture-related risks in industrial applications.

Compact and User-Friendly Design

Weighing just 0.5 kg and built from robust ABS material, the meter is easily portable for field use. The lithium rechargeable battery and electric power options provide flexible operation, making routine monitoring convenient and efficient.

FAQs of Portable Dew Point Meter:

Q: How does the Portable Dew Point Meter function in industrial environments?

A: The meter measures the dew point of compressed air or gas by detecting moisture levels with high accuracy. It operates under pressures up to 12 kg/cm and has a digital readout, making it suitable for continuous industrial monitoring.

Q: What are the key benefits of using a lithium rechargeable battery in this meter?

A: The lithium rechargeable battery offers extended operational time, portability, and allows the device to function independently of direct power sources, making it ideal for use onsite or during field work.

Q: When should I use the Portable Dew Point Meter for my compressed air or gas system?

A: It is recommended to use the meter during routine maintenance checks, system installation, or troubleshooting to ensure that moisture levels remain within safe operational limits and to prevent equipment damage.

Q: Where can the Portable Dew Point Meter be effectively deployed?

A: This meter is suitable for various industrial settings across India, wherever compressed air or gas systems require dew point monitoring, such as manufacturing plants, gas distribution sites, and service providers.

Q: What is the process for taking a dew point measurement with this device?

A: Simply connect the meter to the compressed air or gas supply, power it on using the rechargeable battery, and view the readings on the digital display. The process is quick and requires minimal setup.

Q: Can the meter be used in high humidity environments?

A: The device is designed to operate optimally in environments where relative humidity is below 85%. For best results and accurate readings, avoid using it in areas surpassing this humidity threshold.

Q: What accuracy can be expected from the Portable Dew Point Meter?

A: The meter delivers precise results with an accuracy of 2%, ensuring reliable monitoring for industrial processes where moisture control is critical.
