Portable Flue Gas Analyzer

Portable Flue Gas Analyzer
Portable Flue Gas Analyzer
Send Inquiry
Product Code : 206A
Brand Name : ATS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Pack/Packs
  • Price
  • 68506 INR
  • Price Range
  • 69000.00 - 70000.00 INR
Product Specifications
  • Usage
  • Monitoring
Product Description

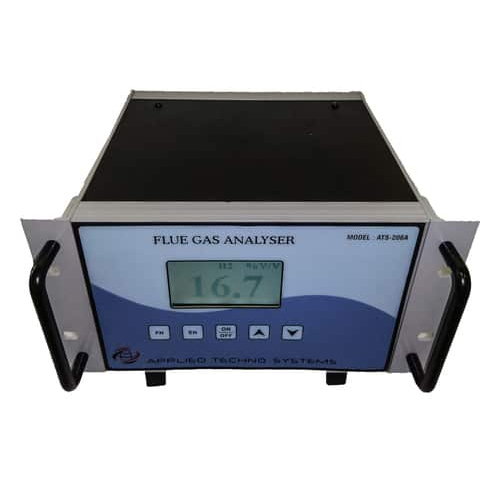

Portable Flue Gas Analyzer Model ATS 206

A Small, Handheld and a convenient instrument to test & achieve optimum combustion efficiency in boilers & furnaces in Pharmaceutical , Oil And Gas Plant,  Power Plant, Chemical Plant.

Parameters: O2, CO, CO2, SO2 , NO2


Technical specification



Range

A) Oxygen

0-25% in Stack Gas


B) Different Temp.

25-650 deg.C


C) Efficiency

0-99.0%


D) CO

0-2000 PPM


E) CO2 (Calculated)

0-25%

Optional

Lambda (Calculated)


Resolution

A) Oxygen

0.1%


B) CO

1 PPM


C) Different Temp.

0.1%


D) Efficiency

0.1%

Display


Alpha Numeric LCD




Fuels


User Selectable Oil, Coal, Gas




Sensors

A) Oxygen

Electrochemical







B) Temperature

Type K Thermocouple




Calibration


Automatic with Fresh



Air Sample




Accuracy

A) Oxygen

+/- 0.25%


B) Temp.

+/- 0.25%


C) Efficiency

+/- 0.25%




Response Time


Maximum 30Sec.



at 95% Variation




Self Diagnosis


Combustion efficiency test



with diagnostic indications




Power Supply


Internal Ni-cad battery pack



with external charger 220V 50Hz Ac



(Optional 110V 50Hz)




Working Temp.


-5 deg.C to 55 deg.C




Storage Temp.


-20 deg.C to 50 deg.C




Line Filter


Replaceable Cartridge

Case


ABS Plastic

External Dimensions


222X105X40 mm

Weight


500 gm.




Accessories


Leather case with shoulder strap



Battery charger, Operational Manual




Probe Length


SS 600mm length standard



(900mm, 1200mm, Optional)








Trade Information
  • FOB Port
  • Mumbai
  • Supply Ability
  • 50 Per Week
  • Delivery Time
  • 2-3 Week
  • Packaging Details
  • Normal Packing with thermocol
  • Main Domestic Market
  • All India
