Home » Products » Gas Monitoring Systems » Fixed Gas Detector

Fixed Gas Detector

Fixed Gas Detector
Fixed Gas Detector
Send Inquiry
Product Code : ATS-105M
Brand Name : APPLIED TECHNO SYSTEMS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 24500 INR
  • Price Range
  • 24500.00 - 35400.00 INR
Product Description

Since we initiated our journey in this domain, we are indulged in offering superior quality Fixed Gas Detector. Offered detector is manufactured under the proper supervision of our talented experts by utilizing quality approved components in sync defined market norms as per market norms. This detector is used to detect the level of oxygen, toxic, and combustible gases in a specific area. Our clients can purchase this Fixed Gas Detector in several technical specifications at reasonable prices within the promised time frame.

Features:

  • Robust construction

  • High strength

  • Shock proof body

  • Compact design

Description :

Single Point Hazardous Gas Monitor/ Alarm for ambient air

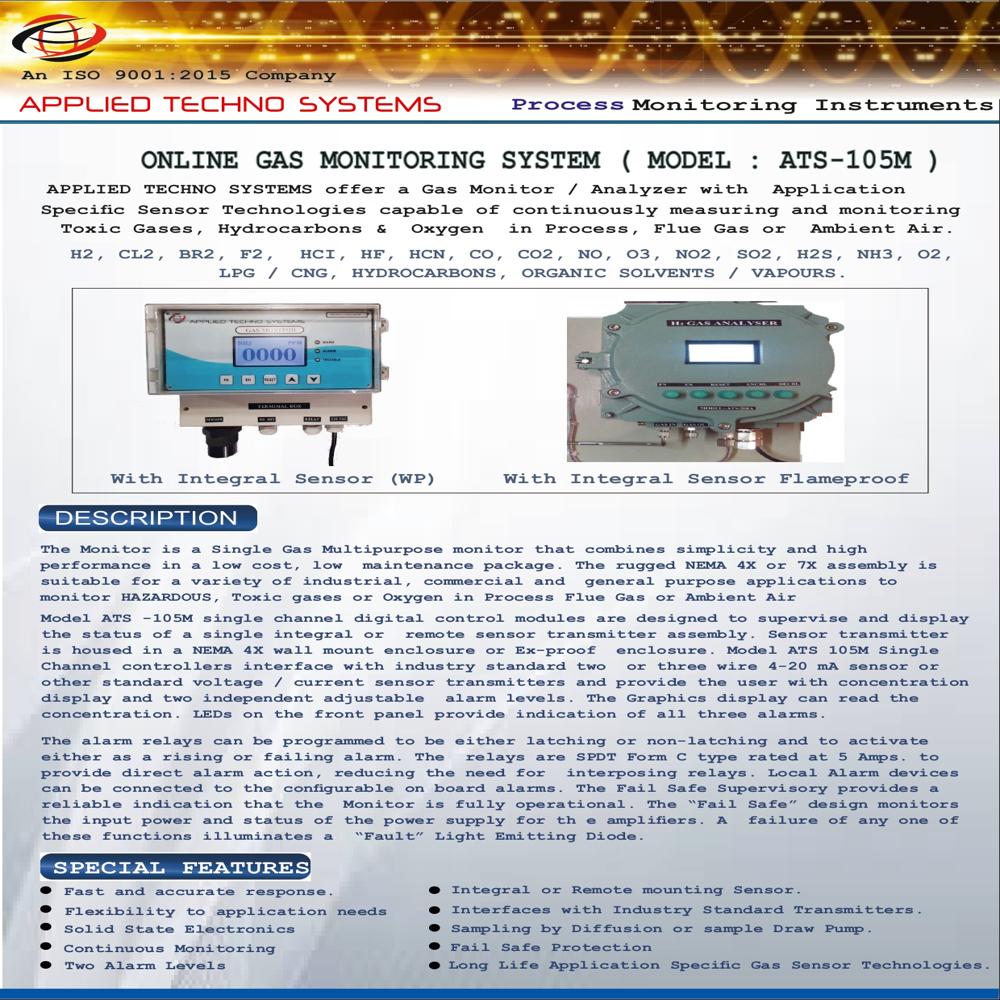

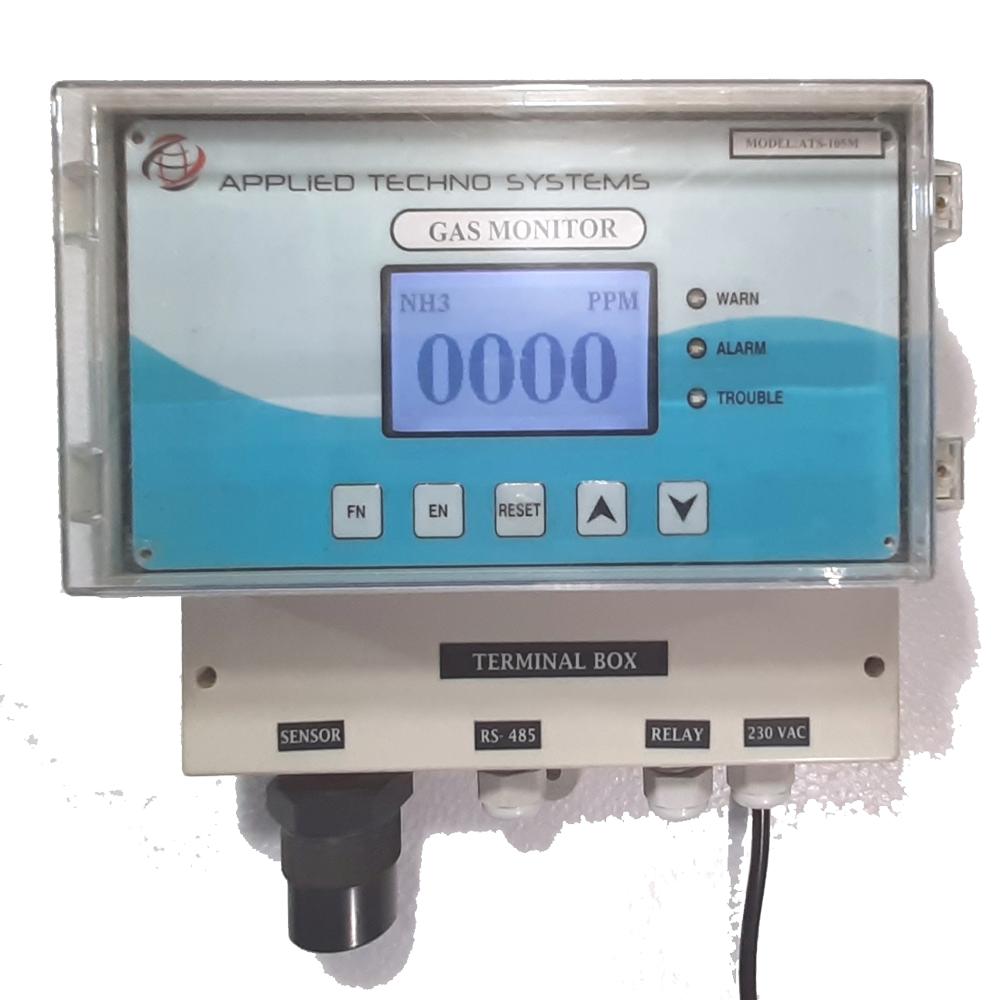

Model ATS-105M is Single Point Hazardous Gas Monitor/ Alarm for ambient air. Model ATS-105 is suitable for Combustible gases (%LEL) or PPM level of CO, H2S, SO2, NO, NO2, CL2, B2H6, Hydrocarbons, organic solvents and other Toxic Gases.

The ATS-105M features a rugged, long-life Electrochemical, Catalytic Pellister, metal oxide semiconductor (MOS) sensor. The sensor is available either in a separate junction box for remote mounting up to several hundred Meters from the monitor, or as an integral component attached to the instrument. The ATS-105M provides a Graphics LCD display of gas concentrations, audio/visual alarms, relay contacts, plus analog (4-20mA ) and digital  RS 232/485 and USB outputs.

Accept Single 4-20 mA Input from Remote Sensor/Transmitter.

Multi Chanel Gas Monitor

Model ATS-107M is Multi channel gas Monitor for environmental Monitoring and Leak detection. The ATS-107M  is an economical, yet versatile Multi channel controller with the features needed for monitoring a remote 4-20 mA gas sensor/transmitter or similar device. The instrument provides 24 VDC power, audio/visual alarms, alarm relays and other features. The ATS-107M  is easy to install, designed for wall mounting and completely programmable from the front panel membrane switches.

Accept Multi 4-20 mA Input from Remote Sensor/Transmitter.


Specificications

Principle

Electrochemical, Solid State Semiconductor Catalytic and PID

Range

PPM/PPB or mg/M3

Resolution

0.1 Unit or 1 Unit (Application based)

Sampling Method

Diffusion

Display

128 X 64 Graphics LCD

Alarm

Relay Contact NO+NC

Anolog out Put

4-20mA

Digital out Put

RS 232, RS 485 and Modbus Communication Protocol

Power Source

230V AC

Accuracy

+/2%

Response Time

<5 Second

Data Storage

1000 or 10000

Sensor Life

2-3 Years

Environmental


Temperature

15degree Celsius

Humidity

< 85%RH

Atmosphere Pressure

86- 106Kpa

Dimension in mm

210 (W) X 180(H) X 110(D)

Weight

1.2 KG

Warranty

One Year






Trade Information
  • FOB Port
  • Mumbai
  • Supply Ability
  • 50 Per Week
  • Delivery Time
  • 1-2 Week
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • normal packing
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
