Gas Sensor Transmitter

Gas Sensor Transmitter
Gas Sensor Transmitter
Send Inquiry
Product Code : ATS-109TD
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Pack/Packs
  • Price Range
  • 9502.00 - 10000.00 INR
  • Price
  • 8502 INR
Product Specifications
  • Product Type
  • Transmitter
  • Input
  • 24VDC,230VAC Optional
  • Output
  • 4-20ma
  • Function
  • detection
  • Usage
  • transmitter
  • Accuracy
  • ±2 %
  • Resolution
  • 0.1 Unit or 1 Unit
  • Warranty
  • 1 Year
Product Description

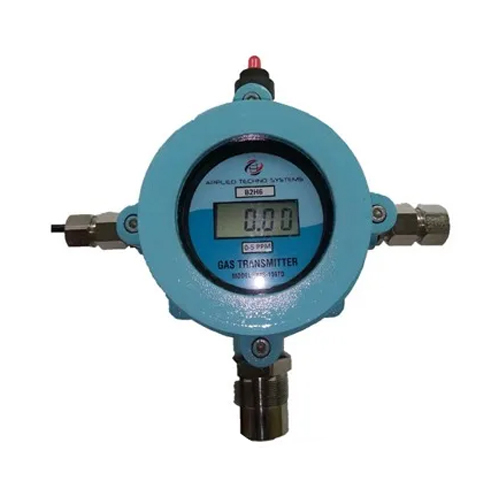

Gas Sensor Transmitter  (Model:ATS-109TD)

Suitable for All Toxic, Combustible Gases

Over the year, we have gained specialization in the international market by manufacturing, exporting and supplying pristine quality Gas Sensor Transmitter. The offered transmitter for detecting the level of gases in a specific area. This transmitter is manufactured under the guidance of our technical experts by utilizing premium quality components in sync with the predefined market norms. Moreover, we offer this Gas Sensor Transmitter in several specification to withstand clients diverse need.


  • High performance
  • Less maintenance
  • Easy to install
  • Durable finish standards
Description :-

The ATS-109TD Sensor/Transmitter operates on 24 VDC power and features LED alarm  indicators, 4-20 mA output and optional alarm relay board. This sensor/transmitter can be connected to various applied controllers or computer-based instrumentation, such as PLC or similar instrumentation.

Combustible gas Sensor/Transmitter 0-100%LEL

The Model ATS-109TD incorporates a pellistor or catalytic bead sensor. This sensor consists of a matched pair of elements, one active and the other for compensation. When in contact with a combustible hydrocarbon or solvent causes the gas or vapor to "burn" or oxidize at concentrations below the Lower Limit (LEL). This oxidization process raises the temperature of the active bead and increases the resistance of the internal wire coil. The second bead does not have the catalytic coating and provides compensation for environmental conditions including temperature and humidity. When these elements are connected to the circuit, a useable signal is produced that is proportional to the gas concentration.

Electrochemical Sensor/Transmitter for H2, O2, CO, H2S and other Toxic Gases

The ATS-109TD Series Sensor/Transmitters utilize electrochemical type cells to detect the target gas. These cells consist of electrodes, electrolyte and an air/liquid separation barrier. Gas molecules enter the cell and, as a result of an oxidation/reduction reaction, generate an electrical current proportional to the gas concentration.

NDIR Hydrocarbon Sensor/ Transmitter

The ATS-109TD incorporates a sensor that operates on the NDIR principle to monitor the concentration of hydrocarbon gas. It can be calibrated for a specific gas, such as methane, but it also responds to some other hydrocarbon gases, including propane, butane, etc. The sensor features an integral semiconductor for temperature compensation, a durable tungsten filament IR light source, filter and a dual temperature-compensated pyroelectric infrared detector.

Technical Specification


Electrochemical, Solid State Semiconductor and Catalytic




0.1 Unit or 1 Unit (Application based)

Sampling Method



Alphanumeric LED


Relay Contact NO+NC

Anolog Out Put


Digital Out Put

RS 232, RS 485 and Modbus Comminication Protocol

Power Source

24V DC or 230VAC



Response Time

<5 Second

Sensor Life

2-3 Years
