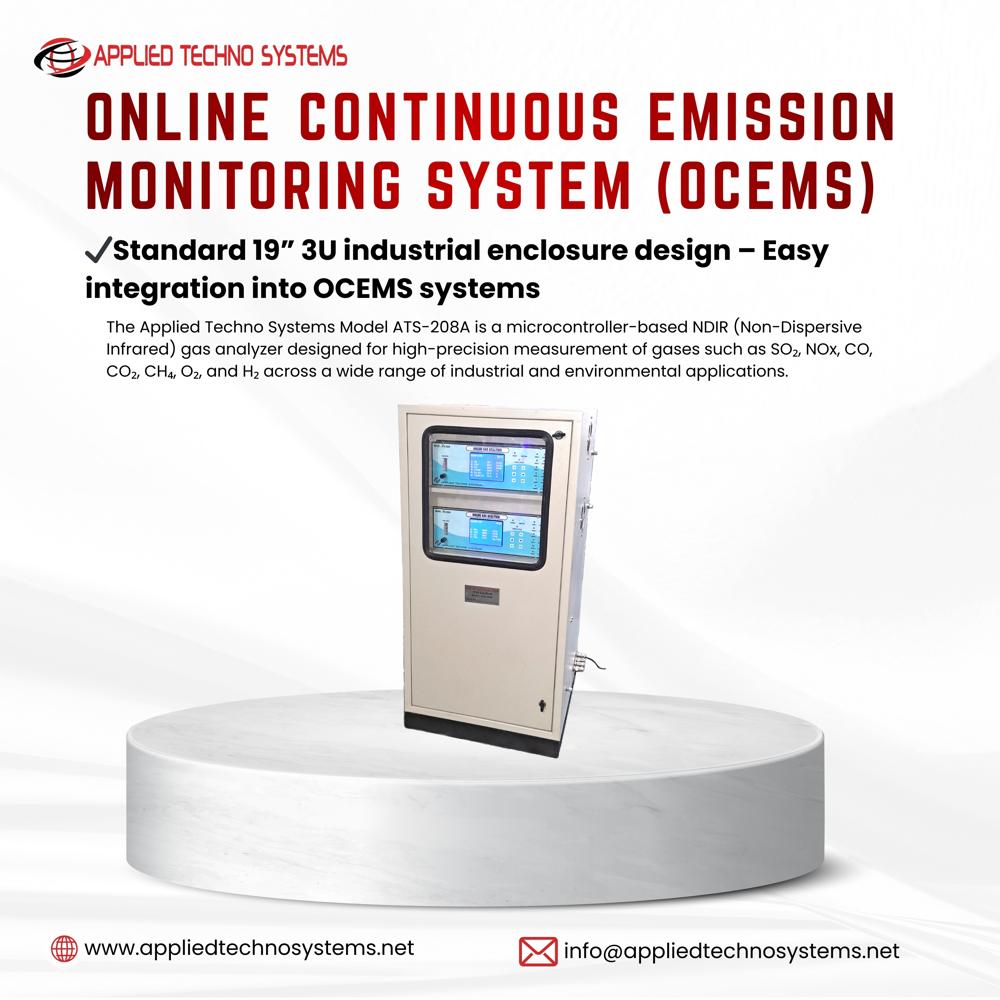

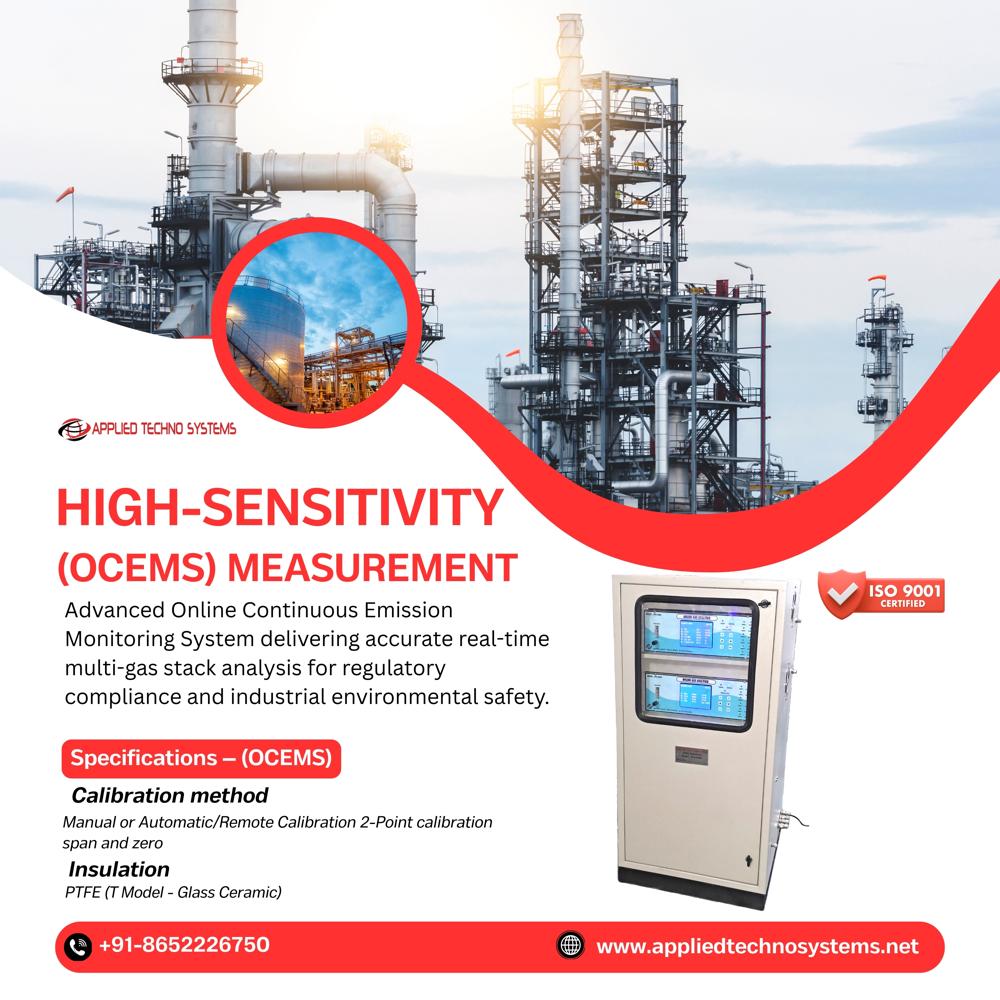

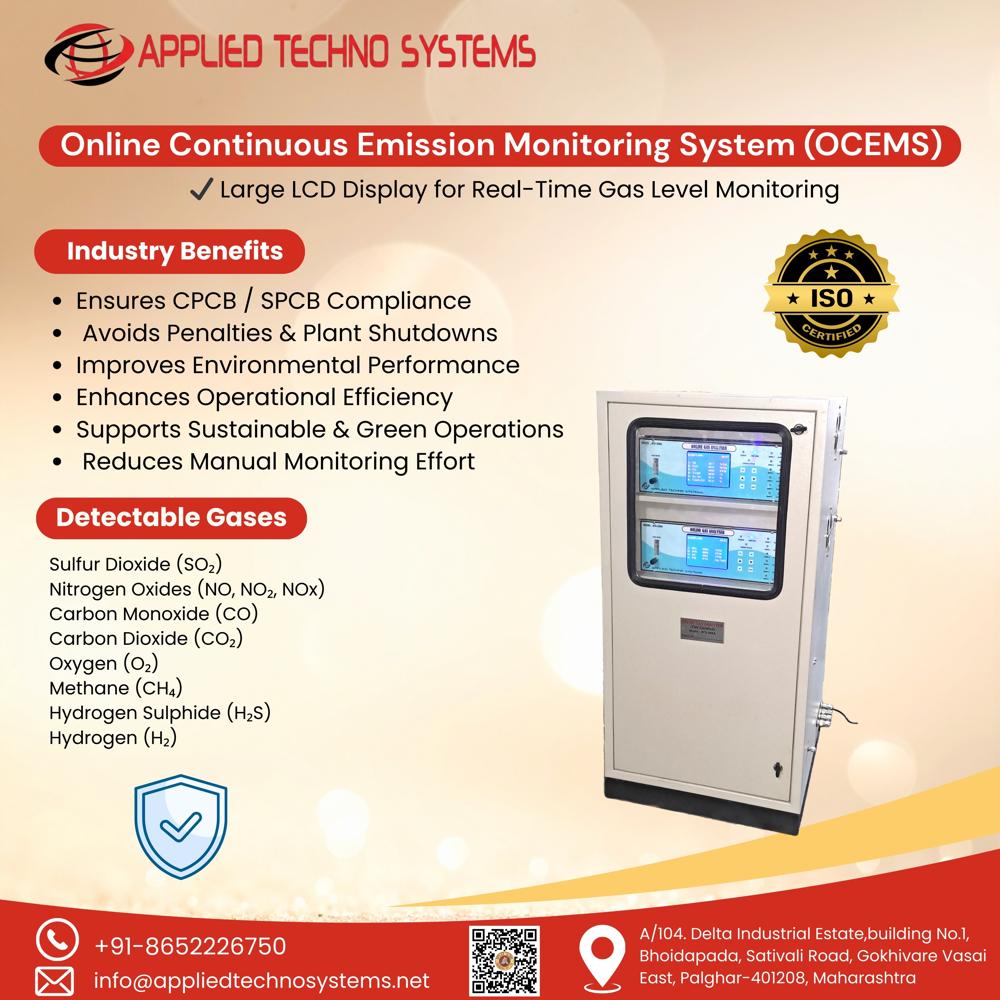

Online Continuous Emissions Monitoring Systems (OCEMS) Model ATS-208A
Approved by TUV
As per latest CPCB guidelines, it is now mandatory to monitor online continuous S Emission Monitoring Systems (OCEMS) in 17 categories of highly polluting industries and in Common Hazardous waste and Biomedical waste incinerators for the parameters(industry/sector specific parameter) mentioned in the consent to operate/authorisation not later than by JUNE 30,2015.
We offer comprehensive range of stack gas Analyzer Continuous for the analysis of stack/flue gases in exhaust, boiler and combustion process.
Continuous Monitoring of SO2, NOX (NO NO2), SPM, H2, H2S, N2, CO2 ,CH4, CO, O2,
Duel wavelength Infra red sensor for Long terms accuracy and stability
Long Life Electrochemical sensor
Six Gas Analysis in Single Analyser
Multi Parameter Single 320 X 240 Graphics LCD Display
Self diagnostic & Self integrity check
RS 232/RS 485 and USB Computer Interface
Excellent low level capability for NOX and SO2 Measurement
For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.
Analog 4-20mA output for each gas
Online Continuous Emission Monitoring Systems (OCEMS) Model ATS- 208A Emission Analyzer continuously monitors the concentration of gases ranging from 100%V/V down to PPM level. Feature includes a duel wavelength sensor, Remote Sampling, Graphics LCD Display, adjustable level relay output for alarm and 4-20mA output for control purpose and minimal maintenance.
Special gas sample Conditioning systems are used to clean and dry the gas sample for accurate and High performance operation. An Internal Pump draw gas sample into the sensor through a dust particle filter from an intake which can be located at distance up to 40 meter form the monitor.
The Sensor and Electronic component are housed in tough aluminium housing
- Principle: Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic
- Range: %V/V, % LEL, PPM, Mg/M3
- Resolution: 0.1 Unit or 1 Unit (Application based)
- Sampling Method: Auto Suction
- Display: 320 X 264 Graphic LCD
- Alarm; Relay Contact NO NC
- Analog Out Put: 4-20mA
- Digital Out Put : RS 232, RS 485 and Modbus Communication Protocol
- Power Source: 230VAC
- Accuracy: /2%
- Response Time: <5 Second
- Sensor Life: 2-3 Years
- Temperature:-15degree Celsius Humidity :< 85%RH Atmosphere Pressure: 86- 106Kpa
- Dimension in mm: 430 (W) X 150(H) X 250(D)
- Weight: 2.5 KG
- Warranty: One Year
