Price 35500.0 INR/ Unit

MOQ : 1 Unit

Ammonia NH3 Monitoring Systems Specification

  • Temperature
  • -5 to 55 Celsius (oC)
  • Application
  • Gas Detection
  • Product Type
  • Gas Monitor
  • Response Time
  • 10 Seconds
  • Dimension (L*W*H)
  • 115 X 180 X 60 Centimeter (cm)
  • Mounting Type
  • Handheld or tripod
  • Resolution
  • 1, 0.1
  • Voltage
  • 110-215 Volt (v)
  • Accuracy
  • 0.5 %
  • Display Type
  • Digital
  • Humidity
  • 85% RH
  • Automation Grade
  • Semi-automatic
  • Operate Method
  • Semi Automatic
  • Material
  • MS
  • Color
  • Grey
  • Features
  • Good Quality
  • Power Supply
  • Electric
  • Usage
  • Industrial
  • Hardness
  • Yes
  • Control Mode
  • Automatic


Ammonia NH3 Monitoring Systems Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Supply Ability
  • 500 Units Per Month
  • Delivery Time
  • 7 Days


Ammonia NH3 Monitoring Systems About

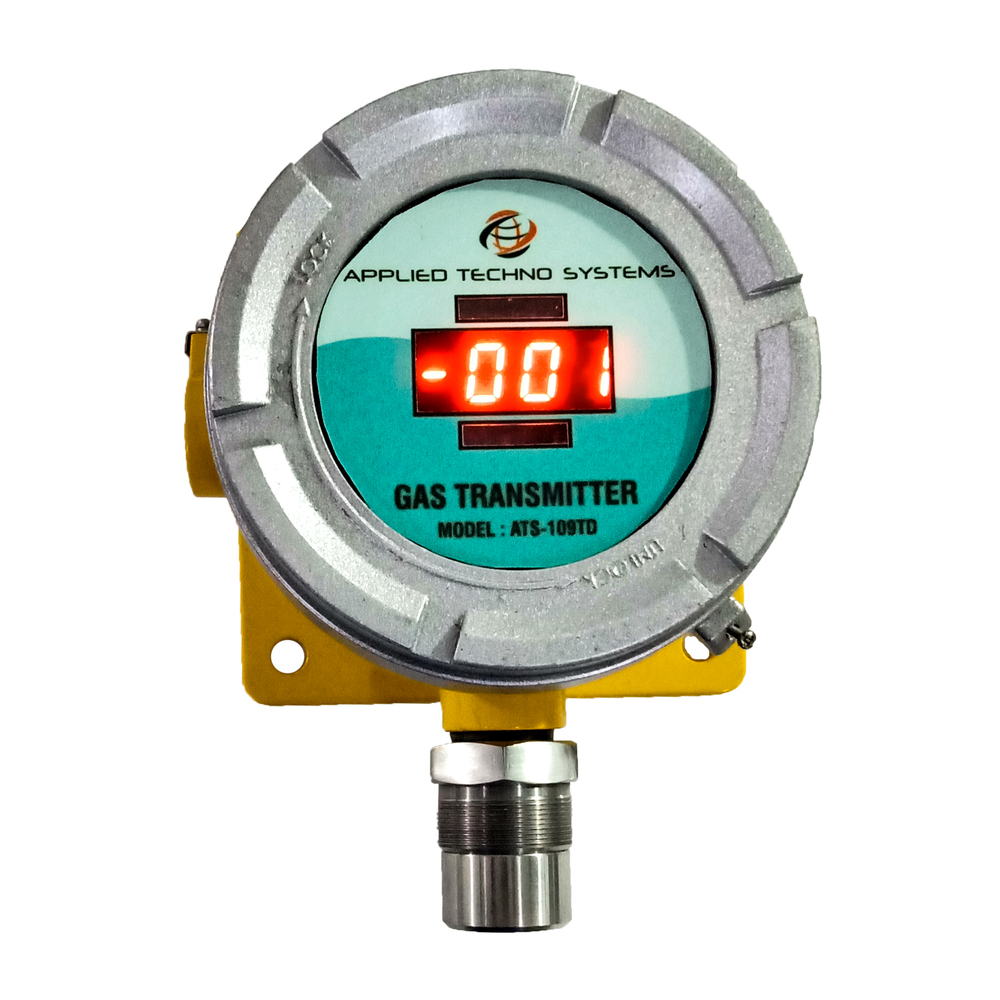

The Online Ammonia Gas Sensor Transmitter is a fixed-installation device designed to continuously monitor NH gas concentrations in real-time. Suitable for industrial safety, environmental compliance, and process control applications, it provides analog and digital output signals for easy integration with control systems like SCADA, PLC, or DCS.


Technical Specifications:

Parameter Details
Gas Detected Ammonia (NH)
Measurement Range 050 / 0100 / 0500 ppm (customizable)
Sensor Type Electrochemical / PID (for trace levels)
Output Signal 420 mA / RS485 Modbus RTU / Relay (optional)
Response Time (T90) 30 seconds
Accuracy 2% of full scale
Power Supply 1230 VDC or 220 VAC (with adapter)
Display (Optional) Digital OLED or LCD
Alarm System Programmable visual + audible (optional)
Enclosure Protection IP65 / IP66 / Flameproof (Zone 1 & 2 available)
Operating Temperature -20C to +55C
Mounting Type Wall / Pipe Mount
Sensor Life 1824 months (field replaceable)


Key Features:

  • 24x7 online NH gas monitoring

  • Standard industrial output signals (420 mA / Modbus)

  • Rugged enclosure for outdoor/indoor use

  • High/low alarm functions with relay outputs

  • Field-replaceable sensor with calibration port

  • Optional cloud/GPRS data access


Applications:

  • Chemical & fertilizer industries

  • Livestock & poultry farms (NH from waste)

  •   Cold storage & refrigeration plants (ammonia-based)

  • Process gas & emission control systems

  • Hazardous zone industrial safety systems



Versatile Mounting and Automation Options

Our Ammonia NH3 Monitoring System can be securely mounted handheld for mobility or on a tripod for stationary use, adapting to varied industrial requirements. The semi-automatic operating method ensures easy handling while maintaining consistent accuracy. Its robust mild steel construction guarantees the device stands up to the rigors of daily use.


Optimized for Industrial Use

Designed for harsh industrial environments, this monitoring system operates reliably within the common voltage range of 110-215 volts. The combination of automated processes and manual controls allows for efficient ammonia detection, helping safeguard employee health and ensure compliance with safety regulations.

FAQs of Ammonia NH3 Monitoring Systems:


Q: How does the Ammonia NH3 Monitoring System function in industrial environments?

A: The system detects ammonia concentration in the air using sensitive sensors and semi-automatic operation. It provides real-time data for monitoring and maintaining safe workplace conditions across various industrial sectors.

Q: What are the advantages of the handheld and tripod mounting options?

A: Handheld use allows for portable and spot monitoring, while the tripod option provides stable, continuous observations in fixed locations. This flexibility ensures thorough coverage in diverse operational areas.

Q: When should I use the NH3 monitoring system during my industrial processes?

A: It is recommended to use the system during routine assessments, safety inspections, or whenever ammonia exposure risk is present to promptly identify leaks or unsafe levels.

Q: Where can this ammonia detector be effectively deployed?

A: The device can be used in manufacturing plants, chemical processing units, warehouses, and any other industrial setting where ammonia is handled or stored.

Q: What is the operating process of this semi-automatic ammonia monitor?

A: Setup is straightforward: position the device (handheld or tripod), initiate the monitoring process, and let the semi-automatic system manage measurement. Routine checks and calibrations ensure ongoing accuracy.

Q: How does the robust MS (Mild Steel) build benefit users?

A: MS construction offers excellent hardness and durability, ensuring the system withstands tough conditions commonly found in industrial environments. This translates into long service life and dependable performance.

Q: What are the key business benefits of using this NH3 monitoring device?

A: Employing this system enhances workplace safety, ensures compliance with regulatory standards, and reduces accident risks, thereby supporting uninterrupted industrial operations and safeguarding both assets and personnel.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Gas Detector Category

Gas Detectors

Gas Detectors

Price 32500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 20 C to 55 C Celsius (oC)

Display Type : 128 x 64 LCD Graphics Display with backlit

Accuracy : +/2 %

Control Mode : Automatic

Multi Point Leak Detector

Multi Point Leak Detector

Price 15500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 15 Celsius (oC)

Display Type : Graphic

Accuracy : 0.5 %

Control Mode : Automatic

Portable Hydrogen Gas Leak Meter

Portable Hydrogen Gas Leak Meter

Price 32500.0 INR / Unit

Minimum Order Quantity : 1 Unit

Temperature : 5 55 Celsius (oC)

Display Type : Digital

Accuracy : +/ 2 %

Control Mode : Automatic

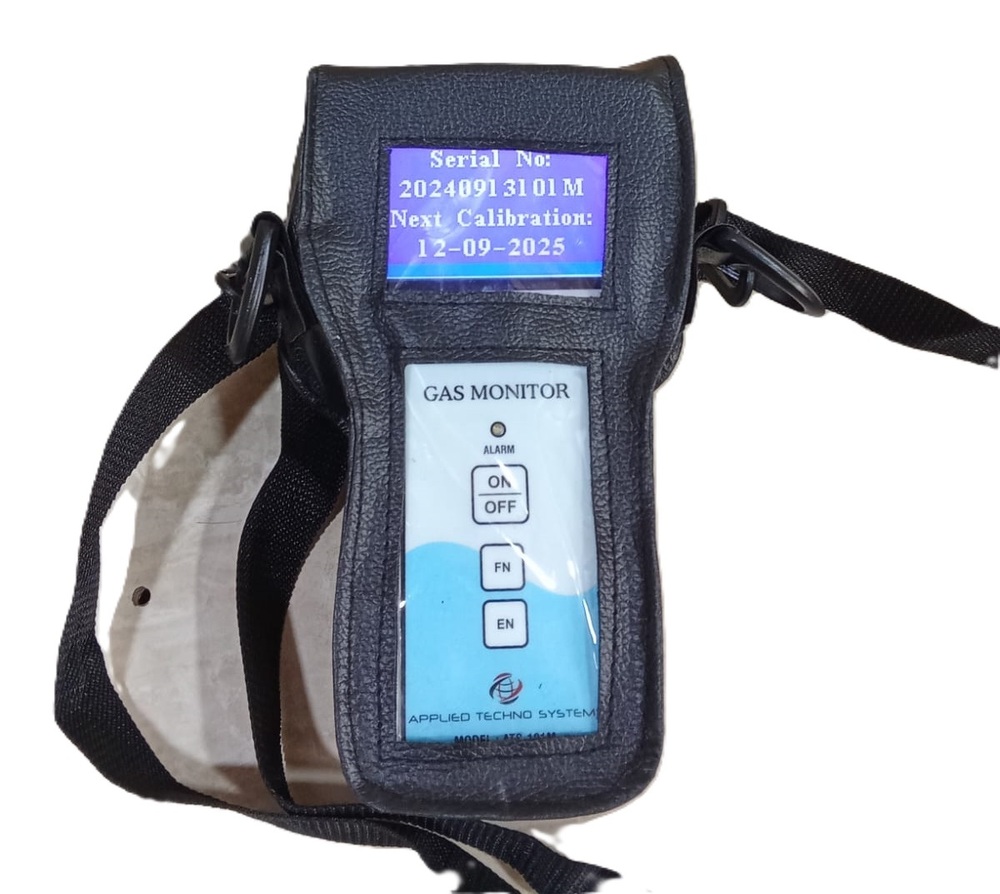

Portable VOC Detector for industrial use Model ATS 101M
