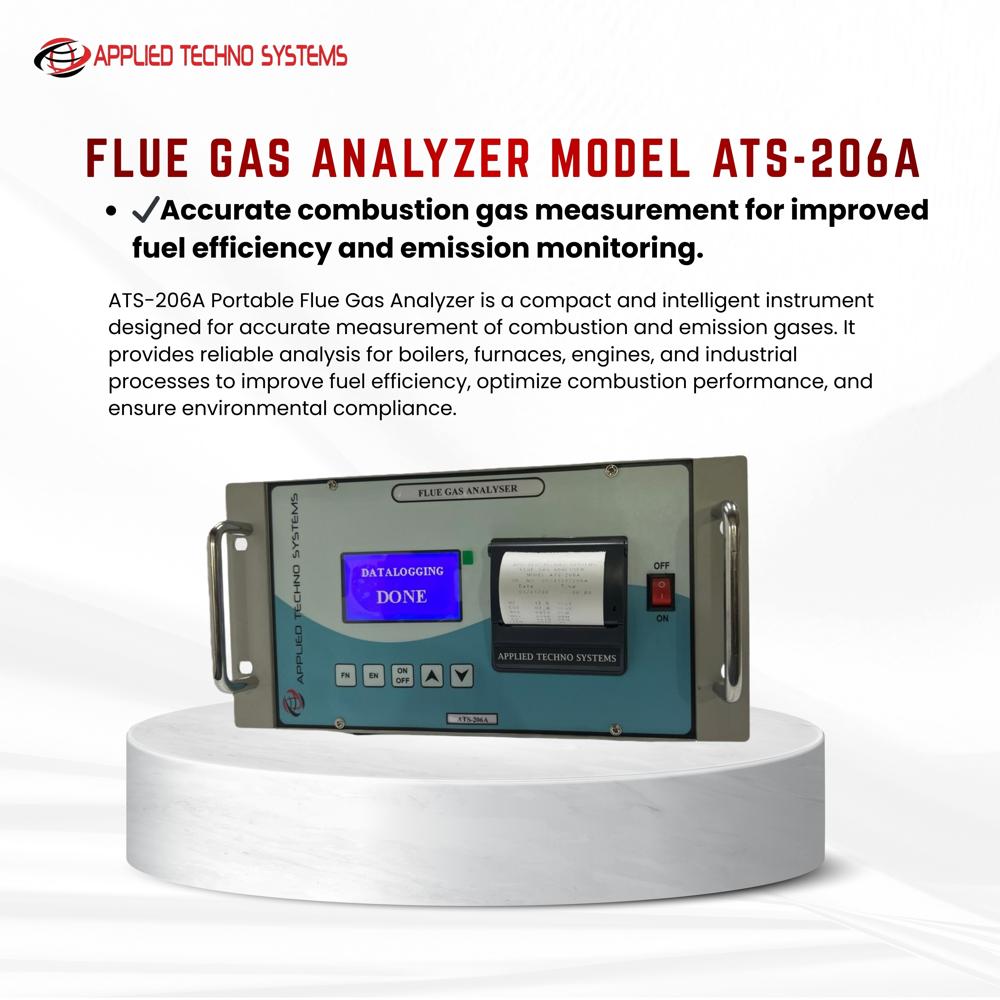

About ATS-206A Flue Gas Efficiency Analyser

The ATS-206A Flue Gas Efficiency Analyser is a high-precision portable instrument designed for accurate combustion efficiency and flue gas analysis. It measures key gases such as O, CO, CO, NOx, and SO to evaluate combustion performance and optimize fuel usage.

With fully automatic operation, including calibration and sampling, this analyser ensures reliable and user-friendly performance in industrial environments. It continuously calculates combustion efficiency, excess air, and flue gas parameters, helping industries improve energy efficiency and reduce emissions.

Compact, rugged, and easy to operate, the ATS-206A is ideal for boilers, furnaces, burners, and process industries requiring precise gas analysis.

Key Features

• Accurate combustion efficiency calculation
• Multi-gas flue analysis system
• Fully automatic calibration & operation
• Real-time display of gas concentration & efficiency
• Built-in pump with flow monitoring
• Multi-fuel selection (up to 10 fuels)
• Fast response time with stable readings
• Portable and rugged industrial design

Technical Specifications

Model: ATS-206A
Type: Flue Gas Efficiency Analyser
Display: Graphics LCD
Response Time: 20 seconds
Power Supply: Rechargeable battery + AC charger
Working Temperature: -5C to 55C
Weight: Approx. 1.5 kg

Measured Parameters

• Oxygen (O)
• Carbon Monoxide (CO)
• Carbon Dioxide (CO)
• Nitrogen Oxides (NOx)
• Sulfur Dioxide (SO)
• Combustion Efficiency
• Excess Air
• Flue Gas Temperature

Applications

• Boiler Efficiency Monitoring
• Furnace & Burner Analysis
• Power Plant Combustion Testing
• Flue & Stack Gas Monitoring
• Energy Audit & Emission Control
