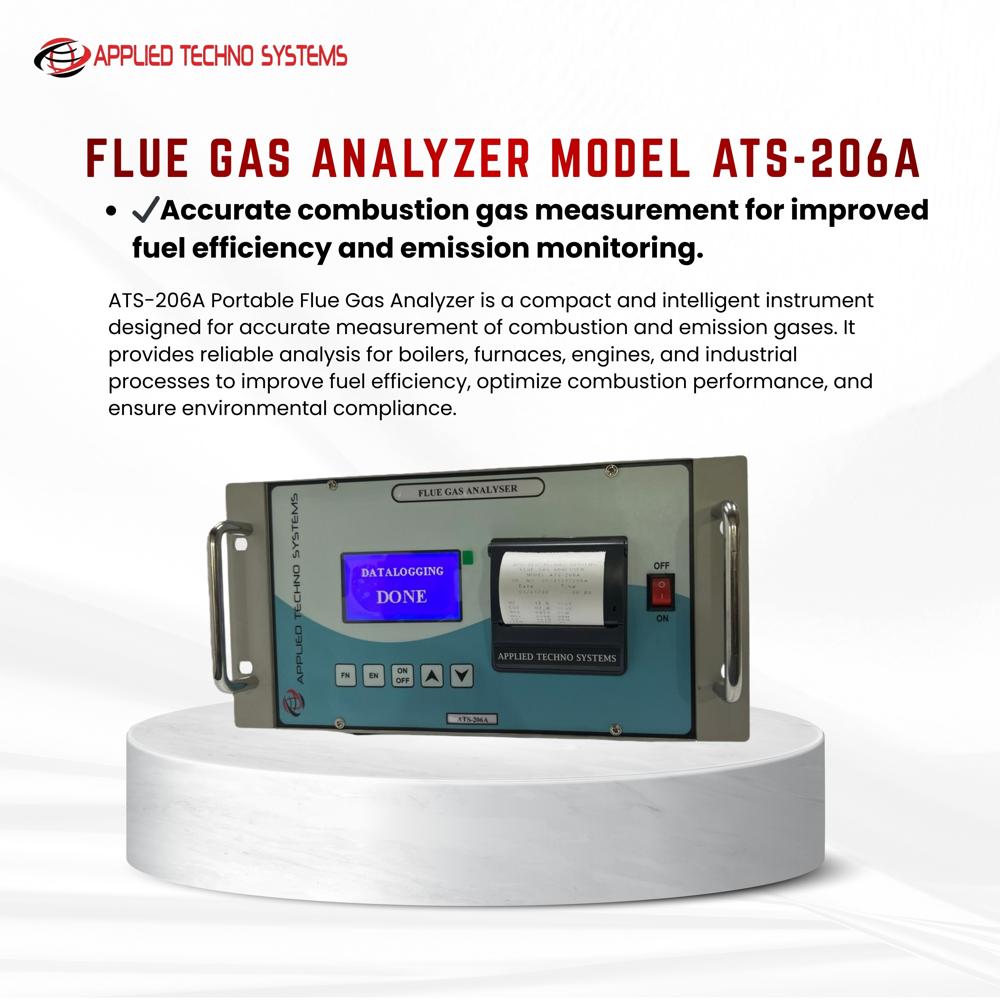

About ATS-206A Handheld stack gas analyzer

The ATS-206A Stack Gas Analyser is a high-precision portable instrument designed for accurate stack emission monitoring and flue gas analysis in industrial applications. It measures key gases such as O, CO, CO, NOx, and SO to ensure compliance with environmental standards and optimize combustion efficiency.

With advanced sensor technology and fully automatic operation, the analyser provides real-time gas concentration, excess air, and combustion efficiency calculations. Its compact and rugged design makes it ideal for on-site use in demanding industrial environments.

The ATS-206A is widely used for stack monitoring in boilers, furnaces, power plants, and process industries, helping industries reduce emissions and improve operational efficiency.

Key Features

• Accurate stack emission analysis
• Multi-gas detection with high precision sensors
• Fully automatic calibration & sampling
• Real-time continuous gas monitoring
• Built-in pump with flow supervision
• Fast response with stable readings
• Portable and rugged industrial design
• Suitable for compliance and process monitoring

Technical Specifications

Model: ATS-206A
Type: Stack Gas Analyser
Display: Graphics LCD
Response Time: 20 seconds
Power Supply: Rechargeable battery + AC charger
Working Temperature: -5C to 55C
Weight: Approx. 1.5 kg

Measured Gases

• Oxygen (O)
• Carbon Monoxide (CO)
• Carbon Dioxide (CO)
• Nitrogen Oxides (NOx)
• Sulfur Dioxide (SO)
• Hydrocarbons (HC)

Applications

• Stack Emission Monitoring
• Boiler & Furnace Exhaust Analysis
• Power Plant Emission Testing
• Industrial Pollution Monitoring
• Environmental Compliance Testing
