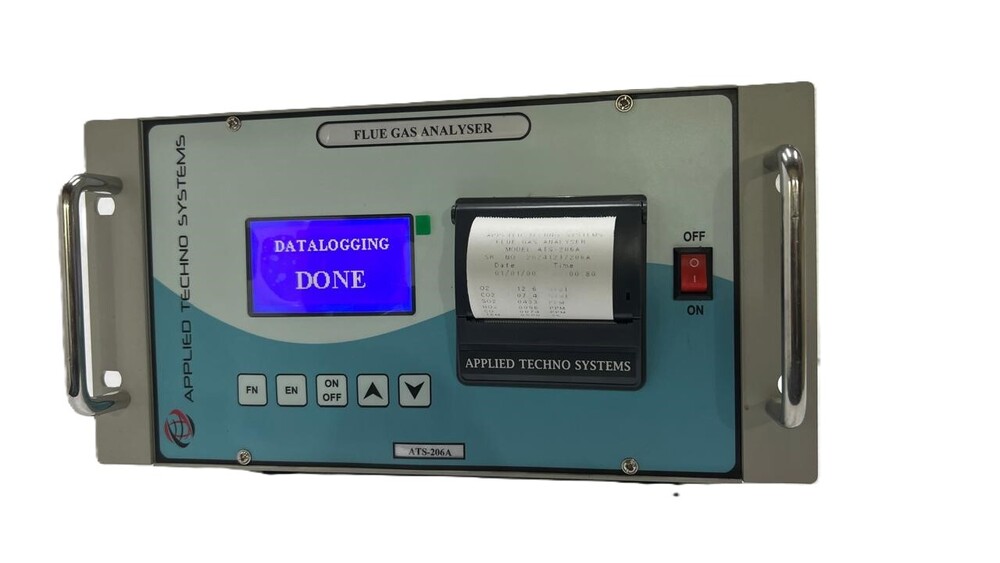

ATS Portable Stack Gas Analyzer Model ATS 206A

Price 158000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ATS Portable Stack Gas Analyzer Model ATS 206A Specification

Operate Method
Semi Automatic

Material
MS

Voltage
110-215 Volt (v)

Hardness
Yes

Automation Grade
Semi-automatic

Features
Good Quality

Usage
Industrial

Control Mode
Manual

ATS Portable Stack Gas Analyzer Model ATS 206A Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About ATS Portable Stack Gas Analyzer Model ATS 206A

ATS Portable Flue Gas Analyzer Model ATS 206A is used to masure the concentration of Flue Gases produced by the conbution process in the Applications like Stack, Furneces , Biolers & other industrial Applications.

Portable Flue Gas Analyzer ATS 206A measure O2, CO, CO2, SOx, NOx , etc.
It is a costomise instrument so that we can add other parameters as per Applications.

Gas Probes & Sampling System -Flue gas sampling probes with different lengths, shapes and max, operating temperatures Up to 1600C are available to match various requirements of different applications. A sintered pre-filter is suggested for severe and having dust loded applications.

OPERATION-On start up, the instrument automatically goes through complete integrity check, calibration cycle before displaying its readings for sampling. With the press of sampling switch, the analyzer automatically extracts the sample, analyses and display the concentrations of various gases in cyclic order. To stop or for further sampling at different locations or clearing with fresh air before switch off, one has to press the sample switch again.

Applications-
In Quality Control Labs
Process Analysis
Stack Gas Analysis
Fuel Efficiency Analysis
Furnaces Diesel/Petrol Exhaust Emission
Engine Exhaust Emission
Internal Combustion Engines
Burner Performance Monitoring
Boiler Corrosion
Ambient & Emission Monitoring
Atmosphere Monitoring
Burner Flame Control
Underground Mines
Excess Air Measurement

Specifications -

        Accuracy   : +/-2%.

        Display      : High quality 128 x 64 Graphics LCD.

        Sampling   : Auto Suction Sampling through Inbuilt Pump

        Zero Calibration: Automatic at instrument start up with fresh air sample.

        Power Supply   : Internal Battery Pack with external Charger

                              230V / 50 Hz

        Response Time: 30 seconds at 95% variation.

        Sampling probe up to 1200 Deg C

        Response Time: Maximum 20 Second at 95% variation

        Storage Temp: -20 to 45 deg C

Weight: 1.5 kg

Efficient Stack Gas Monitoring

Experience precise gas analysis with the ATS 206A, crafted for real-time stack monitoring in industrial setups. Its reliable design helps businesses maintain compliance with emissions standards while ensuring workplace safety. The semi-automatic operation allows for user-friendly interface and hands-on control, making it accessible for both new and experienced operators.

Durability That Lasts

Engineered using high-quality mild steel, the ATS 206A boasts superior durability and robust hardness. Its sturdy frame withstands industrial wear and tear, ensuring a long service life. Whether for short-term projects or prolonged use, you can rely on this analyzer to perform consistently in challenging environments.

Versatile Industrial Application

Designed for various industrial applications, the ATS 206A offers flexibility and wide usability. Its ease of operation, good quality standards, and portable design make it highly suitable for factories, power plants, and other facilities needing dependable emissions monitoring.

FAQs of ATS Portable Stack Gas Analyzer Model ATS 206A:

Q: How does the ATS 206A Portable Stack Gas Analyzer operate in industrial environments?

A: The analyzer operates semi-automatically with manual controls, allowing users to efficiently monitor and measure stack gases. It is designed for mobility, making it easy to deploy across different parts of an industrial facility for versatile emissions tracking.

Q: What are the main materials used in the ATS 206A, and how do they benefit performance?

A: Constructed with mild steel (MS), the device offers enhanced durability and toughness, enabling it to withstand the harsh conditions typical of industrial applications. Its material also helps maintain long-lasting performance and resistance to corrosion.

Q: When is the ATS 206A most effectively used?

A: This analyzer is best utilized during regular emissions monitoring, compliance checks, and maintenance cycles within industrial setups. Its robust design ensures accuracy during both continuous and periodic testing.

Q: Where can the ATS 206A be applied?

A: It is ideal for industrial settings like factories, power plants, and any facility needing stack gas analysis. Its portability allows for easy movement between emission sources within the same facility.

Q: What is the process for operating the ATS 206A Portable Stack Gas Analyzer?

A: Operation involves connecting the analyzer to the stack source, powering it within the 110-215V range, and using manual controls to initiate sampling and analysis. The semi-automatic system guides users through measurement procedures efficiently.

Q: What are the key usage benefits of this stack gas analyzer?

A: Key benefits include portability, robust durability, reliable measurement quality, and user-friendly semi-automatic operation. These features help industries achieve regulatory compliance and optimize environmental safety initiatives.

Q: How does the ATS 206A support exporters, importers, and service providers in India?

A: Its high-quality construction, reliability, and ease of operation make it a valuable asset for professionals involved in equipment export, import, manufacturing, supply, and on-site services, thereby catering to a broad range of industrial needs in India.
