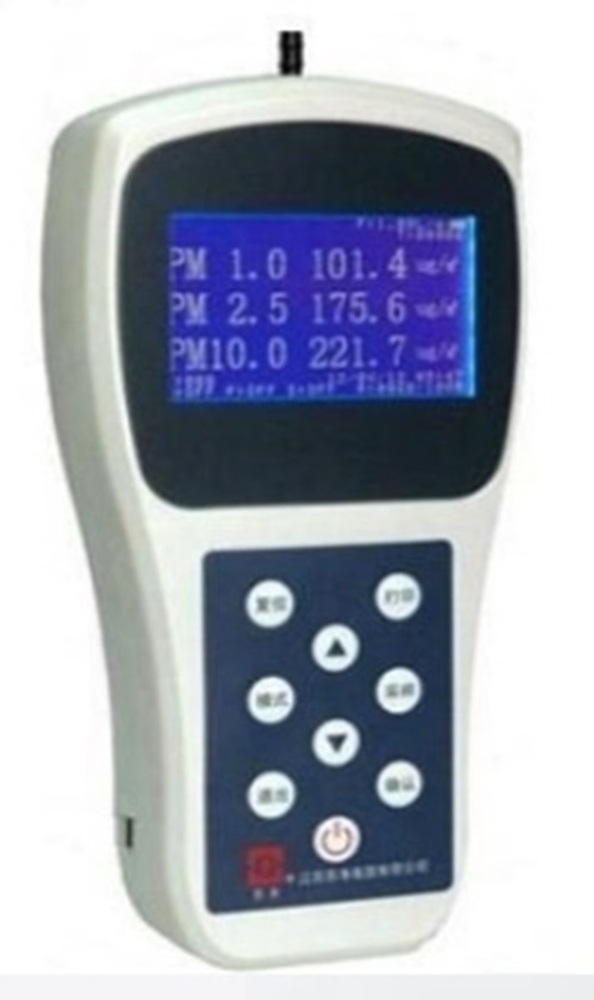

ATS-Y09 Air Quality Monitor

Price 158000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ATS-Y09 Air Quality Monitor Specification

Capacity
Built-in data logger, 1 year storage

Humidity %
10% ~ 90% RH (non-condensing)

Sensor Type
Laser Scattering (Particle), NDIR (CO2), MOS (TVOC)

Resolution
1 ug/m (Particle), 1 ppm (Gas)

Frequency
50/60 Hz

Temperature Range
-10C ~ 55C

Pressure Range
86~106 kPa

Measurement Range
PM2.5 / PM10: 0-1000 ug/m, CO2: 0-5000 ppm, TVOC: 0-10 mg/m

Flow Rate
Sampling flow 1.0 L/min

Connectivity Type
RS485, USB, WIFI (optional)

Material
ABS Plastic

Power Supply
AC 220V / DC 12V

Power Consumption
3W

Accuracy
5% FS

Display Type
LCD Digital Display

Range
0-1000 ug/m (PM2.5/PM10)

About ATS-Y09 Air Quality Monitor

Principle	Electrochemical and Light scattering
Range	PPM/PPB or mg/M3
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Diffusion, Auto Suction or Direct Plug In
Display	128 X 64 Graphics LCD
Alarm	Two Levels Low & High, Visual and Audible
Power Source	Built in Lithium Rechargeable battery
Accuracy	/2%
Response Time	<5 Second
Flow Rate	2.84 L/M
Data Storage	1000 or 10000
Sensor Life	2-3 Years
Operating Time	6 8 hours
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86- 106Kpa
Housing	High Impact Plastic
Dimension in mm	130 (W) X 220 (H) X 45(D)
Weight	0.6 KG
Warranty	One Year

Precision Monitoring for Healthier Spaces

Equipped with high-accuracy sensors, the ATS-Y09 Air Quality Monitor detects PM2.5, PM10, CO2, and TVOC levels across wide measurement ranges. This ensures real-time and reliable assessment of air quality, supporting healthy, productive indoor environments for all occupants.

Flexible Installation and Effortless Operation

The ATS-Y09 offers both wall-mounted and desktop installation, catering to varied spatial requirements. Its LCD digital display and intuitive interface make monitoring straightforward, while visual and audible alarms promptly alert users to any hazardous changes.

Comprehensive Data and Robust Connectivity

This monitor features built-in data logging with a year's storage, plus RS485, USB, and optional WiFi connections. Users can access real-time and historical data for in-depth analysis or reporting, making it ideal for compliance, facility management, and health and safety protocols.

FAQ's of ATS-Y09 Air Quality Monitor:

Q: How do I install the ATS-Y09 Air Quality Monitor?

A: The ATS-Y09 is designed for straightforward installation. It can be mounted on a wall or placed on a desktop, depending on your preference and space availability. Simply position the device in the desired indoor location, connect it to the included power adapter, and it is ready for use.

Q: What environmental parameters can the ATS-Y09 measure?

A: This air quality monitor measures PM2.5 and PM10 (0-1000 g/m3), CO2 (0-5000 ppm), and TVOC (0-10 mg/m3), displaying precise real-time and historical values on its LCD digital screen. The device also records temperature, humidity, and atmospheric pressure, offering comprehensive air environment insights.

Q: When will the alarm function activate?

A: Both visual and audible alarms will activate when measured concentrations of PM2.5, PM10, CO2, or TVOC surpass preset safety thresholds. This ensures timely awareness and prompt response to deteriorating air quality conditions.

Q: Where can the ATS-Y09 Air Quality Monitor be used effectively?

A: Ideal for use in offices, schools, hospitals, or any indoor environment, the ATS-Y09 offers robust performance under varying temperature and humidity conditions (-10C to 55C; 10%-90% RH). Its design makes it well-suited for monitoring air quality in spaces up to an operating altitude of 2000 meters.

Q: What is the process for accessing historical air quality data?

A: The ATS-Y09 features a built-in data logger that stores up to one year of air quality records. You can retrieve and analyze this data via its RS485 interface, USB port, or (optionally) through WiFi connectivity, supporting comprehensive indoor air assessments and compliance documentation.

Q: How does using this monitor benefit indoor environments?

A: Implementing the ATS-Y09 enhances occupant safety and comfort by providing timely alerts to harmful air quality changes. Continuous monitoring supports regulatory compliance and informed decision-making for improved ventilation and preventative health measures.
