Chlorine Gas Analayzer

Product Description

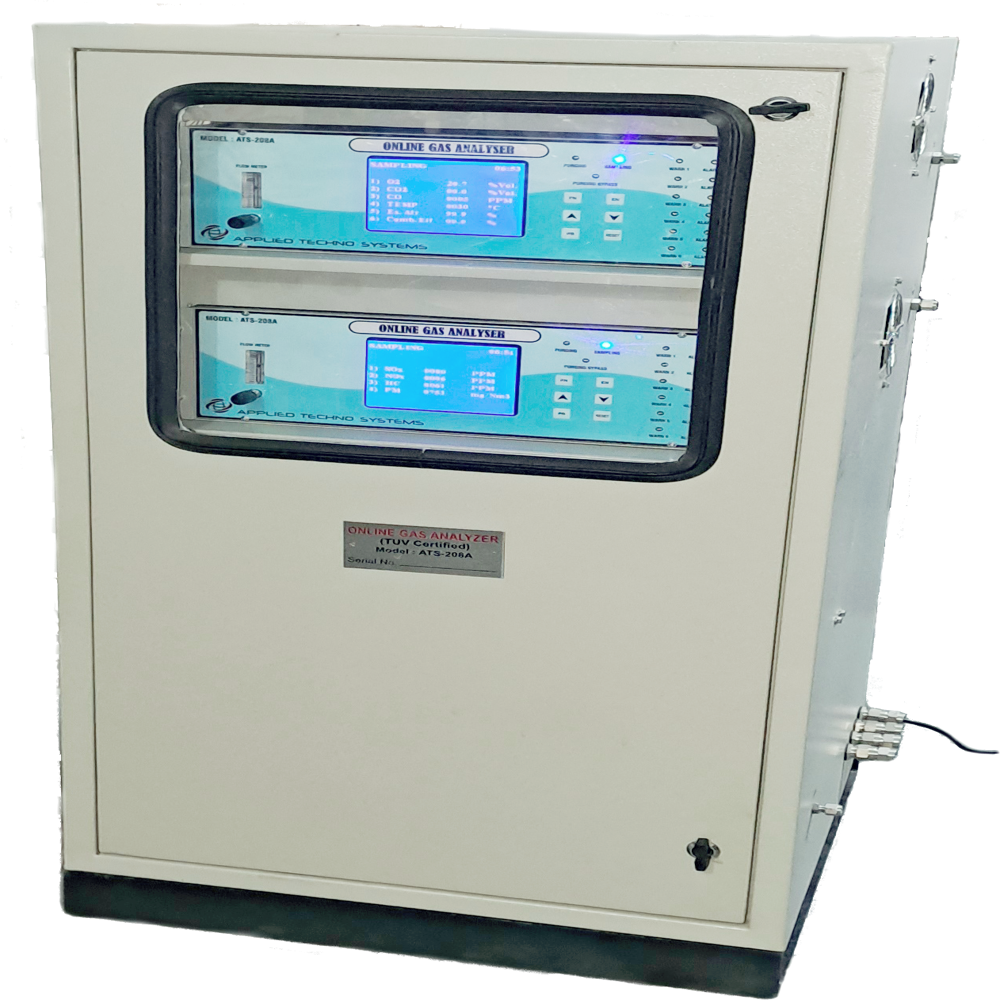

Gas Analyzer Model ATS- 208A

• Chlorine Gas Analyzer continuously monitors the concentration of Chlorine in PPM and other gases ranging from 100%V/V down to PPM level. Feature includes a duel wavelength sensor, Remote Sampling, Graphics LCD Display, adjustable level relay output for alarm and 4-20mA output for control purpose and minimal maintenance.
• Special gas sample Conditioning systems are used to clean and dry the gas sample for accurate and High performance operation. An Internal Pump draw gas sample into the sensor through a dust particle filter from an intake which can be located at distance up to 40 meter form the monitor.
• The Sensor and Electronic component are housed in tough aluminium housing

Specifications:

Principle:  Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic

• Range: %V/V, % LEL, PPM, Mg/M3
• Resolution: 0.1 Unit or 1 Unit (Application based)
• Sampling Method: Auto Suction
• Display:  320 X 264 Graphic LCD
• Alarm; Relay Contact NO+NC
• Anolog Out Put: 4-20mA
• Digital Out Put : RS 232, RS 485 and Modbus Comminication Protocol
• Power Source:230VAC
• Accuracy: +/2%
• Response Time: <5 Second
• Sensor Life: 2-3 Years
• Environmental:
• Temperature:-15degree Celsius Humidity :< 85%RH Atmosphere Pressure: 86-   106Kpa
• Dimension in mm: 430 (W) X 150(H) X 250(D)
• Weight: 2.5 KG
