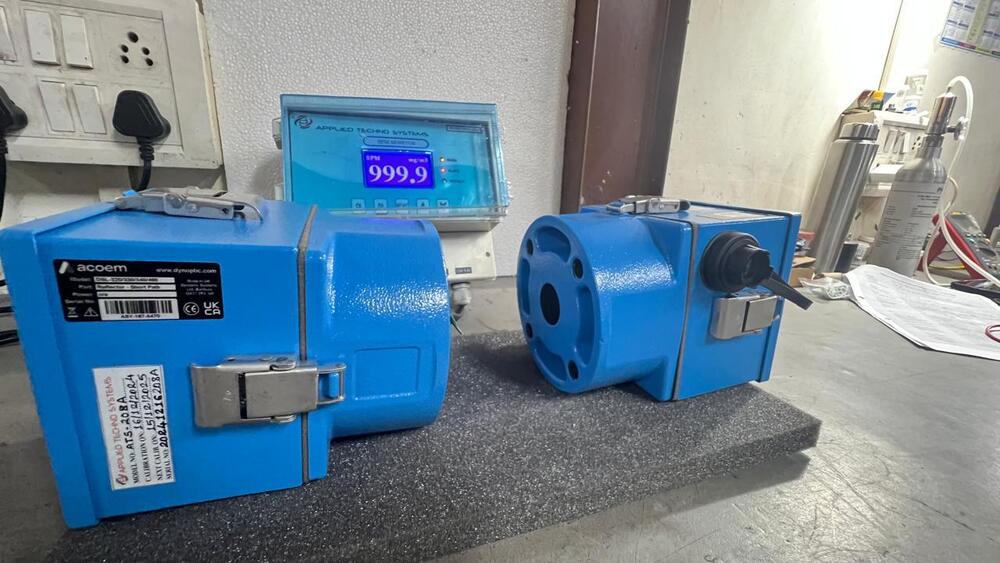

Dust Particulate Monitor DSL-340

Price 375500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Dust Particulate Monitor DSL-340 Specification

Hardness
Yes

Material
MS

Power Supply
Electric

Usage
Industrial

Voltage
110-215 Volt (v)

Operate Method
Semi Automatic

Dust Particulate Monitor DSL-340 Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About Dust Particulate Monitor DSL-340

Innovative Dynamic Detection Principle (DDP) measurement technique

Immune to gradual reductions in absolute intensity of the light signal soles susceptible to drift
Measurement reading as mg/m3 (when calibrated against standard reference measurements)
Rugged 316 stainless steel construction
Choice of interface options enabling easy integration
Free utility software for PC based set-up, control and data logging
Optional Operator Interface with different mounting configurations

Benefits:

Significantly less susceptible to drift than standard opacity monitors
Better accuracy over shorter path lengths, i.e. smaller duct diameter
Simple to install, commission and operate with an excellent reliability record
Rugged design with no moving parts so low maintenance
Latched head and lid design to enable ease of access for installation and maintenance.

Technology:

Dust Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in exhaust gas passing through a duct, stack or flue. The uses innovative Dynamic Detection Principle (DDP) which measures fluctuations in the intensity of a light beam, using a folded beam Transceiver / Reflector arrangement. Increased dust or particulate density in the stack causes the amplitude of these fluctuations to increase. When calibrated against standard reference measurements, the amplitude of this signal relates directly to the dust concentration in the stack and this can be presented as a reading in mg/m.

Applications:

Cement works
Steel plants
Air filtration processes such as electrostatic precipitators
Other industrial applications with larger particle size and relatively high dust loading.

Reliable Industrial Dust Monitoring

The DSL-340 is purpose-built to endure tough industrial environments, offering consistent performance in dust measurement. Its mild steel construction provides resilience against wear, while electric operation ensures hassle-free, semi-automatic use. This device is an excellent choice for industries seeking proactive dust control, contributing to a cleaner and safer working environment.

Comprehensive Solutions from an Experienced Provider

Manufactured and supplied by a leading exporter, importer, and service provider in India, the DSL-340 combines advanced technology with reliable after-sales support. No matter the scale of your operations, you can rely on expert guidance and maintenance services to maximize your investment and ensure compliance with industrial safety regulations.

FAQs of Dust Particulate Monitor DSL-340:

Q: How does the Dust Particulate Monitor DSL-340 work in industrial applications?

A: The DSL-340 operates semi-automatically using an electric power supply. It detects and measures dust particle concentrations in the air, allowing industries to monitor air quality and ensure adherence to environmental standards.

Q: What materials are used to construct the DSL-340, and how does this benefit its durability?

A: The monitor is constructed from mild steel (MS), known for its strength and resistance to harsh industrial conditions. This ensures the device remains reliable and long-lasting, even in demanding environments.

Q: When should the DSL-340 be used within an industrial facility?

A: The DSL-340 is recommended for continuous or periodic use whenever dust monitoring is requiredfor instance, during production, material handling, or in areas prone to high particulate levelsto maintain air quality and safety.

Q: Where can the DSL-340 be installed in an industrial setting?

A: This monitor can be installed at various points in industrial plants such as processing lines, warehouses, and emission monitoring areas, wherever real-time dust measurement is necessary.

Q: What is the operating voltage range for the DSL-340, and why is it important?

A: The DSL-340 functions within a voltage range of 110-215 Volts, making it compatible with different industrial power systems and enhancing installation flexibility.

Q: How does the semi-automatic operation of the DSL-340 simplify dust monitoring?

A: Semi-automatic operation reduces manual intervention, enabling efficient, regular data collection and analysis with minimal staff input. This streamlines compliance checks and helps maintain air quality effortlessly.

Q: What are the primary benefits of using the DSL-340 for industrial dust monitoring?

A: Using the DSL-340 helps industries maintain regulatory compliance, improve worker safety, and reduce environmental impact by providing accurate, real-time dust readings for timely interventions.
