Fixed LPG Gas Leak Detector

Name: Fixed LPG Gas Leak Detector
Brand: APPLIED TECHNO ENGINEERS PRIVATE LIMITED
Price: 25500.0 INR
Availability: InStock

Price 25500.0 INR/ Pack

Get a Price/Quote

MOQ : 1 Pack

Fixed LPG Gas Leak Detector Specification

Voltage
230 Volt (v)

Humidity
< 85% RH

Response Time
10 Seconds

Material
Mild Steel

Dimension (L*W*H)
115 X 180 X 60 Millimeter (mm)

Accuracy
0.5 %

Usage
Industrial

Color
Blue

Product Type
Gas Monitor

Sensor
Ec

Temperature
15 Celsius (oC)

Power Supply
Electric

Gas Pressure
0.85 mpa

Display
Graphic

Classification
IP 65

Type
Electronic

Fixed LPG Gas Leak Detector Trade Information

Minimum Order Quantity
1 Pack

Supply Ability
25 Packs Per Week

Delivery Time
1 Week

Sample Policy
Within a certain price range free samples are available

Packaging Details
Normal Packing With Thermocol

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Fixed LPG Gas Leak Detector

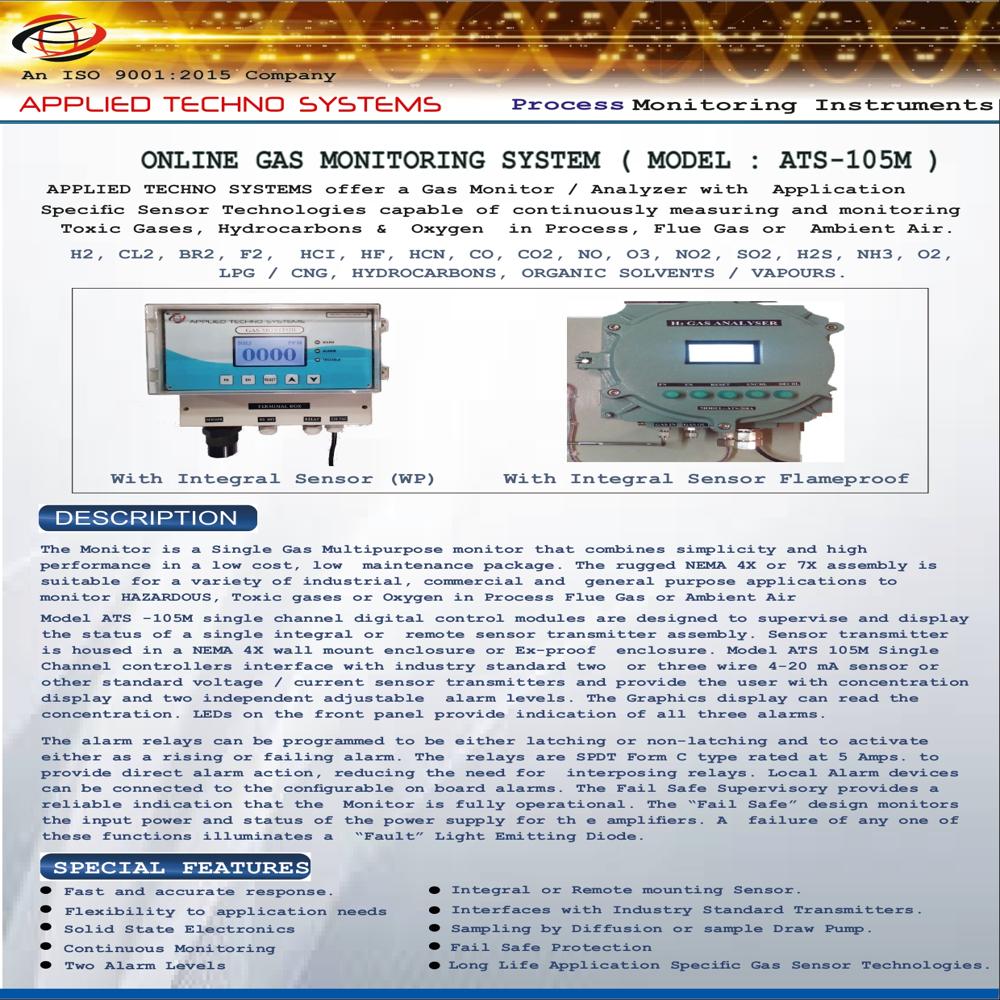

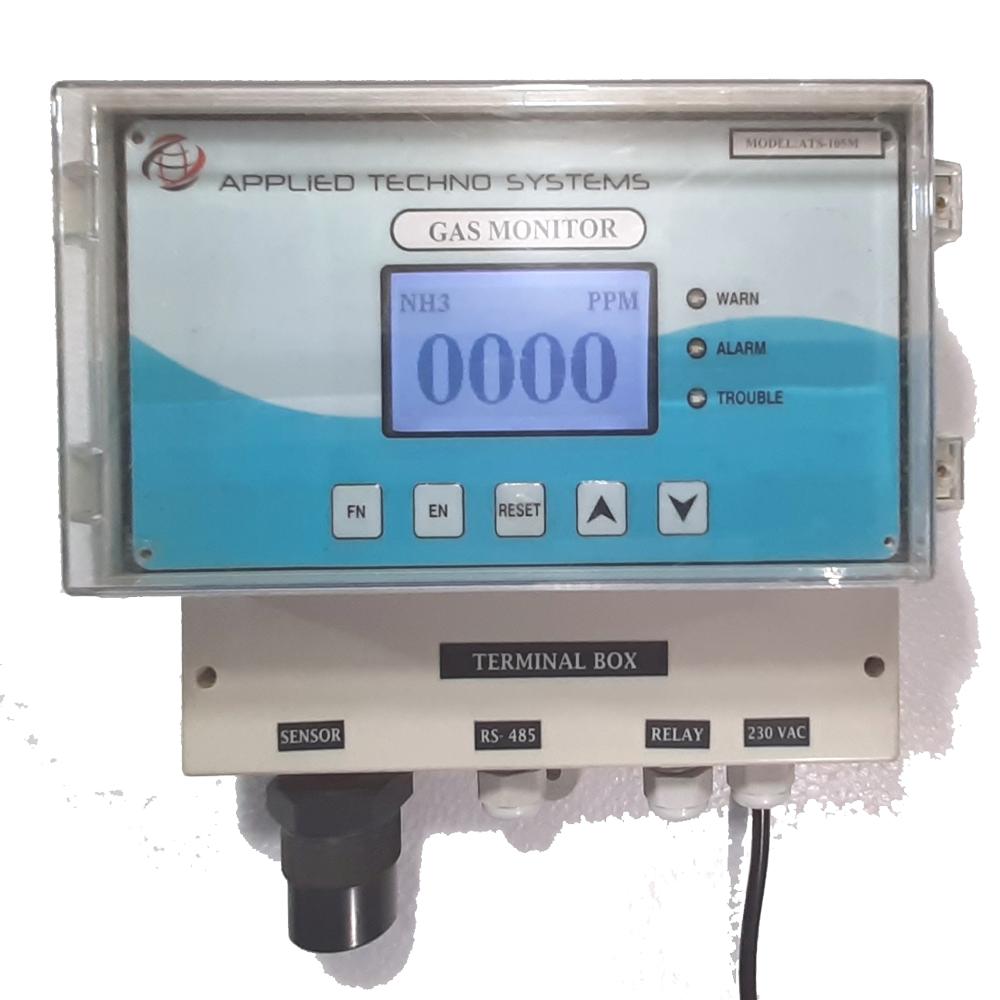

LPG Gas Leak Detector Model ATS-105M

Our LPG Gas Leak detector is a single gas multipurpose monitor that combines simplicity and high performance in a low cost ,low maintenance package . The alarm relays can be programmed to be either latching or non latching and to activate either as a rising or failing alarm.

SPECIFICATIONS:

Minimum Resolution	0.1 Unit or 1 Unit (Application based)
Range	0-100% LEL
Mounting	Wall
Sampling Method	Diffusion / sample Draw Pump
Display	Digital Continuous
Power Source	110VAC/230V AC 50Hz, 24VDCOptional
Accuracy	+/2%
Response Time	90% in 10 Second
Data Storage
Computer Interface	RS 232, USB
Analog Output	4-20mA
Sensor Life	2-3 Years
Dimensions	210 150 100 mm
Humidity	0-99% Non Condensing
Alarm Circuits	SPDT 5AMP 220V Contacts
Housing	High Impact Plastic
Warranty	One Year

Advanced Gas Leak Detection

Our Fixed LPG Gas Leak Detector offers accurate, real-time detection of LPG leaks. Engineered for industrial use, it secures your facility from potential hazards, helping to foster a safer working environment. The highly sensitive sensors activate an alert the moment leakage is detected.

Durable Construction and Design

Built with a combination of ABS plastics and mild steel, this gas leak detector is designed to withstand harsh industrial settings. Its blue color makes it instantly recognizable, and the device continues to perform reliably under conditions of up to 85% humidity.

Streamlined Installation and Maintenance

This device requires an electric power supply for operation and is designed for easy installation across various industrial environments. Our service team is available throughout India to support installation, regular maintenance, and troubleshooting.

FAQs of Fixed LPG Gas Leak Detector:

Q: How does the Fixed LPG Gas Leak Detector operate in industrial environments?

A: The detector continuously monitors the air for traces of LPG. When a leak is detected, it triggers visual and/or audible alarms, allowing for immediate response and mitigation.

Q: What materials are used in the construction of the gas leak detector?

A: This detector is constructed using high-quality ABS plastics and mild steel, ensuring both durability and long-lasting performance in industrial settings.

Q: When should the gas leak detector be serviced for optimal performance?

A: It is recommended to have the device checked and serviced semi-annually, or as advised by our service team, to maintain accuracy and ensure responsive detection.

Q: Where can this gas leak detector be installed?

A: The detector is suitable for installation in a variety of industrial spaces where LPG is stored, used, or transported, such as manufacturing facilities, warehouses, and processing plants.

Q: What is the process for installing the Fixed LPG Gas Leak Detector?

A: Installation involves mounting the device at a strategic location, connecting it to a suitable electric power supply, and calibrating the sensors as per site-specific requirements. Our technicians provide support throughout the installation process.

Q: How is the device beneficial for industrial users?

A: Using this device greatly reduces the risk of fire or explosion caused by LPG leaks, ensures compliance with safety regulations, and protects personnel and assets in the facility.
