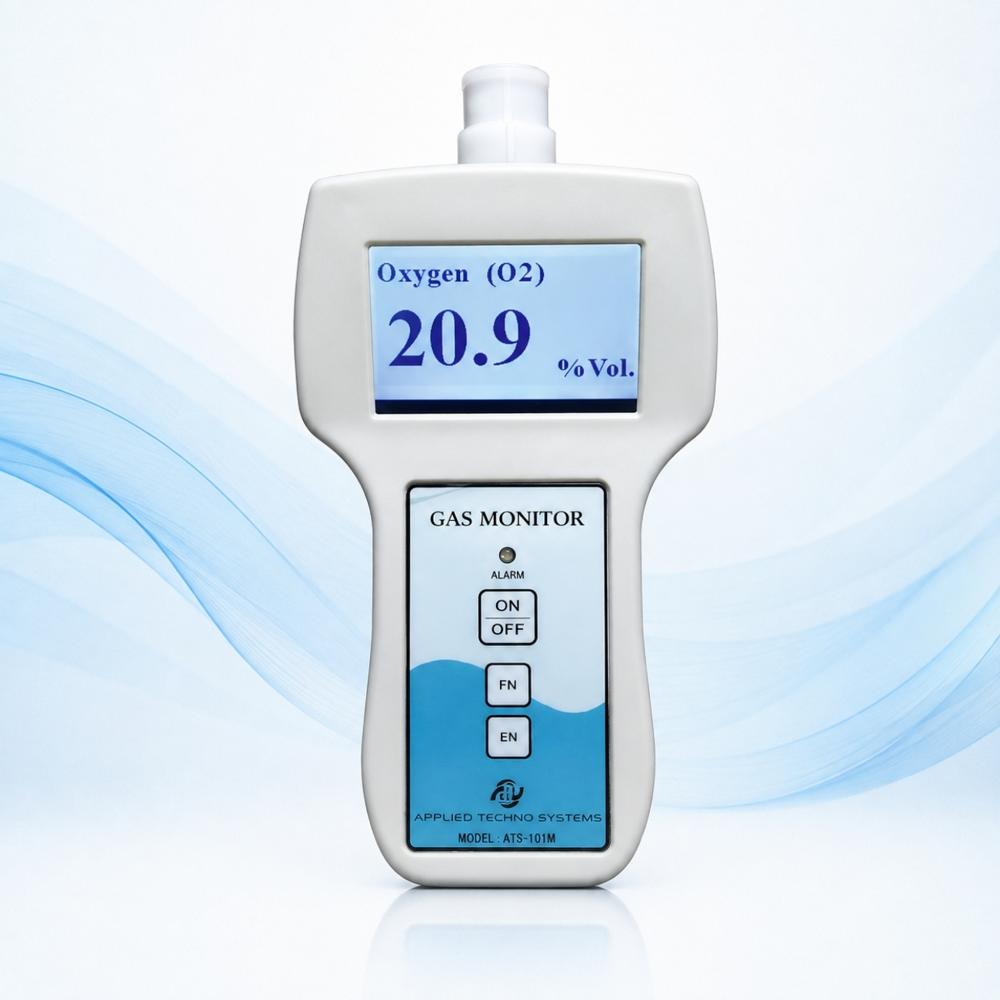

Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump
Gas Detection Monitor With Pump

Gas Detection Monitor With Pump

Price 45000.0 INR/ Piece

MOQ : 1 Piece

Gas Detection Monitor With Pump Specification

  • Port Size
  • Standard inlet for sample tubing
  • Operating Voltage
  • DC 3.7V
  • Humidity
  • 0-95% RH (non-condensing)
  • Test Range
  • 0-30% Vol for Oxygen (O2)
  • Gas Pressure
  • Atmospheric pressure
  • Interface Type
  • Digital, USB for data transfer
  • Temperature
  • -10C to +50C
  • Accuracy
  • 0.1% Vol
  • Power Supply
  • Rechargeable Li-ion battery or DC adapter
  • Response Time
  • 15 seconds
  • Automation Grade
  • Semi-Automatic
  • Mounting Type
  • Handheld
  • Application
  • Industrial Safety, Environmental Monitoring, Confined Space Gas Detection
  • Display Type
  • Large LCD Display
  • Measuring Range
  • 0-30% Vol (O2)
  • Features
  • Pump driven sample, Audible and Visual Alarm, Battery powered, Easy operation
  • Resolution
  • 0.1% Vol
  • Usage
  • Portable gas detection
  • Capacity
  • Single gas detection
  • Machine Weight
  • Approx. 350 g (excluding batteries)
  • Control Mode
  • Manual/Automatic
  • Housing Material
  • ABS Plastic
  • Model
  • ATS-101M
  • Battery Life
  • Up to 10 hours continuous operation
  • Alarm Type
  • Audible, Visual, and Vibrating Alarm
  • Sampling Method
  • Automatic pump operation
  • Data Logging
  • Yes, built-in memory for log storage
  • Equipment Type
  • Portable Gas Detection Monitor with Pump
  • Sensor Type
  • Electrochemical for O2
  • Calibration
  • User programmable calibration



About Gas Detection Monitor With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Advanced Sensing and Data Management

The ATS-101M uses an electrochemical sensor to deliver precise oxygen measurements between 0-30% Vol with 0.1% Vol accuracy and resolution. Integrated data logging and onboard memory enable users to store crucial readings, which are easily transferable via USB interface for reporting and record-keeping. This ensures data integrity and facilitates compliance with safety regulations.


Enhanced Safety Features with Robust Alarms

This monitor is equipped with audible, visual, and vibrating alarms, ensuring users are promptly alerted to hazardous O2 levels. Its alarm system, combined with a quick 15-second response time, maximizes safety in industrial, environmental, and confined space applications-providing peace of mind while on the job.


User-Friendly Design for Demanding Environments

Constructed from durable ABS plastic and weighing approximately 350 grams, the ATS-101M is convenient for handheld use and rugged enough to withstand tough environments. Featuring up to 10 hours of continuous operation, a simple interface, automatic pump sampling, easy calibration, and the option for manual or automatic operation, this detector is optimized for busy industrial professionals.

FAQ's of Gas Detection Monitor With Pump:


Q: How does the ATS-101M Portable Gas Detection Monitor take gas samples?

A: The monitor employs an automatic pump-driven sampling method, drawing ambient air through sample tubing into the sensor for reliable and continuous oxygen measurement.

Q: What benefits does the data logging feature provide for users?

A: Integrated data logging allows users to store O2 measurement records directly in the monitor's built-in memory, enabling easy data retrieval and compliance documentation through the digital USB interface.

Q: When should the device be calibrated and is the process user-friendly?

A: Regular calibration is recommended as per operational protocols or regulatory standards. The device enables user-programmable calibration, making it straightforward to maintain accurate readings without specialized tools.

Q: Where can the ATS-101M be effectively utilized?

A: This portable monitor is well-suited for industrial safety, environmental monitoring, and confined space gas detection-anywhere precise and dependable oxygen level monitoring is essential.

Q: What is the duration of battery life, and how is the device powered?

A: The ATS-101M offers up to 10 hours of continuous operation on a rechargeable Li-ion battery, and can also be powered using a DC adapter for extended use.

Q: How do the alarm systems contribute to workplace safety?

A: The combination of audible, visual, and vibrating alarms ensures workers are alerted to hazardous O2 levels quickly, even in noisy or visually obstructed environments, thus helping prevent accidents.

Q: What is the process for retrieving stored data from the monitor?

A: Stored data can be accessed and transferred via the USB digital interface, making it convenient to download logs for analysis or regulatory reporting.
