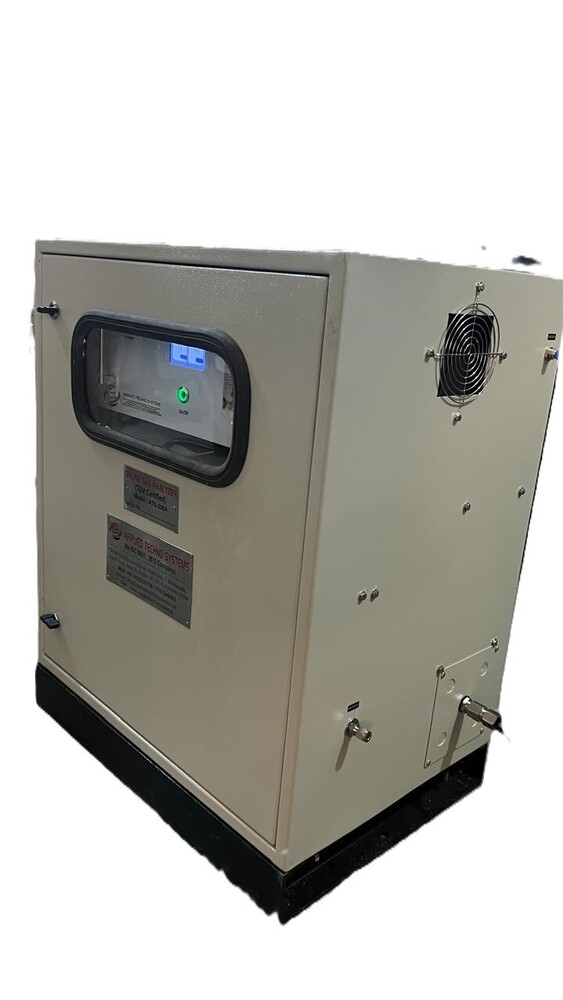

Online Continuous Stack Emission Monitoring Systems Model ATS 208A

850000 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Online Continuous Stack Emission Monitoring Systems Model ATS 208A Price And Quantity

Minimum Order Quantity 1 Unit
Price 850000 INR/Unit
Price Range 850000.00 - 850000.00 INR/Unit

Product Description

Model ATS-208A** is an advanced Online Continuous Stack Emission Monitoring System (CEMS) designed for real-time monitoring of critical air pollutants emitted from industrial stacks, flue gas ducts, and exhaust systems. It ensures compliance with CPCB, EPA, and international emission standards, helping industries control pollution and meet regulatory obligations.

âš™ï¸ Technical Specifications:

Parameter	Details
Model Number	ATS-208A
Measured Gases	SOâ‚‚, NOx, CO, COâ‚‚, Oâ‚‚, NHâ‚ƒ, HCl, VOCs (customizable)
Technology	NDIR, UV-DOAS, Zirconia, Electrochemical (as per gas type)
Measurement Range	Configurable per gas (ppm or mg/NmÂ³)
Oxygen Measurement	Zirconia Sensor / Paramagnetic Analyzer
Dust/Particulate Monitoring	Optional â€“ via Optical or Triboelectric Sensors
Sampling System	Heated extractive system with probe, filter, and cooler
Calibration	Automatic / Manual â€“ Zero & Span Calibration
Output	4â€“20 mA, RS-485, Modbus, TCP/IP, Relay Outputs
Display	7â€ Touchscreen HMI / Industrial Panel PC
Data Logging	Built-in + cloud/remote server interface
Power Supply	230V AC / 50Hz
Enclosure	IP65 / Flameproof enclosure for Zone 2 (optional)
Compliance	CPCB Guidelines / USEPA 40 CFR Part 60/75

ðŸ§° System Features:

âœ… Multi-gas real-time emission monitoring
ðŸ”¥ High-temperature resistant sampling probe
ðŸ“Š Data logging with real-time graphical trend
ðŸ“ Automated report generation for authorities
ðŸŒ Remote access and diagnostics via Ethernet/Cloud
ðŸ”§ Self-cleaning and auto-calibration capabilities
ðŸ“œ Compliance-ready with Zone 2 IEC standards

ðŸ Applications:

âš™ï¸ Thermal power plants
ðŸ Cement and Steel industries
ðŸ”¥ Incinerators and waste-to-energy plants
ðŸ›¢ï¸ Refineries and Petrochemicals
ðŸ§ª Chemical and Fertilizer units
ðŸŒ¾ Pulp and Paper industries
