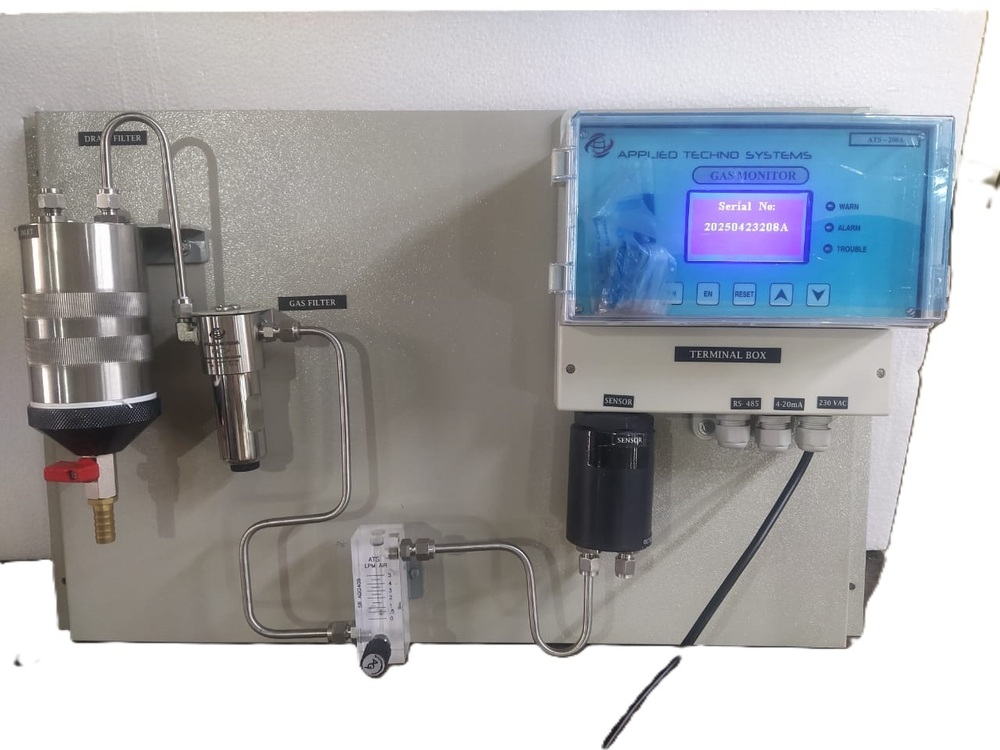

Online HCL Gas Analyzer Model ATS 208A

Price 375500 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Online HCL Gas Analyzer Model ATS 208A Specification

Material
MS

Voltage
110-215 Volt (v)

Hardness
Yes

Automation Grade
No

Features
Good Quality

Mounting Type
Handheld or tripod

Operate Method
Semi Automatic

Power Supply
Electric

Usage
Industrial

Online HCL Gas Analyzer Model ATS 208A Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About Online HCL Gas Analyzer Model ATS 208A

The Applied Online HCL Gas Analyzer Model ATS 208A with digital read out and alarms is a direct reading. Gas Analyzer, designed to serve the demanding field requirements of various gases Producing and using Industry. It is designed to replace the cumbersome and time consuming Or set apparatus and provide quick and accurate reading of gas Purity. It offers the user a distinct advantage in terms of economy, dependability maintenance and ease of operation. The instrument incorporate TCD / INFRARED/Electrochemical as a transducer.

SPECIFICATIONS
1-Process Monitoring Instruments Range : 0 - 100% V/V.0 to 50,100,1000PPM
2-Minimum Resolution : 0.01 %
3-Readout : 128 X 64 Graphics LCD Display
4-Sampling Method : In Built Suction Pump
5-Detection Principle : Thermal Conductivity / Infrared/Electrochemcial

6-Accuracy : +/- 0.1% of Full Scale.
7-Response Time : Less than 10 Seconds. Warm Up Time : 1 Minute.
8-Dimensions : 430(W) X 150(H) X 250(D)mm.
9-Accessories : Flow Meter,
10-Warranty : One Year. Analog Output : 4-20mA
11-Digital Output : RS 232, RS 485,Relay output

Easy Semi-Automatic Operation

The ATS 208A provides a user-friendly, semi-automatic operating method. Users can conveniently monitor HCL gas levels with minimal intervention, ensuring efficient processes in demanding environments while reducing time and effort during operation.

Versatile Mounting Options

This analyzer supports both handheld and tripod mounting, enhancing its adaptability for different sites. Whether used in plant maintenance or for fixed-point measurements, the device is engineered for mobility and stability.

Engineered for Industrial Conditions

Built with MS (Mild Steel) and engineered to withstand industrial hardness, the ATS 208A ensures lasting quality and performance. Its voltage versatility and durable construction allow it to excel in various power conditions and challenging locations.

FAQs of Online HCL Gas Analyzer Model ATS 208A:

Q: How does the ATS 208A HCL Gas Analyzer operate?

A: The ATS 208A operates semi-automatically, requiring minimal user intervention while still allowing for manual adjustment if needed. Simply connect the device using the required power supply, position it via handheld or tripod mounting, and select the measurement settings to begin analysis.

Q: What are the main benefits of using the Online HCL Gas Analyzer ATS 208A?

A: This analyzer offers quick, accurate detection of hydrogen chloride gas, ensuring workplace safety and compliance with industrial standards. Its semi-automatic features and versatile mounting options enhance ease of use and efficiency in various industrial applications.

Q: When should the ATS 208A be used for gas detection?

A: The ATS 208A is ideal for use whenever regular or spot-check monitoring of HCL gas is required in industrial environments. It is particularly useful during maintenance operations, emissions monitoring, or when pinpointing potential leaks.

Q: Where can the ATS 208A be mounted during operation?

A: The analyzer can be employed handheld for mobile measurements or fixed onto a tripod for steady, long-term monitoring. This flexibility makes it suitable for both rapid assessments and prolonged observations within industrial facilities.

Q: What is the process for operating the ATS 208A HCL Gas Analyzer?

A: Set up the device by connecting it to an electric supply (110215V). Choose your preferred mounting method, power on the instrument, and follow the semi-automatic prompts to calibrate and measure HCL gas concentrations as needed.

Q: How is the ATS 208A maintained for optimal performance?

A: Routine maintenance involves periodic cleaning of the exterior, checking connections, and occasional recalibration according to the manufacturers guidelines to ensure continuous and accurate performance in industrial settings.
