Portable Producer Gas Analyzer

Product Description

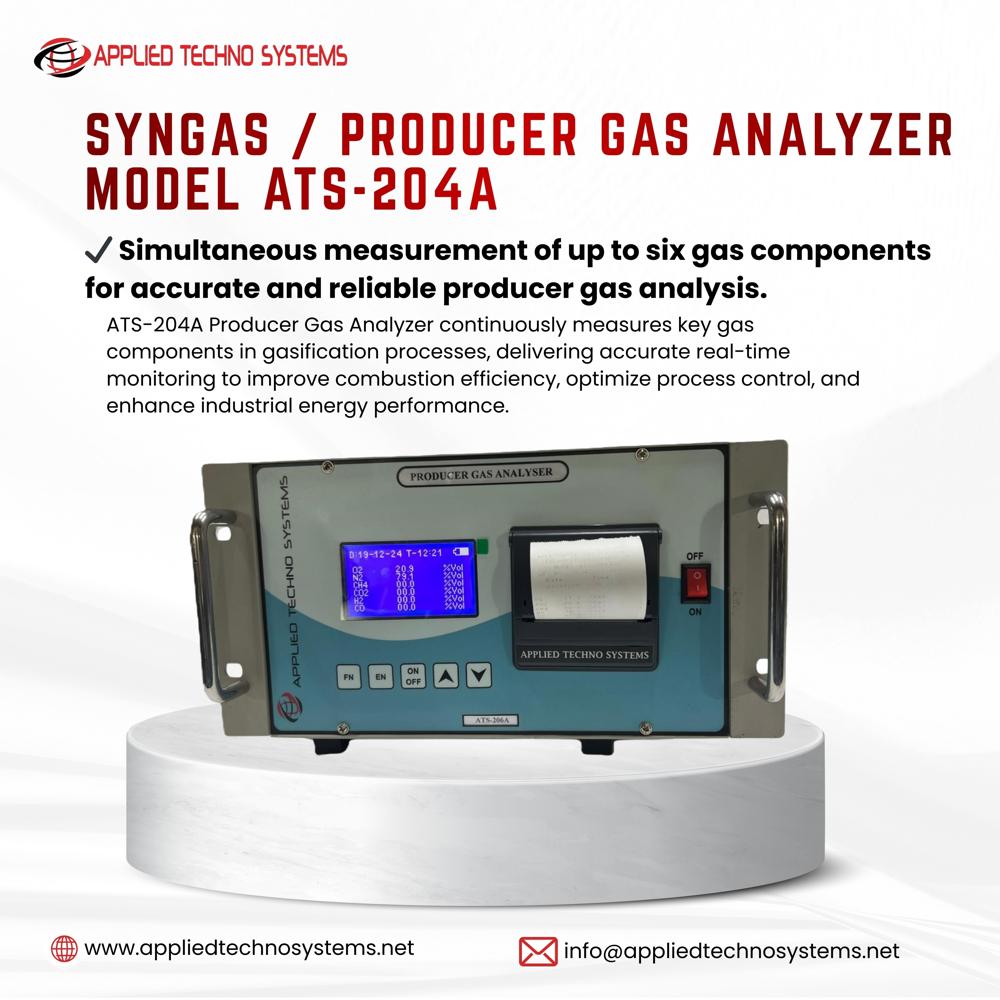

Portable Producer Gas Analyze Model ATS-204A

Applied Techno Systems manufactures Producer Gas Analyzer   Model ATS 204A with sample conditioning system has been designed considering measurement of CO, CO2 and CH4 . In addition, the analyzer can also be supplied with a non-consumable, long-life thermal conductivity cell for H2 that compensates for the interference effects of CO, CO2 and CH4 .This ensures that H2 will always read correctly regardless of the background gas composition. Paramagnetic sensor can be used for O2 analysis as an option.

All sensors are temperature-compensated for maximum analytical stability. the flexibility required in the environments that characterize syn gas and bio-mass applications. The analyzer uses high-stability infrared sensors for the simultaneous

Specification

• Method of Detection : Dual Beam NDIR sensor for CO, CO and CH 2 4
• Electrochemical sensor for O (Paramagnetic sensor as option) 2
• Thermal conductivity cell for H2
• Ranges Available: : O 0-25.0%, 0-50.0%, 0-100.0% 2
• H 0-5.0%, 0-50.0%, 0-100.0% 2
• CO 0-10.0%, 0-50.0%, 0-100.0%
• CO 0-10.0%, 0-50.0%, 0-100.0% 2
• CH 0-50.0%, 0-100.0% 4
• Resolution : 0.01% for all gases
• Accuracy & Repeat-ability : ± 1% of reading for all gases
• Drift : Less than 2% of full scale per month
• Response Time (T-90) : 20-30 seconds to 90% step change
• Ambient Temperature Range : -5 to 55° C
• Power Supply : 220 VAC 50 Hz
• Output Options :MODBUS
