Portable syn Gas analyser

About Portable syn Gas analyser

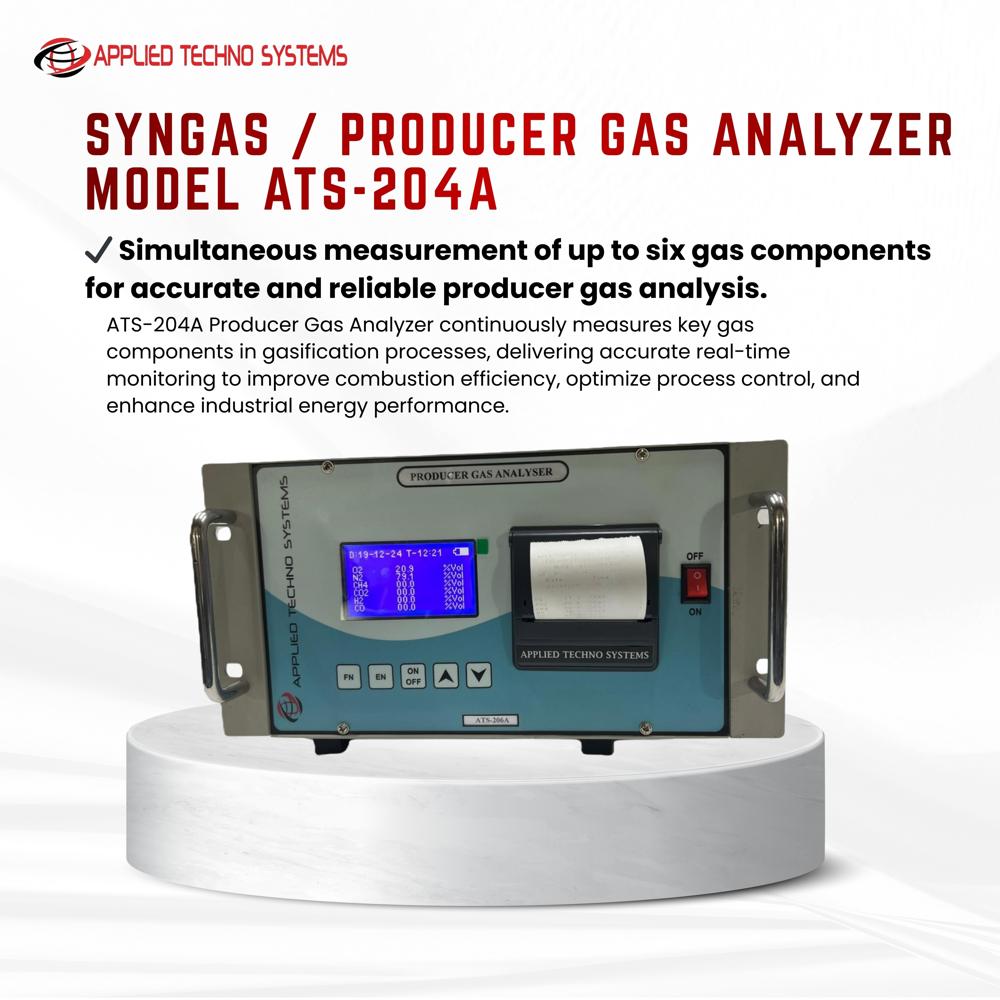

The 204A Portable Syngas Analyzer is a compact and high-performance instrument designed for on-site analysis of synthesis gas (syngas) in gasification and biomass applications. It enables simultaneous measurement of multiple gas components including CO, CO, CH, O, H, and N, providing accurate and real-time data for process monitoring and optimization.

Utilizing advanced sensing technologies such as NDIR (Non-Dispersive Infrared) for CO, CO, and CH, Thermal Conductivity Detector (TCD) for hydrogen, and electrochemical or optional paramagnetic sensors for oxygen, the analyzer ensures reliable performance with excellent stability. Its portable design, combined with an inbuilt suction pump and integrated sampling system, makes it ideal for field use in gasifiers, pilot plants, and research facilities.

With features like USB communication, data logging, automatic calibration, and robust construction, the 204A Portable Syngas Analyzer offers a dependable and efficient solution for accurate gas analysis in demanding industrial environments.

Key Features

• Portable design for on-site syngas analysis
• Simultaneous measurement of up to 6 gases (CO, CO, CH, O, H, N)
• Advanced sensing technologies (NDIR + TCD + Electrochemical/Paramagnetic)
• High accuracy with long-term stability
• Inbuilt auto suction pump for sample extraction
• Integrated sampling system with moisture and dust removal
• Fast response time for real-time monitoring
• USB communication with data logging facility
• Automatic calibration and alarm options
• Low maintenance and extended sensor life

Basic Technical Specifications

• Model: 204A
• Type: Portable Syngas Analyzer
• Gases Measured: CO, CO, CH, O, H, N
• Technology:
  • NDIR (CO, CO, CH)
  • Thermal Conductivity (H)
  • Electrochemical / Paramagnetic (O)
• Measurement Range: Customizable (up to 0100%)
• Resolution: 0.01%
• Accuracy: 2% of reading
• Response Time (T90): < 30 seconds
• Display: 128 64 Graphic LCD
• Sampling: Inbuilt suction pump with conditioning system
• Output/Communication: USB, RS485, 420 mA (optional)
• Power Supply: Rechargeable Battery / 1224 VDC / 230 VAC
• Operating Temperature: -5C to 55C
