SO2 Gas Analyzer

Name: SO2 Gas Analyzer
Brand: APPLIED TECHNO ENGINEERS PRIVATE LIMITED
Price: 328500.0 INR
Availability: InStock

Price 328500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SO2 Gas Analyzer Specification

Temperature
15 Reaumur (oRe)

Weight
2.5 Kilograms (kg)

Accuracy
+2 %

Response Time
10 Seconds

Dimension (L*W*H)
430 X 150 X 250 Millimeter (mm)

Power Supply
Electric

Humidity
< 85%RH

Application
Industrial

Product Type
Gas analyzer

Usage
Industrial

Resolution
0.01%

Classification
IP 65

Voltage
230 Volt (v)

Display Type
Graphic

Machine Weight
50 Kilograms (kg)

Control Mode
Manual

SO2 Gas Analyzer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai

Supply Ability
50 Pieces Per Week

Delivery Time
1 Week

Sample Policy
Within a certain price range free samples are available

Packaging Details
Normal packing with thermocol

Main Export Market(s)
South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America, North America

Main Domestic Market
All India

About SO2 Gas Analyzer

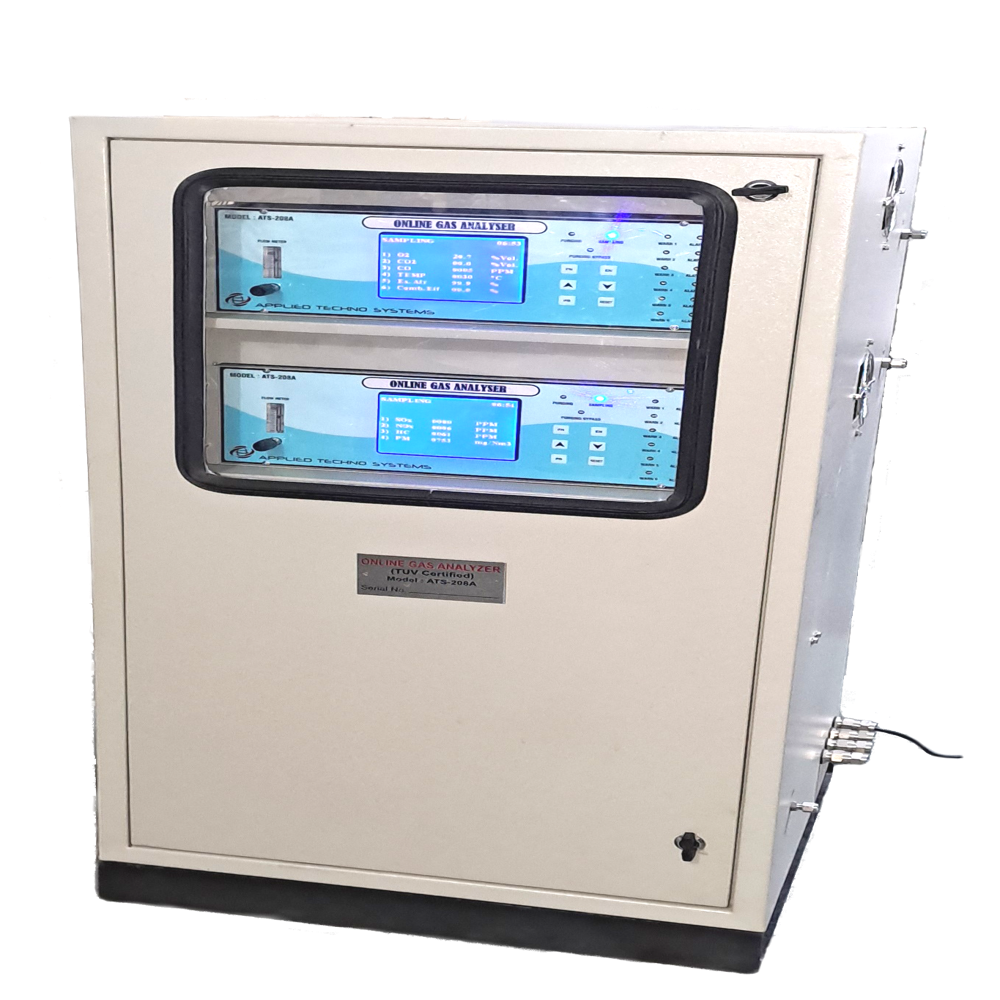

SO2 Gas Analyzer Model ATS-208A

We have gained tremendous success in the international market for offering superior quality SO2 Gas Analyzer. This analyzer is manufactured by utilizing quality approved components and cutting-edge technology in sync with international norms. Offered analyzer is widely used for monitoring the source emissions for harmful gaseous from furnaces, boilers, incinerators and other industrial processes. Our clients can purchase this SO2 Gas Analyzer from us in standard as well as customized options.

Features:

Low energy consumption
Durable finish standards
Longer service life
Compact design

Description :-

Model ATS- 208A Emission Analyzer continuously monitors the concentration of gases ranging from 100%V/V down to PPM level. Feature includes a duel wavelength sensor, Remote Sampling, Graphics LCD Display, adjustable level relay output for alarm and 4-20mA output for control purpose and minimal maintenance.
Special gas sample Conditioning systems are used to clean and dry the gas sample for accurate and High performance operation. An Internal Pump draw gas sample into the sensor through a dust particle filter from an intake which can be located at distance up to 40 meter form the monitor.
The Sensor and Electronic component are housed in tough aluminium housing.

Specification :-

Principle	Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic
Range	%V/V, % LEL, PPM, Mg/M3
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Auto Suction
Gas Sampling Probe	Dia 8mm SS 316
Display	320 X 264 Graphic LCD
Alarm	Relay Contact NO+NC
Anolog Out Put	4-20mA
Digital Out Put	RS 232, RS 485 and Modbus Comminication Protocol
Power Source	230VAC
Accuracy	+/2%
Response Time	<5 Second
Data Storage	5000 or 10000
Computer Interface	RS 232, USB, RS485
Sensor Life	2-3 Years
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86- 106Kpa
Dimension in mm	430 (W) X 150(H) X 250(D)
Weight	2.5 KG
Warranty	One Year

Advanced Measurement Performance

Utilizing state-of-the-art detection technology, this SO2 Gas Analyzer delivers reliable and accurate readings with an impressive 2% margin. The device supports rigorous standards in industrial processes to enhance safety, environmental protection, and regulatory compliance.

Robust Design for Industrial Applications

Its sturdy casing, thoughtfully designed dimensions, and resistance to humidity (below 85% RH) make it suitable for harsh industrial environments. The analyzers manageable weight of 2.5 kg allows effortless relocation or mounting as operational demands shift.

FAQs of SO2 Gas Analyzer:

Q: How do I operate the SO2 Gas Analyzer in industrial settings?

A: Simply connect the analyzer to a 230V electric supply, maintain the ambient temperature at 15 Reaumur, and ensure humidity stays below 85% RH. Once powered, the device is ready to sample air and display SO2 concentrations directly.

Q: What types of industries commonly use this SO2 Gas Analyzer?

A: Industries such as manufacturing, environmental monitoring, chemical production, and energy plants frequently utilize this analyzer to strictly monitor sulfur dioxide levels for safety and regulatory adherence.

Q: When is it necessary to calibrate or service the SO2 Gas Analyzer?

A: Calibration and servicing are recommended at regular intervals, as per the manufacturers guidance, or whenever the readings appear inconsistent. This ensures continued accuracy within the 2% specification.

Q: Where should the SO2 Gas Analyzer be installed for optimal performance?

A: The analyzer should be set up in locations with stable temperatures (15 Reaumur) and humidity below 85%. Avoid direct exposure to corrosive substances, excessive dust, or extreme environmental conditions for best results.

Q: What is the process for measuring SO2 using this analyzer?

A: The analyzer samples the ambient air and detects sulfur dioxide concentration, offering real-time readings through its precise sensor technology. Results are displayed, allowing users to monitor and record data efficiently.

Q: What are the main benefits of using this SO2 Gas Analyzer?

A: Key benefits include high measurement accuracy, portability due to compact size and light weight, easy integration into various setups, and dependable operation in challenging industrial environments.
