Product Description

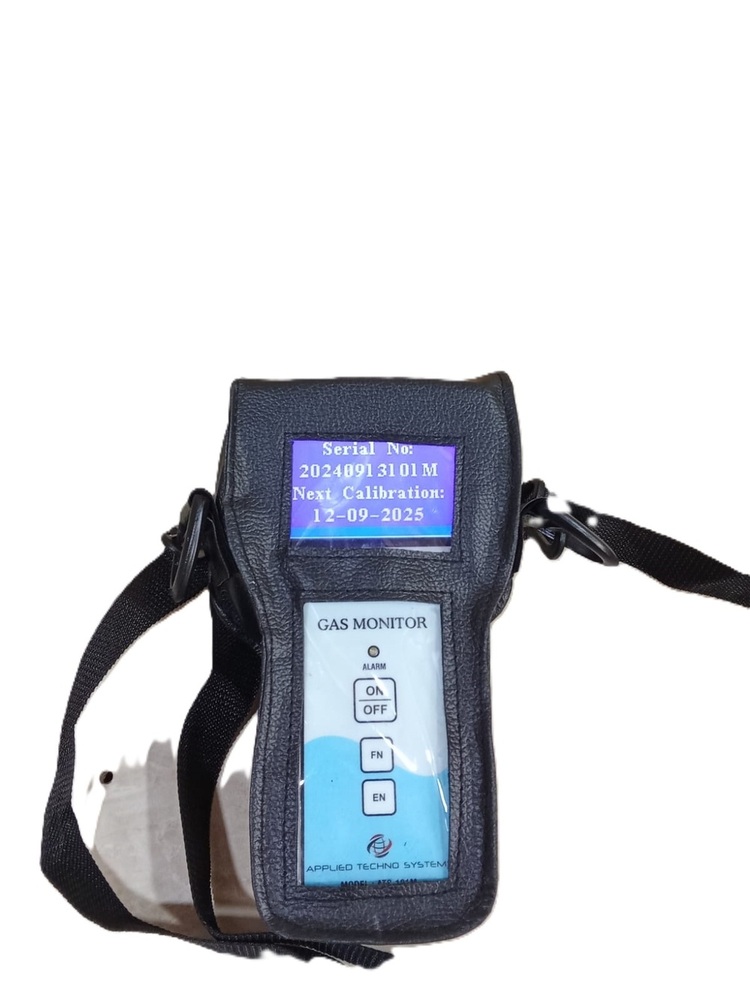

ATS-101M Hydrogen Gas Detector is Portable Single Gas Detectors are capable of detecting, monitoring Hydrogen and Combustible gases making them ideal for use in various environments.
Specifications:
- Principle: Electrochemical, Solid State Semiconductor
- Range: %V/V, %LEL, PPM, PPB or mg/M3
- Resolution: 0.1 Unit or 1 Unit (Application based)
- Sampling Method: Diffusion, Auto Suction or Direct Plug In
- Display: 128 X 64 Graphics LCD
- Alarm; Two Levels Low High, Visual and Audible
- Power Source: Built in Lithium Rechargeable battery
- Accuracy: +/2%
- Response Time: <5 Second
- Flow Rate: 2.84 L/M
- Data Storage: 1000 or 10000
- Sensor Life: 2-3 Years
- Operating Time: 6 - 8 hours
Environmental:
- Temperature:-15degree Celsius
- Humidity :< 85%RH
- Atmosphere Pressure: 86- 106Kpa
- Housing: High Impact Plastic
- Dimension in mm: 115 (W) X 180 (H) X 60(D)
- Weight: 0.6 KG
- Warranty: One Year
