Gas Detection Instrument
Gas Detection Instrument
Gas Detection Instrument
Gas Detection Instrument
Gas Detection Instrument
Gas Detection Instrument

Gas Detection Instrument

Price 48000.0 INR/ Piece

MOQ : 1 Piece

Gas Detection Instrument Specification

  • Mounting Type
  • Portable Handheld
  • Automation Grade
  • Semi-automatic
  • Response Time
  • <30 seconds
  • Operating Voltage
  • 3.7V rechargeable battery
  • Port Size
  • Standard gas inlet (approx. 5 mm)
  • Features
  • Simultaneous multi-gas detection, audible & visual alarms, real-time display, high sensitivity, durable design
  • Interface Type
  • USB charging port
  • Equipment Type
  • Multi-gas Detector
  • Power Supply
  • Rechargeable Lithium Battery, USB charging
  • Resolution
  • CH4: 0.1%LEL, O2: 0.1%VOL, CO: 1PPM, H2S: 0.1PPM
  • Gas Pressure
  • Atmospheric Pressure
  • Temperature
  • -20C to +50C
  • Specimen Size
  • Portable handheld instrument
  • Hardness
  • Impact-resistant ABS plastic housing
  • Application
  • Industrial Safety, Confined Spaces, Mining, Petrochemical, Environmental Monitoring
  • Frequency
  • Continuous real-time monitoring
  • Display Type
  • LCD screen
  • Measuring Range
  • CH4: 0-100%LEL, O2: 0-30%VOL, CO: 0-1000PPM, H2S: 0-100PPM
  • Humidity
  • 0% - 95% RH (non-condensing)
  • Test Range
  • Multiple Gases: CH4 (Methane) 0-100%LEL, O2 (Oxygen) 0-30%VOL, CO (Carbon Monoxide) 0-1000PPM, H2S (Hydrogen Sulfide) 0-100PPM
  • Max Height
  • 16 cm
  • Number of Specimens
  • Single device (Multiple gas sensors)
  • Accuracy
  • 5% of reading
  • Usage
  • Gas concentration monitoring, safety alarms
  • Capacity
  • Simultaneous detection of 4 gases
  • Machine Weight
  • Approximately 300g
  • Test Speed
  • Instantaneous (Real-Time Monitoring)
  • Control Mode
  • Manual / Button Controls
  • Color
  • Yellow & Black
  • Protection Rating
  • IP65 Dust and Water Resistant
  • Calibration
  • User calibratable
  • Sensor Type
  • Electrochemical & Catalytic Sensors
  • Battery Life
  • Up to 12 hours continuous use
  • Dimensions
  • 160 x 75 x 40 mm
  • Data Storage
  • Built-in memory for event logs
  • Operating Principle
  • Continuous diffusion sampling
  • Alarm Type
  • Audible, Visual, Vibrating
  • Sensor Lifespan
  • 2-3 years typical
  • Language Support
  • Multi-language display
  • Sampling Method
  • Diffusion (Optional: Pumped)
  • Alarm Thresholds
  • User programmable



About Gas Detection Instrument

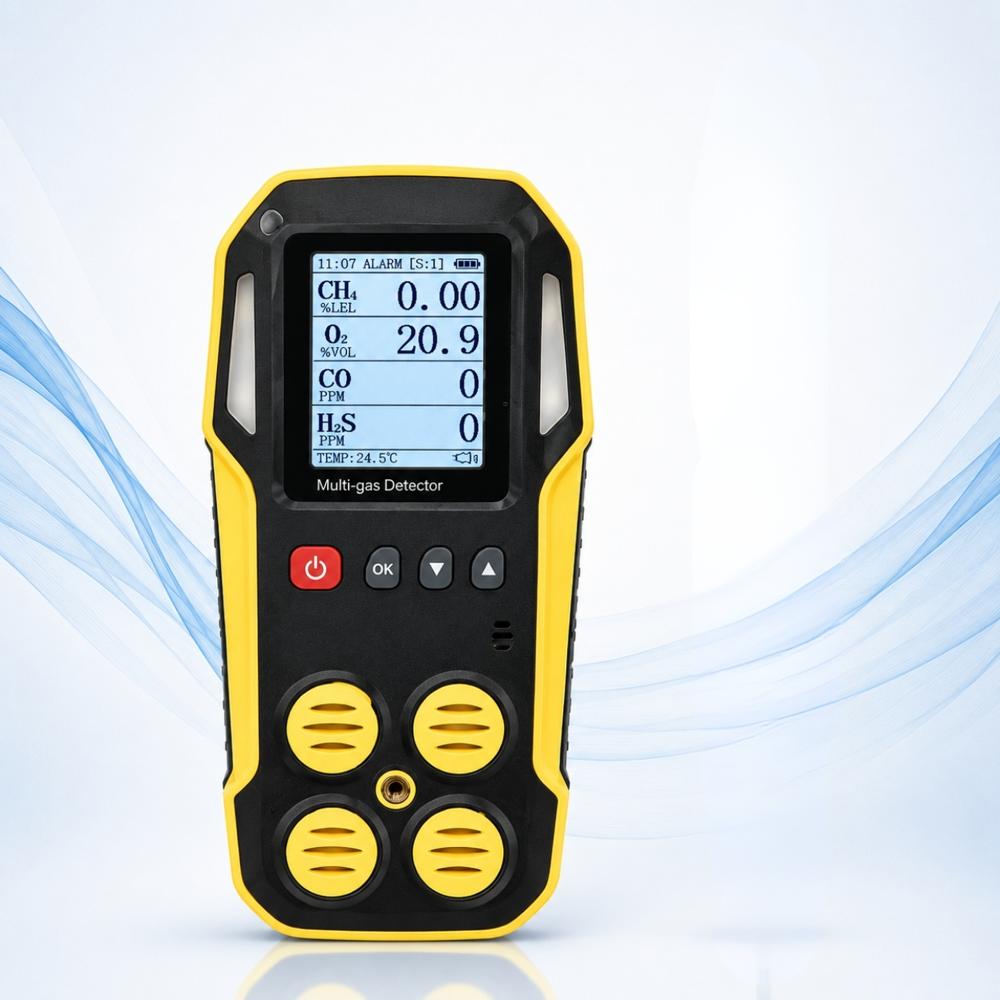

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Real-Time Gas Monitoring

Rely on this advanced multi-gas detector for simultaneous, real-time measurements of methane, oxygen, carbon monoxide, and hydrogen sulfide. With a test range suited to a variety of industrial applications, this instrument ensures workers remain safe, alerting them instantly when hazardous gas levels are detected.


Rugged and User-Friendly Design

Engineered with an impact-resistant ABS plastic housing and IP65 dust and water resistance, the detector is ideal for challenging environments. Its portable, handheld design, combined with manual button controls and a multi-language LCD display, offers convenience and intuitive operation in the field.


Enhanced Safety and Data Integrity

This device features user-programmable alarm thresholds for audible, visual, and vibrating alerts, maximizing situational awareness. Event logs are securely stored in the internal memory, and the user-calibratable sensors provide peace of mind, ensuring continued accuracy and regulatory compliance.

FAQ's of Gas Detection Instrument:


Q: How does the multi-gas detector notify users of dangerous gas levels?

A: The detector employs audible, visual, and vibrating alarms that activate when gas concentrations exceed user-programmed thresholds, ensuring immediate attention in noisy, dim, or physically restrictive environments.

Q: What is the typical battery life, and how is the device recharged?

A: The device delivers up to 12 hours of continuous operation on a full charge, powered by a rechargeable lithium battery. Recharging is straightforward via the standard USB charging port.

Q: When should I calibrate the detector and is the process user-friendly?

A: Calibration intervals depend on usage and environmental conditions, but the device allows user calibration as needed. The process is designed to be straightforward, with clear on-screen prompts in multiple languages.

Q: Where can this gas detector be most effectively used?

A: It is ideal for industrial safety applications including confined spaces, mining operations, petrochemical processing, and environmental monitoring where multiple gas hazards may be present.

Q: What is the benefit of simultaneous multi-gas detection?

A: With the ability to detect methane, oxygen, carbon monoxide, and hydrogen sulfide at once, the device offers comprehensive monitoring, reducing the need for multiple instruments and streamlining safety protocols.

Q: How is measurement data stored and retrieved?

A: Event logs and measurement data are automatically stored in the built-in memory, allowing users to review exposure events and maintain compliance records for safety audits.

Q: What durability features make this instrument suitable for tough environments?

A: The impact-resistant ABS housing and IP65 dust/water resistance ensure the device endures harsh industrial settings, while the portable design and robust construction support consistent field use.
