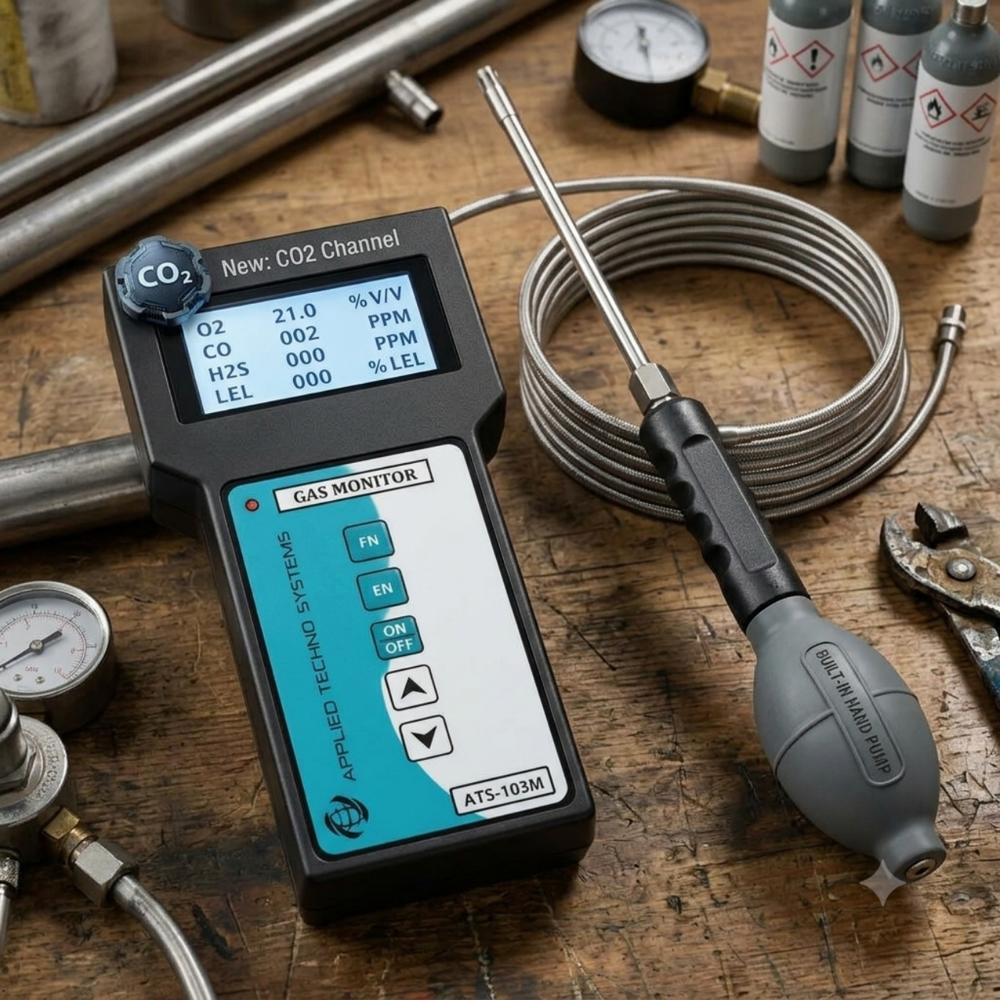

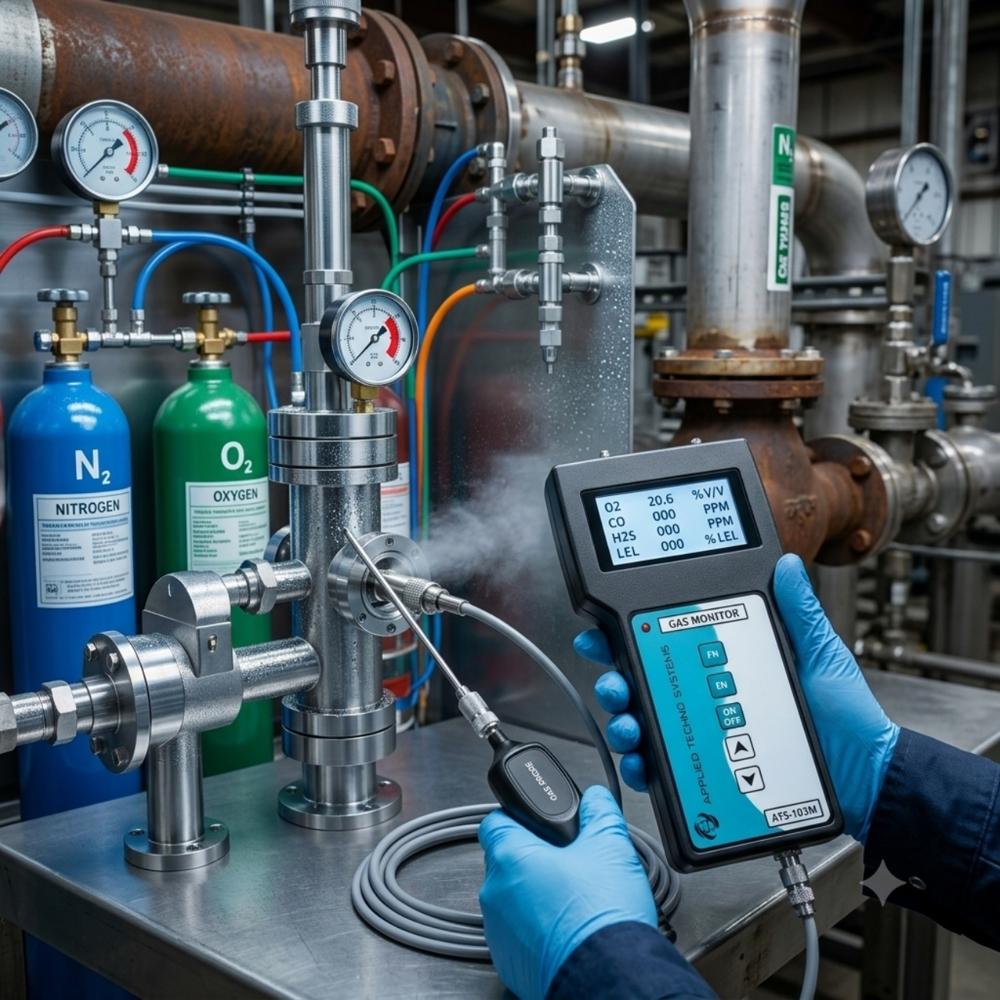

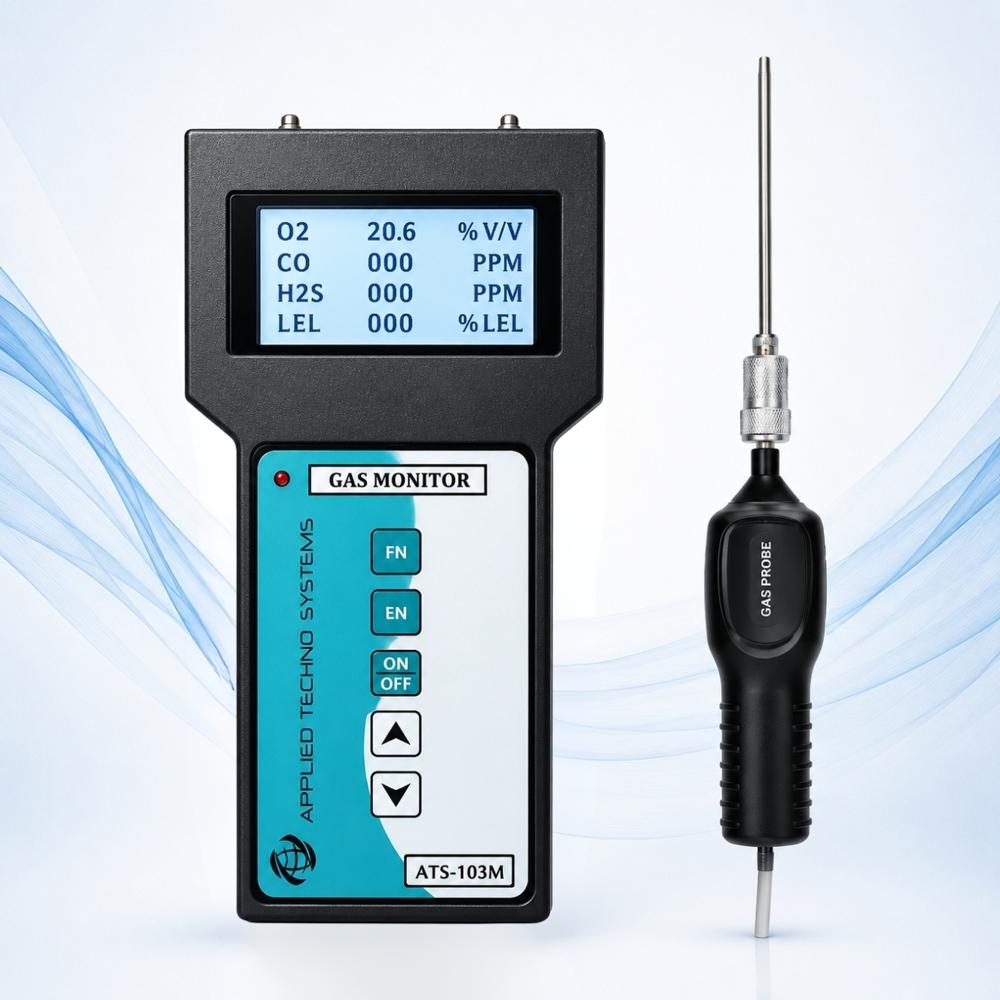

Gas Detector With Built In Pump
Gas Detector With Built In Pump
Gas Detector With Built In Pump
Gas Detector With Built In Pump
Gas Detector With Built In Pump
Gas Detector With Built In Pump

Gas Detector With Built In Pump

Price 70000.0 INR/ Piece

MOQ : 1 Piece

Gas Detector With Built In Pump Specification

  • Operating Voltage
  • 3.7V Li-ion rechargeable battery
  • Gas Pressure
  • Atmospheric Pressure Conditions
  • Power Supply
  • Rechargeable Li-ion Battery, USB Charging
  • Measuring Range
  • O2 (0-30% Vol), CO (0-1000 ppm), H2S (0-100 ppm), LEL (0-100 %LEL)
  • Equipment Type
  • Portable Gas Detector with Built-In Pump
  • Humidity
  • 0-95% RH (Non-condensing)
  • Port Size
  • Standard fitting for probe inlet
  • Display Type
  • Large Digital LCD Display
  • Automation Grade
  • Automatic
  • Accuracy
  • 2% F.S. (Varies by sensor type)
  • Application
  • Detection and monitoring of multiple gases in industrial or confined spaces
  • Resolution
  • O2: 0.1%, CO: 1 ppm, H2S: 0.1 ppm, LEL: 1%
  • Interface Type
  • USB Charging/Communication Port
  • Temperature
  • 0C to 50C Operating Temperature
  • Features
  • Data Hold, Auto Calibration, Audible and Visual Alarm, Backlight Display, Built-in Sampling Pump, Real-time Monitoring
  • Test Range
  • O2 (0-30% Vol), CO (0-1000 ppm), H2S (0-100 ppm), LEL (0-100 %LEL)
  • Mounting Type
  • Handheld
  • Response Time
  • <30 Seconds (T90 time)
  • Usage
  • Personal, Industrial, Confined Space Gas Detection
  • Machine Weight
  • Approx. 350 g (Including battery)
  • Control Mode
  • Microprocessor Controlled
  • Sampling Method
  • Built-in pump suction sampling
  • Calibration Method
  • Automatic or Manual (via calibration gas)
  • Probe Type
  • Detachable stainless steel probe
  • Dimensions
  • 180 mm x 75 mm x 45 mm (Main Unit)
  • Data Logging
  • Optional/Internal Memory for Record Keeping
  • Protection Class
  • IP54 (Splash and Dust Proof)
  • Sensor Type
  • Electrochemical and Catalytic Sensors
  • Battery Life
  • Approx. 10-12 hours continuous operation
  • Alarm Indication
  • Low/High/Over-limit gas concentrations
  • Enclosure Material
  • High-impact ABS Plastic
  • Brand/Model
  • Applied Techno Systems ATS-103M
  • Compliance
  • Meets industry safety standards for portable gas detectors
  • Alarm Type
  • Audible, Visual, and Vibration Alarms



About Gas Detector With Built In Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Comprehensive Multigas Detection

The ATS-103M is engineered to detect and monitor multiple gases simultaneously, making it ideal for personal safety and industrial applications. Using precise electrochemical and catalytic sensors, it provides real-time data for O2, CO, H2S, and LEL levels. This versatile capability ensures a proactive response to hazardous environments, protecting users from gas leaks and unsafe air quality conditions.


User-Friendly and Durable Design

Built for rugged industrial use, the ATS-103M features a high-impact ABS plastic enclosure with IP54 protection against dust and splashes. Weighing only 350 grams, it remains lightweight and portable. The large, backlit LCD display ensures clear, legible readings even in low-light scenarios. A detachable stainless steel probe enables flexible sampling, while microprocessor control enhances operational reliability.


Smart Features for Enhanced Safety

This model offers alarms via audible, visual, and vibration indicators as soon as gas concentrations exceed preset thresholds. Automatic or manual calibration options ensure accuracy, complemented by a built-in pump for continuous sampling. Optional data logging makes it easy to track exposure events, supporting traceability and compliance with safety standards.

FAQ's of Gas Detector With Built In Pump:


Q: How does the ATS-103M gas detector ensure accurate gas detection?

A: The ATS-103M uses advanced electrochemical and catalytic sensors, combined with automatic or manual calibration options, to deliver precise monitoring of O2, CO, H2S, and LEL gases. The built-in pump provides constant sample flow to the sensors, while real-time readings are displayed on a large digital LCD.

Q: What gases can be measured with this detector, and what are their ranges?

A: This device can monitor oxygen (O2) from 0-30% Vol, carbon monoxide (CO) from 0-1000 ppm, hydrogen sulfide (H2S) from 0-100 ppm, and combustible gases (LEL) from 0-100 %LEL. These ranges cover typical requirements for both confined spaces and industrial gas detection.

Q: Where is the ATS-103M typically used?

A: The ATS-103M is designed for use in industrial environments, confined spaces, chemical plants, oil and gas facilities, and any location that requires portable, reliable gas monitoring to ensure worker safety and regulatory compliance.

Q: What process is involved in sampling gases using this detector?

A: Gases are sampled through a built-in pump that draws air via a detachable stainless steel probe. This enables users to sample from hard-to-reach or hazardous areas, ensuring efficient and effective gas monitoring without direct exposure.

Q: How long does the battery last and how is it recharged?

A: The detector operates for approximately 10 to 12 hours on a single charge, making it suitable for a full work shift. The rechargeable Li-ion battery is conveniently charged via a USB interface, allowing for easy power management in the field or office.

Q: What are the benefits of having multiple alarm types on this detector?

A: Audible, visual, and vibration alarms provide immediate and clear alerts to users even in noisy or low-visibility environments. This multi-modal warning system enhances the likelihood of prompt detection and action in emergencies, improving overall workplace safety.

Q: When and how should calibration be performed?

A: Calibration can be scheduled regularly or performed as needed. The ATS-103M supports both automatic and manual calibration using calibration gases, ensuring the detectors maintain their accuracy throughout their service life. Regular calibration is crucial for reliable gas measurement and compliance with safety standards.
