Handheld Gas Analyser About

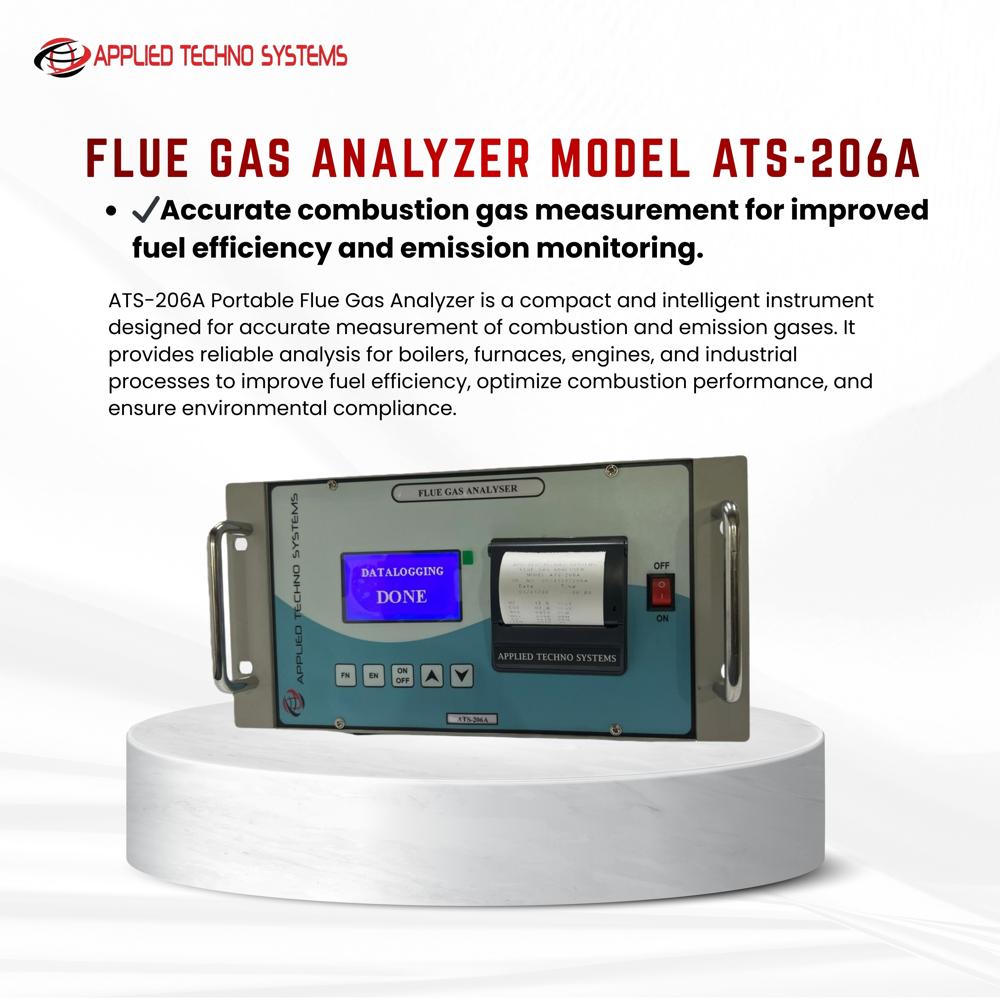

The ATS-206A Portable Flue Gas Analyzer is a powerful, compact, and intelligent instrument designed for accurate single and multi-gas analysis in industrial environments. Built with advanced sensor technology, it ensures reliable and continuous monitoring of flue gases for emission control, combustion efficiency, and process optimization.

This user-friendly analyzer features fully automatic operation, including calibration and sampling, making it ideal for professionals seeking precision and ease of use. With its rugged aluminum body, long-life rechargeable battery, and high-quality graphics LCD display, the ATS-206A is engineered for both field and laboratory applications.

Widely used across industries such as power plants, petrochemicals, cement, steel, and pharmaceuticals, this analyzer supports critical applications like stack gas analysis, boiler efficiency monitoring, exhaust emission testing, and environmental monitoring.

Key Features

• Fully automatic operation with calibration & sampling
• High accuracy sensors with cross-interference filters
• Continuous real-time gas concentration display
• Built-in self-diagnostic & self-integrity check system
• Long-life rechargeable battery with external charger
• High suction in-built pump with flow monitoring
• Multi-fuel selection (up to 10 fuels) for combustion analysis
• Rugged, compact & portable aluminum design
• Optional probes for gas leak detection & ambient monitoring
• Fast response time ( 20 seconds)

Technical Specifications

Model: ATS-206A
Display: Graphics LCD
Response Time: 20 seconds
Power Supply: Rechargeable battery + 220V AC charger
Working Temperature: -5C to 55C
Storage Temperature: -20C to 45C
Dimensions: 170 100 130 mm
Weight: Approx. 1.5 kg
Body Material: Aluminum

Gas Measurement Range

• O: 025%
• CO: 04000 / 10000 ppm
• CO: 025% / 100%
• NO / NOx: 05000 ppm
• NO: 01000 ppm
• SO: 05000 ppm
• HC: 0100% LEL / 05%
• Excess Air: 0100%
• Temperature (Gas): Up to 1000C
• Combustion Efficiency: 099.9%

Applications

• Stack Gas Analysis
• Boiler & Furnace Monitoring
• Engine Exhaust Emission Testing
• Combustion Efficiency Analysis
• Ambient & Environmental Monitoring
• Process & Quality Control Labs
• Power Plants & Petrochemical Industries

Industries Served

• Power Generation
• Cement & Steel Plants
• Petrochemical & Chemical Industries
• Pharmaceuticals
• Glass & Paper Industries
• Refineries & Process Industries
