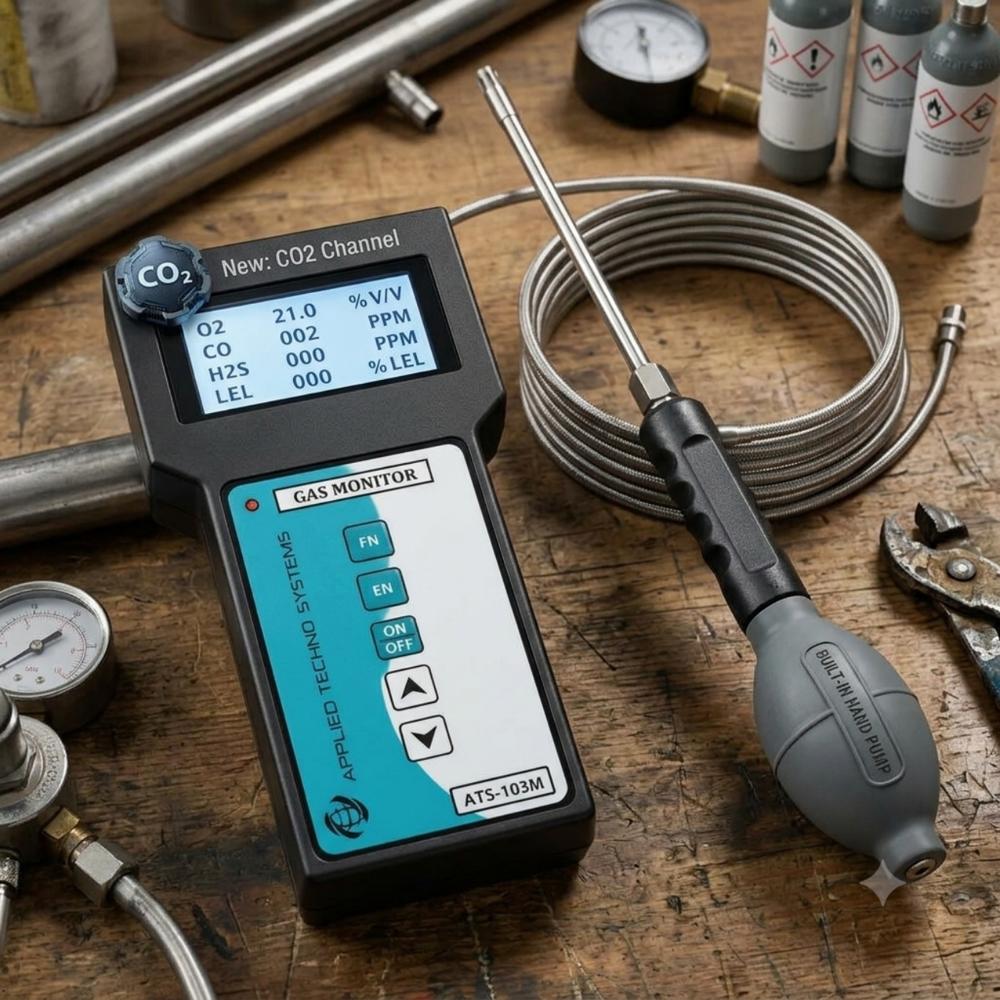

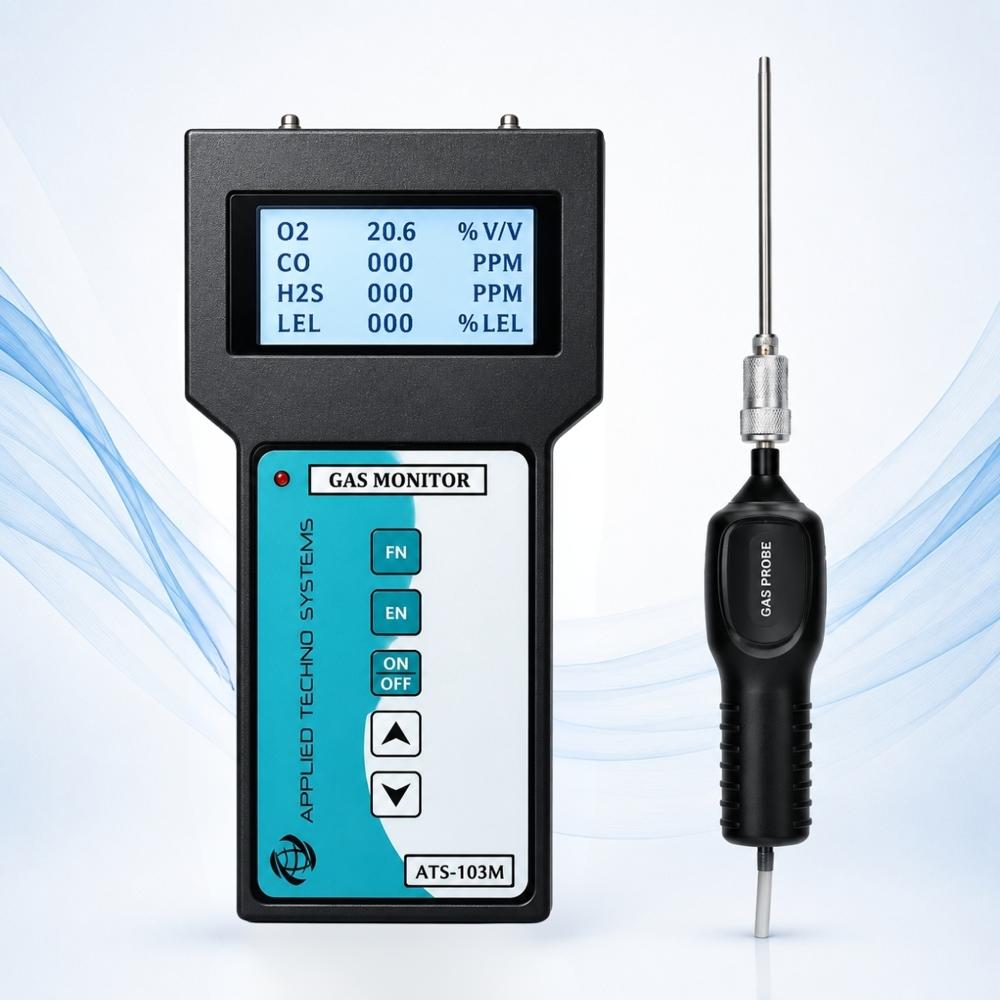

Handheld Gas Detection Instrument with Pump
Handheld Gas Detection Instrument with Pump
Handheld Gas Detection Instrument with Pump
Handheld Gas Detection Instrument with Pump
Handheld Gas Detection Instrument with Pump
Handheld Gas Detection Instrument with Pump

Handheld Gas Detection Instrument with Pump

Price 72000.0 INR/ Piece

MOQ : 1 Piece

Handheld Gas Detection Instrument with Pump Specification

  • Number of Specimens
  • Single point detection
  • Response Time
  • <30 seconds (typical for T90)
  • Automation Grade
  • Automatic
  • Test Range
  • O2: 0-30% V/V; CO/H2S/LEL: Configurable as per sensor
  • Power Supply
  • Rechargeable Li-ion Battery / 230V AC, 50Hz Adapter
  • Accuracy
  • 2% F.S. (varies by sensor)
  • Operating Voltage
  • 3.7V Li-ion battery (internal rechargeable)
  • Interface Type
  • Membrane keypad, optional USB or RS232 for data download
  • Features
  • Auto calibration, data logging, audible & visual alarm, internal sampling pump, multi-gas support
  • Equipment Type
  • Handheld Gas Detection Instrument with Pump
  • Gas Pressure
  • Ambient atmospheric pressure
  • Humidity
  • 0-95% RH (non-condensing)
  • Resolution
  • O2: 0.1%, CO/H2S: 1 ppm, LEL: 1%
  • Temperature
  • -10C to 55C (operating range)
  • Specimen Size
  • Probe insertion length: ~10 cm
  • Hardness
  • Rugged ABS housing for industrial use
  • Application
  • Personal safety, confined space monitoring, industrial hygiene
  • Display Type
  • Large backlit LCD display
  • Frequency
  • Sampling rate: 1 second
  • Port Size
  • 6 mm (probe connector)
  • Mounting Type
  • Handheld/Portable
  • Measuring Range
  • O2: 0-30% V/V, CO: 0-999 PPM, H2S: 0-100 PPM, LEL: 0-100% LEL
  • Max Height
  • Device length: Approx. 22 cm
  • Usage
  • Gas concentration measurement in industrial or environmental settings
  • Capacity
  • Simultaneous multi-gas detection (typically up to 4 gases)
  • Machine Weight
  • Approx. 500 g
  • Test Speed
  • Real-time display
  • Control Mode
  • Microprocessor based digital control
  • Compliance Standards
  • CE, ISO 9001:2015
  • Data Storage
  • Internal memory for up to 1000 readings
  • Pump Type
  • Built-in diaphragm sampling pump
  • Calibration
  • Factory calibrated, user calibration supported
  • Operation Mode
  • Manual/auto sampling
  • Alarm Type
  • Audible (buzzer), Visual (LED), Vibrating alert
  • Charging Time
  • 3-4 hours
  • Battery Life
  • 12-14 hours continuous operation
  • Protection Class
  • IP54 (splash and dust resistant)
  • Language Support
  • English (others on request)
  • Sensor Type
  • Electrochemical (O2, CO, H2S), Catalytic bead (LEL), configurable as needed



About Handheld Gas Detection Instrument with Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Flexible Multi-Gas Detection

Detect up to four gases, including oxygen, carbon monoxide, hydrogen sulfide, and combustible gases, using configurable, high-accuracy sensors. The instrument adapts to various industrial or environmental scenarios, ensuring comprehensive monitoring and improved safety for personnel in confined or hazardous spaces.


Robust Sampling and Data Logging

Equipped with a built-in diaphragm pump, the instrument ensures fast and reliable sampling. Internal memory stores up to 1000 readings, and data can be downloaded via USB or RS232 interface, providing comprehensive records for ongoing analysis and safety compliance.


User-Friendly Operation and Alarms

Large backlit LCD, membrane keypad, and automatic or manual sampling modes make the device intuitive to operate. The audible buzzer, LED visual alerts, and vibrating alarms promptly warn users of hazardous gas levels, enabling timely response to ensure safety.

FAQ's of Handheld Gas Detection Instrument with Pump:


Q: How does the built-in sampling pump work with this handheld gas detector?

A: The integrated diaphragm sampling pump actively draws air through the probe, allowing precise real-time measurement of gas concentrations. This improves detection speed and reliability, especially when monitoring confined spaces or hard-to-reach areas.

Q: What types of gases can the instrument detect simultaneously, and can I configure them as needed?

A: The device supports detection of oxygen, carbon monoxide, hydrogen sulfide, and combustible gases (LEL) via electrochemical and catalytic bead sensors. You can configure sensor types according to your specific workplace requirements, providing flexible multi-gas protection.

Q: When should I calibrate the instrument, and how is calibration performed?

A: Factory calibration is provided, ensuring accurate readings from the start. For ongoing accuracy, user calibration is supported following the included process, typically using calibration gas cylinders. Regular calibration is recommended based on your application and frequency of use.

Q: Where can this gas detector be used, and what environmental conditions can it tolerate?

A: The instrument is designed for rugged industrial and environmental settings, including confined space entry, personal safety, and industrial hygiene. It operates in humidity levels of 0-95% RH (non-condensing) and temperatures ranging from -10C to 55C, making it suitable for demanding environments.

Q: What is the benefit of the alarm system, and how does it notify users of hazardous gas levels?

A: The device features audible (buzzer), visual (LED), and vibrating alerts to immediately notify users of unsafe gas concentrations. This multi-alert system ensures hazards are recognized quickly, reducing risk and supporting prompt protective actions.

Q: How is the data stored and accessed for reporting or compliance?

A: Internal memory can log up to 1000 test readings. Data downloads are available through optional USB or RS232 ports, enabling convenient access for reporting and compliance with industry standards such as CE and ISO 9001:2015.

Q: What is the process for operating this instrument, and how long does the battery last?

A: Operation is straightforward via the membrane keypad, with manual or automatic sampling modes. The rechargeable Li-ion battery provides 12-14 hours of continuous operation, and recharging takes approximately 3-4 hours, ensuring sustained monitoring during shifts.
