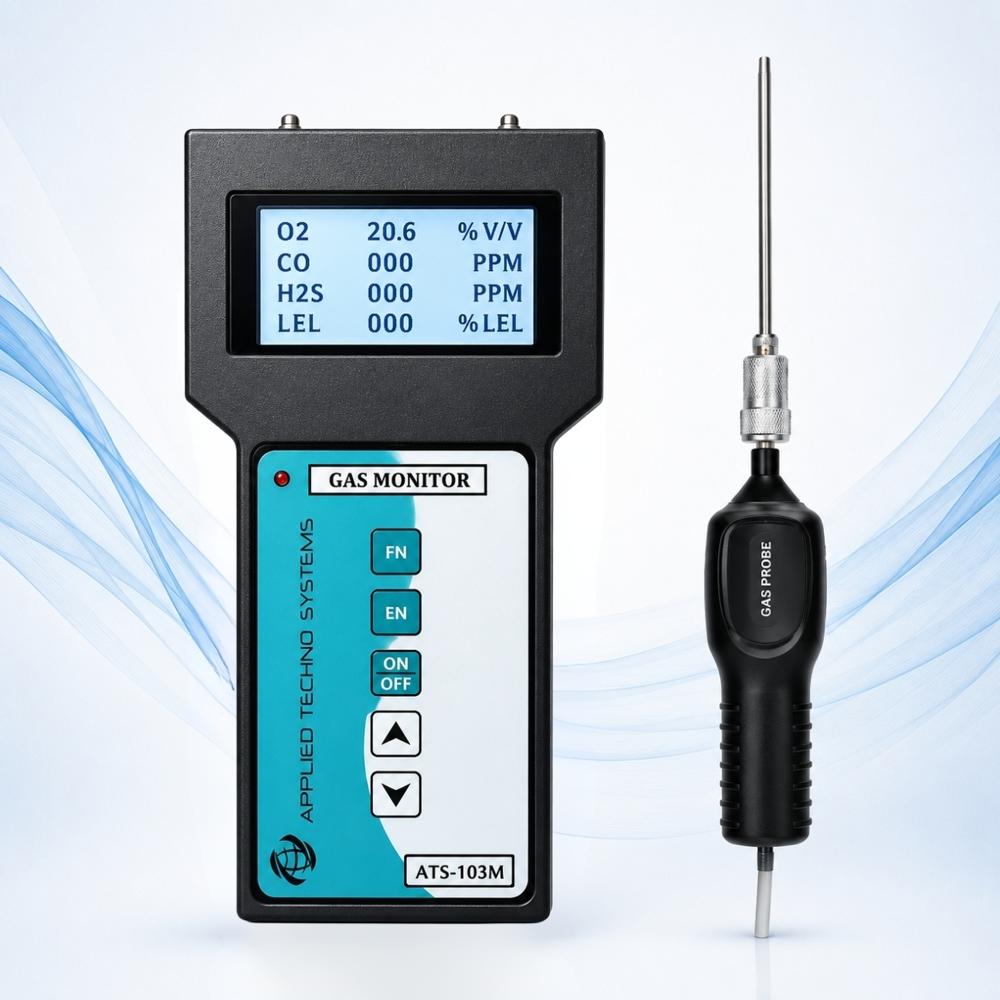

Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector
Handheld Multi Gas Detector

Handheld Multi Gas Detector

Price 80000.0 INR/ Piece

MOQ : 1 Piece

Handheld Multi Gas Detector Specification

  • Display Type
  • Large LCD digital display
  • Features
  • Portable, direct display, alarm function, user-programmable, battery powered
  • Operating Voltage
  • 3.7V rechargeable Li-ion battery / 230V AC adaptor
  • Application
  • Safety monitoring, industrial gas detection, confined space entry
  • Max Height
  • Approx. 220 mm (including probe)
  • Accuracy
  • 2% F.S. (O2); 5 ppm or 5% reading (CO, H2S); 2% LEL (combustible gases)
  • Equipment Type
  • Handheld Multi-Gas Detector
  • Interface Type
  • Push-button; may include USB for data transfer (varies by model)
  • Gas Pressure
  • Atmospheric to slight positive (sampling pump included)
  • Mounting Type
  • Handheld
  • Test Range
  • O2, CO, H2S, LEL - typical: O2 (0-30% v/v); CO (0-1000 ppm); H2S (0-100 ppm); LEL (0-100% LEL)
  • Port Size
  • Standard sampling probe with connector
  • Temperature
  • -10C to +50C operating range
  • Resolution
  • 0.1% (O2), 1 ppm (CO, H2S), 1% LEL (combustibles)
  • Humidity
  • 0-95% RH non-condensing
  • Specimen Size
  • Not applicable (gas sample)
  • Response Time
  • T90 < 30 seconds (typical for most gases)
  • Power Supply
  • Internal rechargeable battery / 230V AC adaptor
  • Number of Specimens
  • Single-point testing per measurement
  • Automation Grade
  • Manual/Automatic sampling (depends on configuration)
  • Frequency
  • Single measurement per sampling; continuous in monitoring mode
  • Measuring Range
  • As per sensor - O2 (0-30% v/v), CO (0-1000 ppm), H2S (0-100 ppm), LEL (0-100% LEL)
  • Usage
  • Industrial, laboratory, safety compliance
  • Machine Weight
  • Approx. 400 g (including batteries and probe)
  • Test Speed
  • Instantaneous, continuous monitoring
  • Test Width
  • N/A (spot-point sampling)
  • Control Mode
  • Push-button interface
  • Probe Length
  • Approx. 155 mm (detachable)
  • Calibration
  • Manual, user-accessible
  • Sensor Type
  • Electrochemical for O2, CO, H2S; Catalytic bead for LEL
  • Operating Languages
  • English (others optional)
  • Dimensions
  • Approx. 175 x 80 x 40 mm (excluding probe)
  • Operating Time
  • 8-10 hours continuous on full charge
  • Compliance
  • CE marked, EMC and safety certified
  • Protection Class
  • IP54 (Dust and splash proof)
  • Sampling Method
  • Diffusion or pump-assisted (with supplied probe)
  • Data Logging
  • Optional, with some models
  • Low Battery Indication
  • Yes, on display
  • Alarm Indicators
  • Audible, visual, vibration
  • Model Number
  • ATS-103M



About Handheld Multi Gas Detector

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Comprehensive Gas Detection

The ATS-103M multi-gas detector delivers simultaneous monitoring of O2, CO, H2S, and combustible gases. Its electrochemical and catalytic bead sensors guarantee dependable performance across diverse environments. The device is ideal for confined space entry, safety compliance, and industrial gas detection, offering peace of mind through continuous and spot-point sampling modes.


User-Friendly Operation and Design

Designed for convenience, the detector features a large digital LCD display and intuitive push-button interface. It supports both manual and automatic sampling and has user-accessible manual calibration. Audible, visual, and vibration alarms provide immediate notification of hazardous gas levels, while optional data logging enhances record-keeping and compliance.


Durable and Portable Construction

With an IP54 rating, the ATS-103M resists dust and splashes, making it suitable for tough industrial settings. Its lightweight, handheld build and rechargeable battery enable 8-10 hours of operation per charge. The included detachable probe and ergonomic shape ensure comfortable extended use in varied conditions.

FAQ's of Handheld Multi Gas Detector:


Q: How do I calibrate the ATS-103M multi-gas detector?

A: Calibration is performed manually through the user-accessible interface. Detailed instructions are included in the user manual, allowing for sensor adjustment and periodic recalibration, crucial for maintaining measurement accuracy.

Q: What gases can the ATS-103M detect, and what are their measurement ranges?

A: The detector monitors oxygen (O2) from 0 to 30% v/v, carbon monoxide (CO) from 0 to 1000 ppm, hydrogen sulfide (H2S) from 0 to 100 ppm, and combustible gases (LEL) from 0 to 100% LEL. Customizable alarms ensure prompt responses to hazardous concentrations.

Q: When should I use pump-assisted sampling with this device?

A: Pump-assisted sampling is recommended for remote, confined, or hard-to-reach areas where direct contact with the gas sample is required. The supplied probe lets you draw samples from areas inaccessible for diffusion-based detection.

Q: What are the main benefits of using a handheld multi-gas detector like the ATS-103M?

A: Key benefits include real-time, accurate monitoring for multiple gases, immediate alarm notifications, portability, and ease of use. The device enhances workplace safety and compliance in industrial and laboratory settings.

Q: Where can this multi-gas detector be used effectively?

A: It's suitable for industrial gas detection, confined space entry, labs, manufacturing facilities, and environments where gas monitoring is critical for safety and regulatory compliance.

Q: How long is the operating time on a full battery charge?

A: The ATS-103M provides continuous operation for 8-10 hours on a full battery charge, supporting both regular shift work and extended monitoring tasks.

Q: What alarm indicators are available on the ATS-103M?

A: The device incorporates audible, visual, and vibration alarms, ensuring prompt detection and notification of hazardous gas levels for heightened user safety.
