Industrial Multi Gas Detection System
Industrial Multi Gas Detection System
Industrial Multi Gas Detection System
Industrial Multi Gas Detection System
Industrial Multi Gas Detection System
Industrial Multi Gas Detection System

Industrial Multi Gas Detection System

Price 46000.0 INR/ Piece

MOQ : 1 Piece

Industrial Multi Gas Detection System Specification

  • Response Time
  • <30 seconds
  • Port Size
  • Standard sampling port (approx. 5mm)
  • Mounting Type
  • Handheld, Portable
  • Frequency
  • Sensor sampling frequency: 1Hz
  • Power Supply
  • Rechargeable Lithium Battery, USB Charging
  • Interface Type
  • USB charging, Sensor sampling port
  • Test Range
  • CH4: 0-100%LEL, O2: 0-25%VOL, CO: 0-1000PPM, H2S: 0-100PPM
  • Accuracy
  • 5% full scale
  • Temperature
  • Operating: -20C to 50C
  • Resolution
  • CH4: 0.01%LEL, O2: 0.1%VOL, CO: 1PPM, H2S: 0.1PPM
  • Number of Specimens
  • Multiple gases (4 types)
  • Automation Grade
  • Semi-automatic
  • Measuring Range
  • CH4, O2, CO, H2S detection
  • Operating Voltage
  • 3.7V DC
  • Humidity
  • 0-95% RH, non-condensing
  • Features
  • Auto calibration, Alarm (visual, audible, vibration), Real-time display, Compact design
  • Display Type
  • Digital LCD display
  • Application
  • Industrial safety, confined space, hazardous area monitoring
  • Gas Pressure
  • Atmospheric
  • Usage
  • Gas detection and monitoring
  • Capacity
  • Portable, Handheld
  • Machine Weight
  • ~250g
  • Test Speed
  • Instantaneous measurement
  • Control Mode
  • Manual/Automatic
  • Enclosure Protection
  • IP65 dust/water resistant
  • Alarm Type
  • Visual, Audible, Vibration
  • Equipment Type
  • Industrial Multi Gas Detector
  • Battery Life
  • Up to 12 hours continuous operation
  • Data Logging
  • Built-in memory, downloadable
  • Language Support
  • Multi-language
  • Dimensions
  • 135mm x 65mm x 32mm
  • Calibration Interval
  • Recommended every 6 months
  • Sensor Life
  • 2-3 years (typical)



About Industrial Multi Gas Detection System

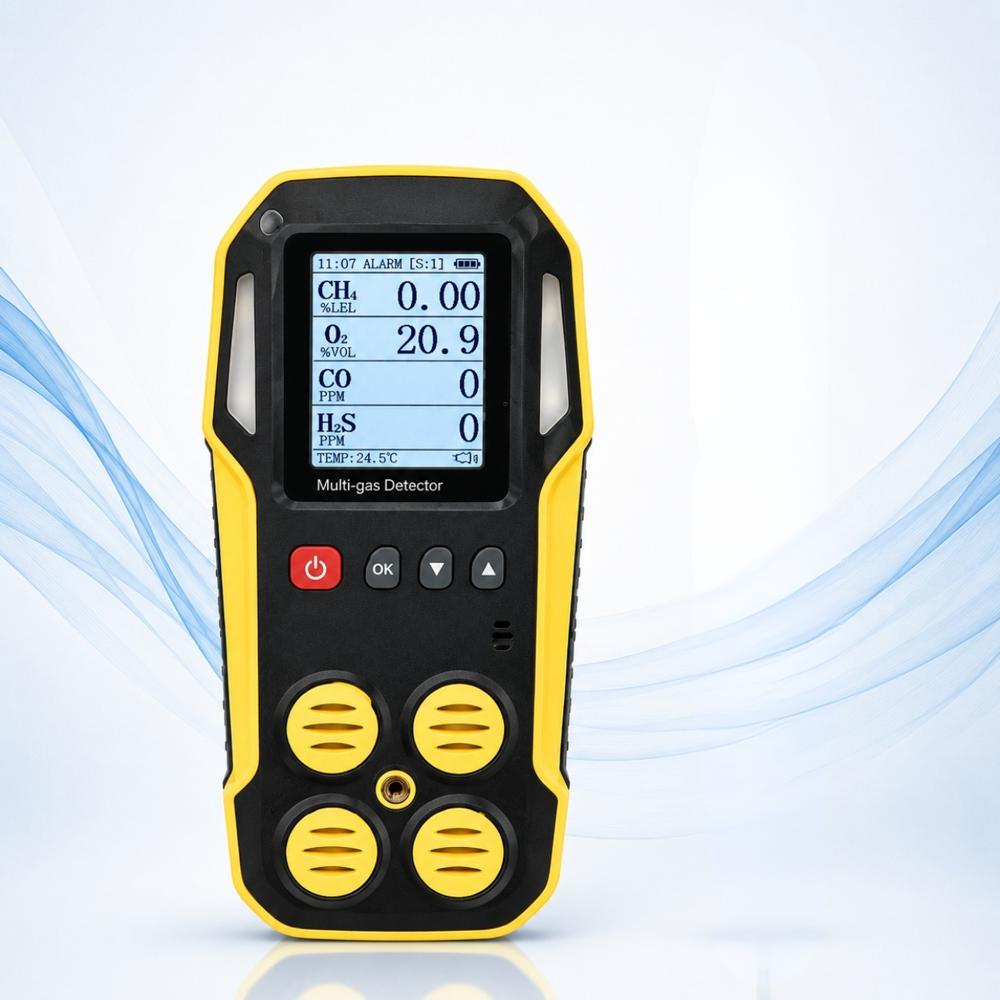

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Rugged & Reliable Gas Detection

Engineered for industrial settings, this gas detection system ensures operational safety through its robust IP65-rated enclosure. It delivers accurate gas concentration readings even in demanding environments, from -20C to 50C, withstanding humidity levels up to 95% RH (non-condensing).


Comprehensive Multi-Gas Monitoring

The system simultaneously detects Methane (CH4), Oxygen (O2), Carbon Monoxide (CO), and Hydrogen Sulphide (H2S). Its real-time digital LCD provides instant results, while valid across atmospheric pressures and diverse workplace conditions.


User-Focused Portability and Functionality

Weighing approximately 250g and measuring 135mm x 65mm x 32mm, the handheld detector is easy to transport and operate. Intuitive controls, a rechargeable battery for up to 12 hours, and auto-calibration features make it suitable for various industrial applications.

FAQ's of Industrial Multi Gas Detection System:


Q: How do I operate the Industrial Multi Gas Detection System for gas monitoring?

A: To operate, simply power on the device and select the manual or automatic control mode as needed. Position the sensor sampling port (approx. 5mm) in the area to be tested. The digital LCD will display instantaneous gas concentrations, and alarms will activate in case of detected hazards.

Q: What types of gases can this detector identify, and what are their measuring ranges?

A: The system is capable of detecting Methane (CH4) within 0-100% LEL, Oxygen (O2) from 0-25% Vol, Carbon Monoxide (CO) up to 1000 ppm, and Hydrogen Sulphide (H2S) up to 100 ppm, with high accuracy and clear resolution for each gas.

Q: When should the detector be calibrated, and how is this process performed?

A: Calibration is recommended every six months to maintain sensor accuracy. The built-in auto-calibration feature guides users through a step-by-step process, ensuring measurement precision and regulatory compliance.

Q: Where can I use this gas detector? Is it suitable for hazardous or confined spaces?

A: This detector is specifically designed for use in industrial settings, hazardous zones, and confined spaces. Its portable, rugged design makes it ideal for high-risk environments requiring consistent gas monitoring and safety compliance.

Q: What are the benefits of built-in data logging and USB download capability?

A: Built-in memory allows automatic logging of gas concentration data. Data can be easily downloaded via USB for reporting, analysis, or incident documentation, supporting regulatory requirements and internal audits.

Q: How does the alarm system alert users to hazardous conditions?

A: The detector provides visual, audible, and vibration alarms. If dangerous gas levels are detected, these alarms are activated immediately to ensure prompt user response and maximize safety in the work area.

Q: What is the typical sensor life, and how do I know when to replace it?

A: The sensors typically last 2-3 years, depending on usage and environmental conditions. Regular calibration and performance checks will indicate if replacement is necessary, helping maintain reliable measurement accuracy.
