Multi Gas Leak Detector With Pump
Multi Gas Leak Detector With Pump
Multi Gas Leak Detector With Pump
Multi Gas Leak Detector With Pump
Multi Gas Leak Detector With Pump
Multi Gas Leak Detector With Pump

Multi Gas Leak Detector With Pump

Price 72000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Leak Detector With Pump Specification

  • Temperature
  • -10C to +50C
  • Number of Specimens
  • Up to 4 simultaneous gases
  • Operating Voltage
  • DC 3.7V (Lithium Battery)
  • Test Range
  • O2: 0-30% Vol, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Features
  • Portable, Rugged, Easy-to-Read Display, Real-time Measurement, Audible/Visual Alarm, Data Logging
  • Display Type
  • LCD Digital Display
  • Power Supply
  • Rechargeable Lithium Battery / DC Adapter
  • Mounting Type
  • Handheld, Portable
  • Port Size
  • Standard 6 mm gas port
  • Response Time
  • < 30 seconds
  • Humidity
  • 0 to 95% RH (Non-condensing)
  • Equipment Type
  • Multi Gas Leak Detector With Pump
  • Accuracy
  • 2% F.S.
  • Automation Grade
  • Automatic
  • Gas Pressure
  • Atmospheric
  • Interface Type
  • Standard plug-in for probe, micro USB for charging
  • Application
  • Detection and monitoring of oxygen, carbon monoxide, hydrogen sulfide, and LEL in industrial environments
  • Resolution
  • O2: 0.1%, CO/H2S: 1 ppm, LEL: 1% LEL
  • Max Height
  • 23 cm with probe
  • Measuring Range
  • O2: 0-30% Vol, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Usage
  • Industrial Safety, Hazardous Gas Detection
  • Capacity
  • Multiple Gases
  • Machine Weight
  • Approximately 500g
  • Test Speed
  • Real-time measurement
  • Control Mode
  • Microprocessor Controlled
  • Battery Life
  • 8-12 hours (continuous use)
  • Pump Type
  • Integrated Micro Pump
  • Sensor Type
  • Electrochemical for O2, CO, H2S; Catalytic for LEL
  • Charging Time
  • Approx. 3 hours
  • Protection Class
  • IP65
  • Dimensions
  • 185 x 80 x 40 mm (Main Body Without Probe)
  • Housing Material
  • ABS Plastic
  • Alarm
  • Audible, Visual, and Vibration Alarms
  • Calibration
  • Automatic and Manual Zero/Span Calibration
  • Sampling Mode
  • Diffusion and Suction (with Pump)
  • Data Storage
  • Internal Data Logging (up to 100,000 records)



About Multi Gas Leak Detector With Pump

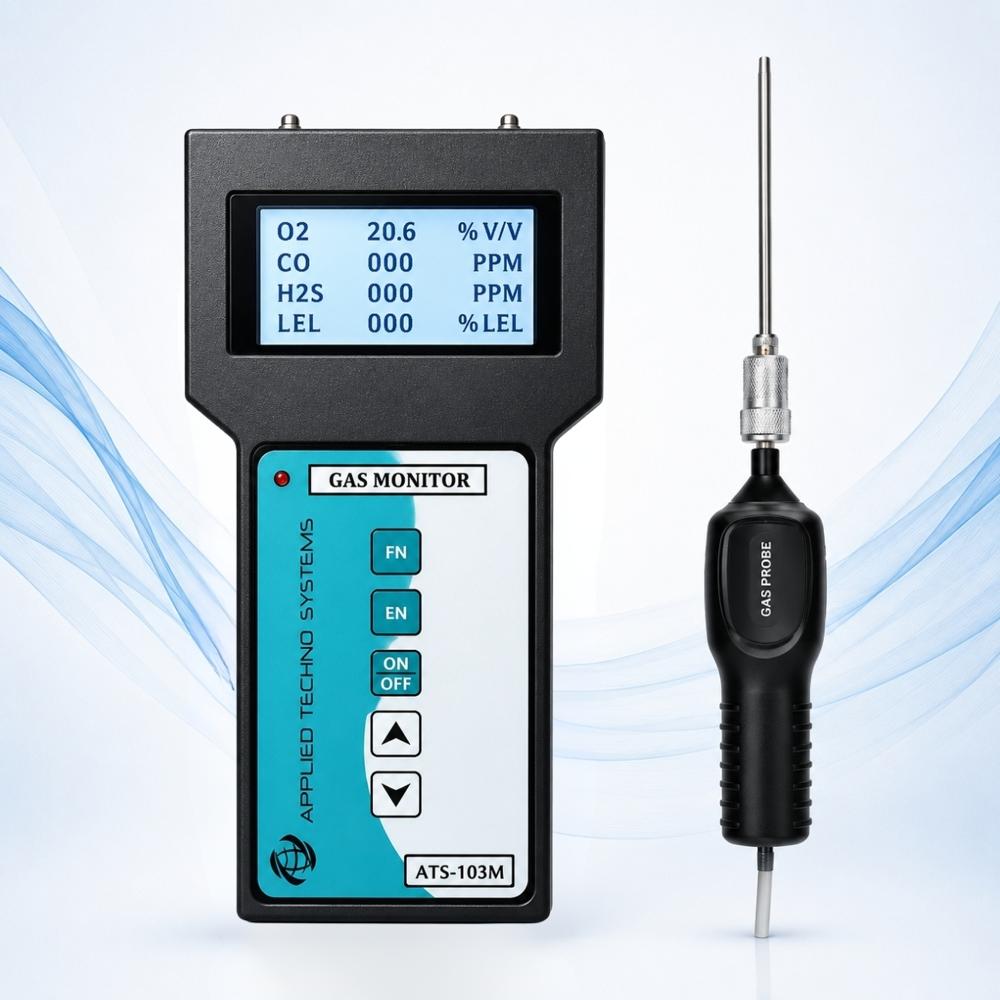

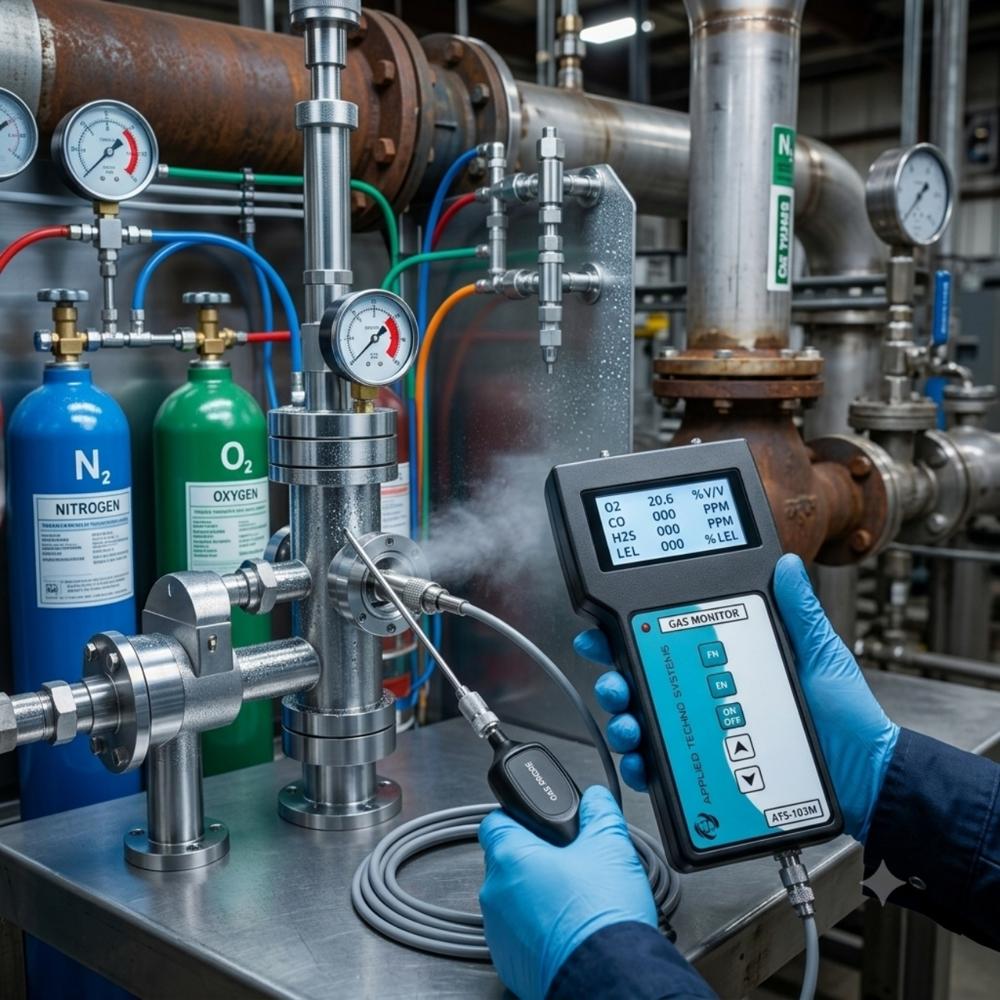

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Comprehensive Gas Detection Solutions

This multi gas leak detector offers simultaneous monitoring of up to four gases, ensuring comprehensive protection in industrial settings. With robust sensors-electrochemical for O2, CO, H2S, and catalytic for LEL-the device detects a wide range of hazardous gases. Its real-time measurement and rapid response (within 30 seconds) enable swift identification and management of gas leaks or unsafe conditions.


User-Friendly, Rugged Design

Crafted from durable ABS plastic with IP65 protection, the detector withstands tough work conditions. Its handheld, lightweight design ensures portability, while the large LCD digital display guarantees clear readings. The intuitive interface, automatic/manual calibration, and up to 12-hour battery life maximize efficiency for users in industrial environments.


Advanced Safety Features

Safety is prioritized with the device's audible, visual, and vibration alarms. The integrated micro pump allows for both diffusion and suction sampling, increasing flexibility in confined or remote areas. Extensive data logging capabilities support maintenance, compliance tracking, and incident analysis, making it a reliable choice for safety managers and field technicians.

FAQ's of Multi Gas Leak Detector With Pump:


Q: How does the Multi Gas Leak Detector with Pump alert users to dangerous gas levels?

A: The detector uses a combination of audible, visual, and vibration alarms to warn users instantly when gas levels exceed preset safety thresholds, ensuring timely evacuation or intervention in hazardous environments.

Q: What gases can this detector simultaneously monitor and what are its measuring ranges?

A: It can monitor oxygen (O2), carbon monoxide (CO), hydrogen sulfide (H2S), and combustible gases (LEL) concurrently, with measuring ranges of O2: 0-30% vol, CO: 0-1000 ppm, H2S: 0-100 ppm, and LEL: 0-100% LEL.

Q: Where is this multi gas leak detector most commonly used?

A: This device is predominantly employed in industrial environments for safety monitoring, hazardous gas detection, and automation. It is suitable wherever there is a risk of gas leaks or hazardous atmosphere, such as in refineries, chemical plants, and confined spaces.

Q: How long does the device operate on a full charge and how is it recharged?

A: The detector operates for 8-12 hours of continuous use on a full charge and is easily recharged using a micro USB cable or DC adapter, requiring approximately 3 hours to reach full capacity.

Q: What are the available sampling modes and how do they enhance gas detection?

A: It offers both diffusion sampling (passive air intake) and suction sampling (active pumping), facilitated by the integrated micro pump. This versatility enables effective detection in open areas as well as hard-to-reach or confined spaces.

Q: How is the accuracy and reliability of gas readings ensured?

A: The detector includes both automatic and manual zero/span calibration features. Combined with a control microprocessor and high-precision sensors, it guarantees 2% full-scale accuracy and rapid, consistent readings.
