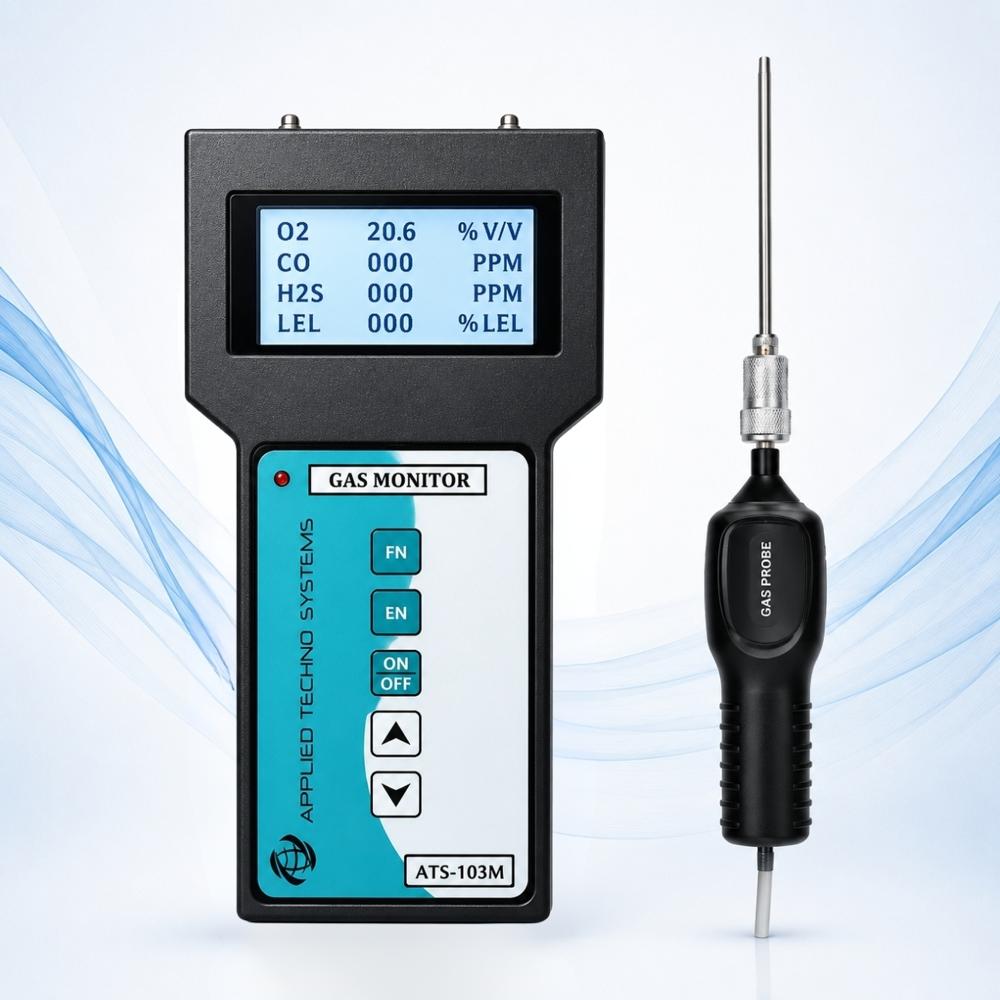

Portable Multi Gas Leak Detector
Portable Multi Gas Leak Detector
Portable Multi Gas Leak Detector
Portable Multi Gas Leak Detector
Portable Multi Gas Leak Detector
Portable Multi Gas Leak Detector

Portable Multi Gas Leak Detector

Price 71000.0 INR/ Unit

MOQ : 1 Unit

Portable Multi Gas Leak Detector Specification

  • Temperature
  • -10C to +55C
  • Accuracy
  • Typically 3% F.S.
  • Mounting Type
  • Handheld
  • Max Height
  • Handheld dimension approx. 200mm
  • Automation Grade
  • Automatic
  • Response Time
  • <30 seconds
  • Measuring Range
  • O2: 0-30%Vol, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Equipment Type
  • Portable Multi Gas Leak Detector
  • Display Type
  • Digital LCD display
  • Humidity
  • 0-95% RH (non-condensing)
  • Test Range
  • Adjustable as per sensor selection (O2, CO, H2S, LEL)
  • Operating Voltage
  • 3.7V (Lithium-ion rechargeable battery)
  • Hardness
  • Industrial grade casing
  • Resolution
  • O2: 0.1% Vol, CO: 1 ppm, H2S: 0.1 ppm, LEL: 1% LEL
  • Features
  • Compact, portable, multi-gas detection, audible & visual alarms, backlight display
  • Application
  • Detection of O2, CO, H2S, LEL gases
  • Gas Pressure
  • Atmospheric
  • Port Size
  • Standard probe accessory port
  • Power Supply
  • Rechargeable battery (Lithium-ion), 3.7V
  • Interface Type
  • Push button interface
  • Specimen Size
  • Gas sample only
  • Number of Specimens
  • Simultaneous display of up to 4 gases
  • Usage
  • Industrial safety, confined spaces, environmental monitoring
  • Capacity
  • Suitable for confined space measurements
  • Machine Weight
  • Approx. 400 g (with batteries)
  • Test Speed
  • Instantaneous gas detection
  • Test Width
  • Single point measurement
  • Control Mode
  • Microprocessor based control
  • Included Accessories
  • Gas probe, charger, calibration cap, carrying case
  • Model Number
  • ATS-103M
  • Protection Class
  • IP54 (dust and splash proof)
  • Calibration Interval
  • Recommended every 6 months
  • Display Backlight
  • Yes
  • Battery Backup
  • Up to 10 hours continuous operation
  • Sensor Type
  • Electrochemical and catalytic sensors
  • Data Logging
  • Optional data logging feature
  • Alarm Type
  • Audible (>85 dB) and visual (LED) alarms
  • Sampling Method
  • Diffusion and pump sampling (with probe)



About Portable Multi Gas Leak Detector

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Advanced Multi-Gas Sensing Technology

The ATS-103M integrates electrochemical and catalytic sensors to precisely measure a range of gases, including oxygen, carbon monoxide, hydrogen sulfide, and combustible gases. This multi-sensor approach allows for simultaneous, accurate detection in a single, handheld device-streamlining safety checks and monitoring procedures.


Designed for Durability and Flexibility

With an IP54 protection class, the ATS-103M resists dust and splashes, ensuring operational reliability in tough industrial environments. The unit's rechargeable battery supports up to 10 hours of continuous use, while multiple sampling methods-diffusion and pump (with probe)-enhance versatility for various applications like confined space entry and environmental surveys.


User-Friendly Features and Easy Operation

A clear digital LCD with backlight ensures visibility even in low-light conditions, and audible alarms (>85dB) paired with bright LED visual alerts promptly notify users of hazardous gas levels. Simple push-button controls, a microprocessor-based interface, and included essential accessories make setup and daily use straightforward for operators.

FAQ's of Portable Multi Gas Leak Detector:


Q: How does the ATS-103M detect multiple gases at once?

A: The ATS-103M employs both electrochemical and catalytic sensors, allowing it to simultaneously monitor up to four gases (O2, CO, H2S, LEL) in real time. The results are displayed clearly on the digital LCD screen.

Q: What environments is this gas leak detector suitable for?

A: Thanks to its IP54 rating and robust design, the ATS-103M is ideal for confined spaces, industrial safety applications, and environmental monitoring in areas with dust, splashes, or varying humidity and temperature conditions.

Q: When should the ATS-103M be calibrated for optimal accuracy?

A: It is recommended that the ATS-103M is calibrated every six months to maintain reliable readings and ensure continued workplace safety.

Q: How does the alarm system work on this device?

A: The detector features both audible alarms (louder than 85 dB) and bright LED visual indicators, providing immediate alerts whenever gas concentrations exceed preset safety thresholds.

Q: What is the process for sampling gases using the ATS-103M?

A: You can perform gas sampling via diffusion for general ambient monitoring or use the included pump and probe for active sampling in difficult-to-reach spaces, enhancing detection in confined or elevated areas.

Q: What are the main benefits of using this portable detector?

A: The key benefits include multi-gas detection in a single handheld device, rapid response in under 30 seconds, easy-to-use interface, robust battery life, and enhanced safety through real-time alerts and industrial-grade protection.
