Multi Point Leak Detector

Name: Multi Point Leak Detector
Brand: APPLIED TECHNO ENGINEERS PRIVATE LIMITED
Price: 15500.0 INR
Availability: InStock

Price 15500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Multi Point Leak Detector Specification

Response Time
10 Seconds

Hardness
Yes

Accuracy
0.5 %

Voltage
110-215 Volt (v)

Usage
Industrial

Material
MS

Temperature
15 Celsius (oC)

Operate Method
Manual

Dimension (L*W*H)
115 X 180 X 60 Centimeter (cm)

Color
White

Power Supply
Manual

Humidity
< 85% RH

Features
Good Quality

Resolution
1, 0.1

Application
Industrial

Classification
IP 65

Display Type
Graphic

Product Type
Gas Monitor

Control Mode
Automatic

Multi Point Leak Detector Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
500 Units Per Month

Delivery Time
7 Days

About Multi Point Leak Detector

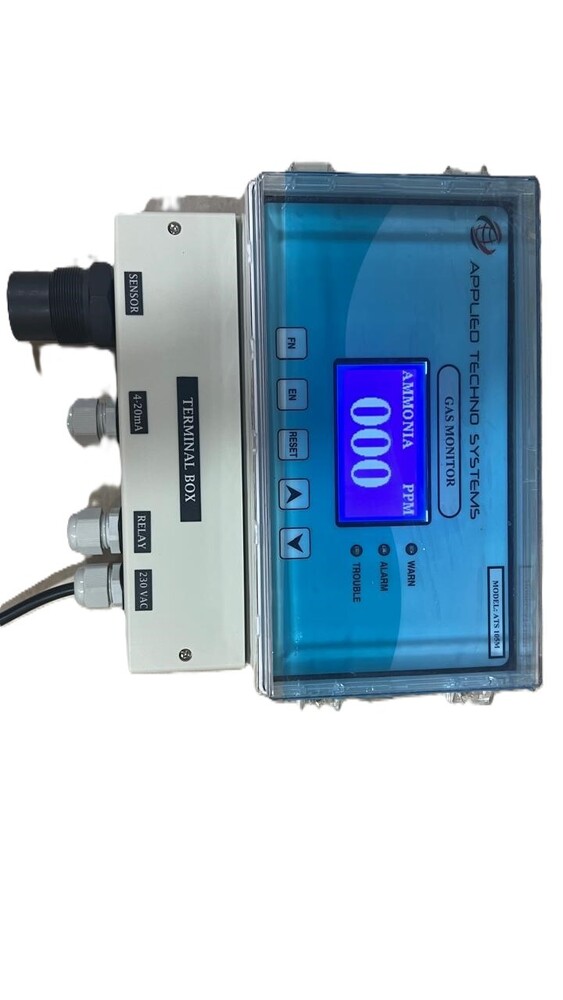

Multi Point Leak Detector is Multi channel gas Monitor for environmental Monitoring and Leak detection. The ATS-107M is an economical, yet versatile Multi channel controller with the features needed for monitoring a remote 4-20 mA gas sensor/transmitter or similar device. The instrument provides 24 VDC power, audio/visual alarms, alarm relays and other features. The ATS-107M is easy to install, designed for wall mounting and completely programmable from the front panel membrane switches.Accept Multi 4-20 mA Input from Remote Sensor/Transmitter.

Specifications:

Principle: Electrochemical, Solid State Semiconductor Catalytic and PID
Range: PPM/PPB or mg/M3
Resolution: 0.1 Unit or 1 Unit (Application based)
Sampling Method: Diffusion
Display: 128 X 64 Graphics LCD
Alarm; Relay Contact NO+NC
Analog outPut: 4-20mA
Digital outPut: RS 232, RS 485 and Modbus Communication Protocol
Power Source: 230V AC
Accuracy: +/2%
Response Time: <5 Second
Data Storage: 1000 or 10000
Sensor Life: 2-3 Years

Environmental:

Temperature:-15 degree Celsius
Humidity :< 85%RH
Atmosphere Pressure: 86- 106Kpa
Dimension in mm: 210 (W) X 180(H) X 110(D)
Weight: 1.2 KG
Warranty: One Year

Reliable Manual Leak Detection for Industry

The Multi Point Leak Detector provides an efficient manual solution for identifying leaks in industrial environments. With its sturdy MS construction, it ensures durability even in harsh conditions. Its wide voltage adaptability makes integration into different infrastructures seamless. This makes it suitable for factories, power plants, and processing units where consistent safety monitoring is essential.

Versatile Power Compatibility & Simple Operation

Operating on a voltage range from 110 to 215 volts, the Multi Point Leak Detector fits easily into diverse industrial electrical systems. Manual operation allows users direct control over the detection process, minimizing false alarms and maintaining system integrity.

FAQs of Multi Point Leak Detector:

Q: How does the Multi Point Leak Detector operate in industrial environments?

A: The detector functions manually, requiring an operator to engage its leak detection process at multiple critical points. Its design ensures thorough and reliable identification of potential leaks in expansive industrial settings.

Q: What materials are used in the construction of the Multi Point Leak Detector?

A: The device is constructed from robust MS (mild steel), which provides long-lasting durability and resistance to wear, even under demanding industrial conditions.

Q: When is the best time to use this leak detector in a facility?

A: It is ideal to use the detector during routine maintenance checks, after installation of new equipment, or whenever there is a suspected leak to prevent accidents and avoid costly downtime.

Q: Where can this leak detector be installed or utilized?

A: This leak detector is well-suited for use in factories, power plants, chemical processing facilities, and other industrial sites where leak detection at multiple points is critical for safety and compliance.

Q: What is the process for using the Multi Point Leak Detector?

A: The operator manually activates the detection mechanism at selected checkpoints. The units design enables straightforward monitoring and inspection at each designated location within the facility.

Q: What are the key benefits of using a Multi Point Leak Detector?

A: Benefits include prompt identification of leaks, prevention of hazardous incidents, minimized downtime, and compliance with industrial safety regulations. Manual operation allows for precise control and timely interventions.
