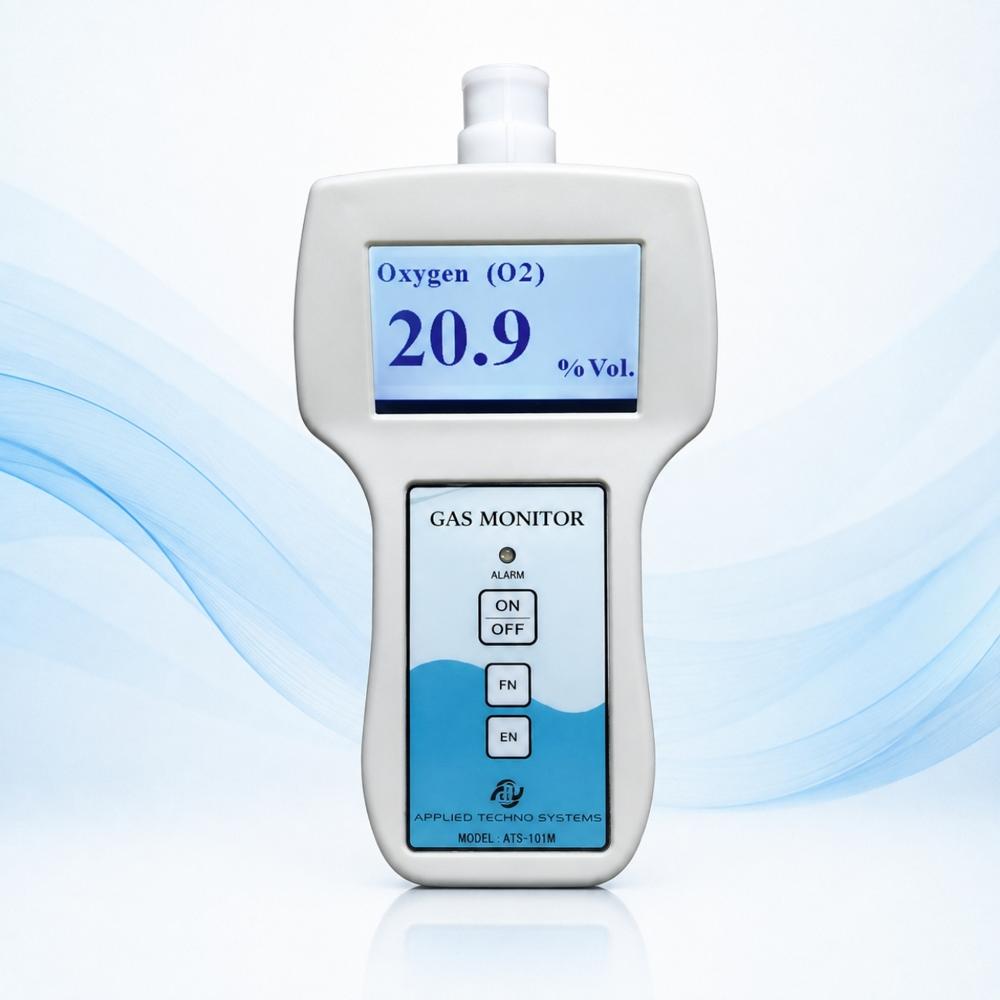

Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump
Portable Gas Detection Instrument with Pump

Portable Gas Detection Instrument with Pump

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Portable Gas Detection Instrument with Pump Specification

  • Response Time
  • <10 seconds
  • Specimen Size
  • Gas sample via probe
  • Resolution
  • 0.1% Vol.
  • Humidity
  • 0 to 95% RH (non-condensing)
  • Features
  • Built-in sampling pump, audible/visual alarm, portable design
  • Gas Pressure
  • 0.9 to 1.1 atm
  • Measuring Range
  • 0 to 30% Vol. (Oxygen), other gases available
  • Display Type
  • Large Blue Backlit LCD Display
  • Mounting Type
  • Handheld
  • Number of Specimens
  • Single
  • Power Supply
  • Rechargeable Battery / DC Adapter
  • Test Range
  • 0-30% Vol. for O2, other gases optional
  • Application
  • Oxygen detection, confined space, industrial safety
  • Temperature
  • -10C to +55C operating range
  • Accuracy
  • 1% of full scale
  • Max Height
  • 180 mm (approx.)
  • Operating Voltage
  • 3.7V rechargeable battery
  • Equipment Type
  • Portable Gas Detection Instrument with Pump
  • Port Size
  • 6mm gas inlet port
  • Automation Grade
  • Semi-Automatic
  • Interface Type
  • Digital keypad
  • Usage
  • Spot checking and continuous monitoring
  • Capacity
  • Portable, handheld instrument
  • Machine Weight
  • Approx. 300g (excluding batteries)
  • Control Mode
  • Automatic with manual override buttons
  • Sensor Type
  • Electrochemical (for O2) / optional for other gases
  • Enclosure Material
  • ABS engineering plastic
  • Data Logging
  • Optional, up to 1000 logs (depends on model)
  • Protection Class
  • IP54 (Splash proof)
  • Alarm Type
  • Audible and Visual
  • Sampling Method
  • Built-in pump-driven sample intake
  • Battery Life
  • Up to 18 hours continuous use



About Portable Gas Detection Instrument with Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Precision and Safety in Gas Detection

This instrument delivers accurate oxygen readings between 0 and 30% Vol., with 1% full scale accuracy and 0.1% resolution. Audible and visual alarms alert users immediately to hazardous conditions, fostering safer work environments especially during confined space entry or industrial operations.


Versatile Sampling and Monitoring

With a built-in pump and a 6mm gas inlet port, the device rapidly draws air samples for analysis, supporting both spot checks and prolonged monitoring. The digital keypad, blue backlit LCD, and semi-automatic control mode provide user-friendly operation in challenging conditions.


Durable Design for Industrial Use

Engineered with an ABS enclosure and IP54 splash-proof protection, this portable instrument withstands demanding environments. Its rechargeable battery supports up to 18 hours of continuous use, making it reliable for daily tasks, maintenance rounds, and emergency situations.

FAQ's of Portable Gas Detection Instrument with Pump:


Q: How does the portable gas detection instrument work for oxygen measurement?

A: The instrument uses an electrochemical sensor specifically calibrated for oxygen (O2) detection, with a built-in pump to draw air samples. The sensor provides real-time oxygen readings displayed on the large LCD screen, triggering audible and visual alarms if levels fall outside safe ranges.

Q: What types of alarms are provided by this instrument and how are they activated?

A: The device is equipped with both audible and visual alarms, which activate automatically when detected gas concentrations exceed preset thresholds. These alarms help ensure immediate attention to hazardous conditions, promoting quick response and enhanced workplace safety.

Q: When should I use this portable gas detector?

A: The detector is ideal for spot checking or continuous monitoring in confined spaces, industrial facilities, or any environment where oxygen levels must be verified. It is suitable for safety inspections, maintenance round checks, and operational monitoring.

Q: Where can this instrument be deployed and by whom?

A: This portable instrument can be used anywhere oxygen monitoring is required, such as factories, laboratories, tunnels, and storage areas. Users include safety personnel, technicians, exporters, importers, manufacturers, and service providers seeking reliable gas detection solutions.

Q: What is the process for sample intake and measurement?

A: Air samples are drawn through the 6mm gas inlet port using the built-in pump. The instrument automatically measures and displays the oxygen concentration within 10 seconds. Optional manual override buttons allow user control during sampling.

Q: How long does the battery last and what are the power supply options?

A: The rechargeable battery provides up to 18 hours of continuous operation. If required, the unit can also be powered via a DC adapter, ensuring flexibility in different working scenarios.

Q: What is the main benefit of using this portable gas detection instrument?

A: The primary benefits include rapid and accurate gas detection, robust alarms for safety, portability for easy deployment, and flexible data logging for up to 1000 records. Its durable design and intuitive controls make it a reliable companion for industrial safety and confined space monitoring.
