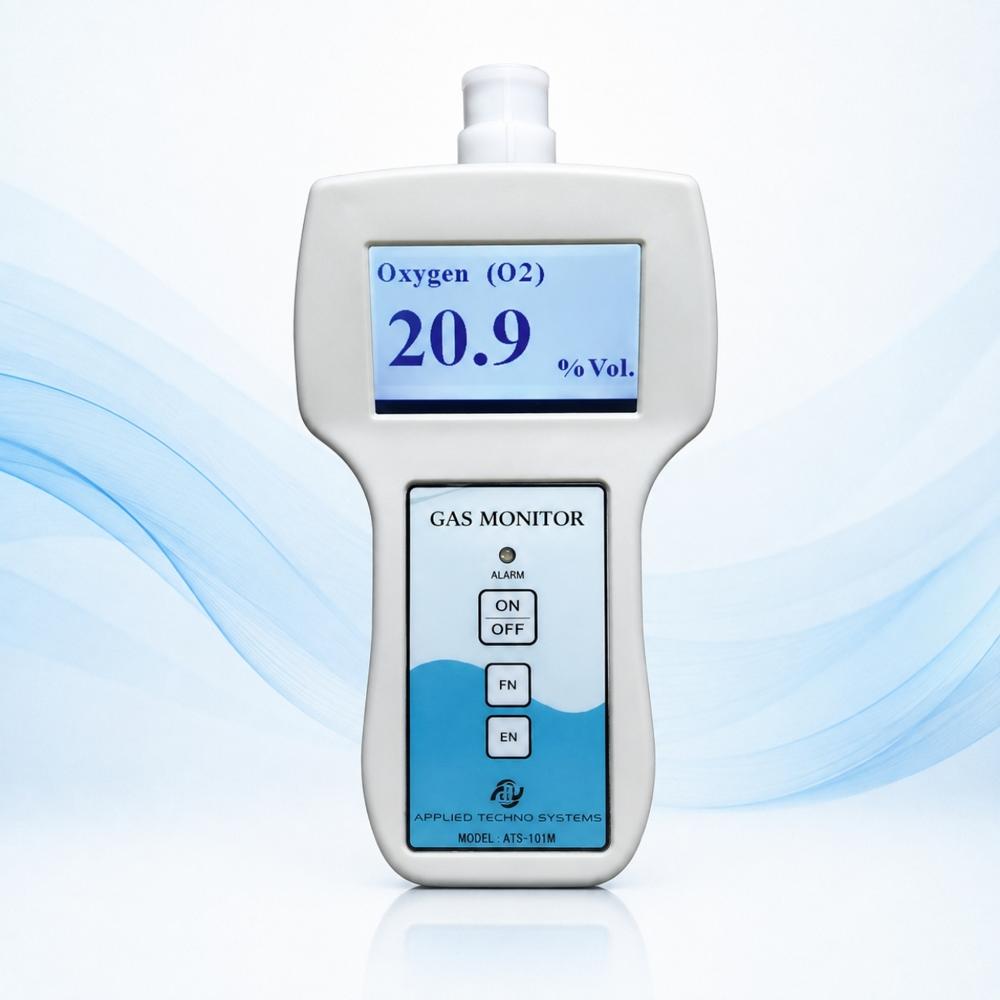

Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump
Portable Single Gas Detection Instrument with Pump

Portable Single Gas Detection Instrument with Pump

Price 42000.0 INR/ Unit

MOQ : 1 Unit

Portable Single Gas Detection Instrument with Pump Specification

  • Interface Type
  • Touch Switches, USB Charging
  • Automation Grade
  • Manual
  • Port Size
  • Standard inlet
  • Display Type
  • LCD Digital Display
  • Application
  • Industrial, Laboratory, Safety, Environmental Monitoring
  • Humidity
  • 0 to 95% RH, non-condensing
  • Accuracy
  • 0.1% Vol.
  • Temperature
  • -10C to 50C
  • Gas Pressure
  • Atmospheric
  • Power Supply
  • Rechargeable Li-ion Battery / USB Adapter
  • Features
  • Portable, Built-in Pump, Low/High Alarm, Easy Operation
  • Measuring Range
  • 0 to 30% Vol. (O2)
  • Operating Voltage
  • 3.7V DC
  • Response Time
  • <10 Seconds
  • Test Range
  • 0-30% Vol. (Oxygen)
  • Mounting Type
  • Handheld
  • Resolution
  • 0.1% Vol.
  • Usage
  • Oxygen Detection (O2), single gas monitoring
  • Capacity
  • Single Gas Measurement
  • Machine Weight
  • Approximately 300 grams
  • Control Mode
  • Manual
  • Battery Life
  • Up to 10 hours continuous operation
  • Body Material
  • ABS Plastic
  • Calibration
  • User Calibratable
  • Dimensions
  • 145 mm x 75 mm x 35 mm
  • Model
  • ATS-101M
  • Protection Level
  • IP54
  • Data Logging
  • Optional
  • Sampling Method
  • Pump-Driven Sampling
  • Sensor Type
  • Electrochemical
  • Equipment Type
  • Portable Gas Detection Instrument with Pump
  • Alarm,
  • Visual and Audible


Portable Single Gas Detection Instrument with Pump Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Delivery Time
  • 5-7 Days


About Portable Single Gas Detection Instrument with Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Precise Oxygen Measurement for Enhanced Safety

Using advanced electrochemical sensing, the ATS-101M delivers highly accurate oxygen measurement with a resolution of 0.1% Vol. and a rapid response time under 10 seconds. Its single gas monitoring capability and IP54 protection rating ensure reliable operation even in demanding environments. The instrument's visual and audible alarms offer immediate alerts, helping safeguard personnel and assets during industrial processes or laboratory work.


Convenient Operation and Flexible Power Supply

The ATS-101M features manual control via touch switches, making it easy to operate. Its rechargeable Li-ion battery and USB adapter enable up to 10 hours of non-stop usage, supporting extended fieldwork or shift coverage. The handheld mounting and compact dimensions facilitate portability while maintaining robust performance.

FAQ's of Portable Single Gas Detection Instrument with Pump:


Q: How does the ATS-101M Portable Gas Detection Instrument operate?

A: The ATS-101M uses a built-in pump to draw atmospheric samples through a standard inlet, allowing the electrochemical sensor to monitor oxygen concentration. Users control the instrument manually via touch switches, and results are displayed instantly on an LCD screen.

Q: What is the typical application of the ATS-101M?

A: This device is widely used for oxygen detection in industrial, laboratory, safety, and environmental monitoring settings, where accurate, portable single gas measurement is necessary for worker safety and process control.

Q: When should calibration be performed on the ATS-101M?

A: Calibration should be conducted periodically according to the manufacturer's recommendations or before each use in critical applications, as the instrument is user-calibratable to maintain accuracy and reliable performance.

Q: Where can the ATS-101M be deployed for gas detection?

A: ATS-101M is suitable for deployment in various environments, including factories, laboratories, confined spaces, or any location requiring portable oxygen monitoring. Its IP54 rating allows operation in conditions with dust and water splashes.

Q: What is the process for data logging and retrieval?

A: The data logging feature is optional. If enabled, the ATS-101M records measurement data, which can be accessed later for compliance, reporting, or analysis. Consult the user manual for specific retrieval procedures.

Q: How long does the battery last, and how is it recharged?

A: The built-in rechargeable Li-ion battery supports up to 10 hours of continuous operation and can be conveniently recharged via a USB adapter, enabling quick turnaround for frequent use.

Q: What are the benefits of using the ATS-101M for oxygen detection?

A: The ATS-101M delivers accurate, fast oxygen monitoring with visual and audible alarms, optional data logging, durable construction, and long battery life. Its portable design ensures safety and flexibility in diverse professional environments.
