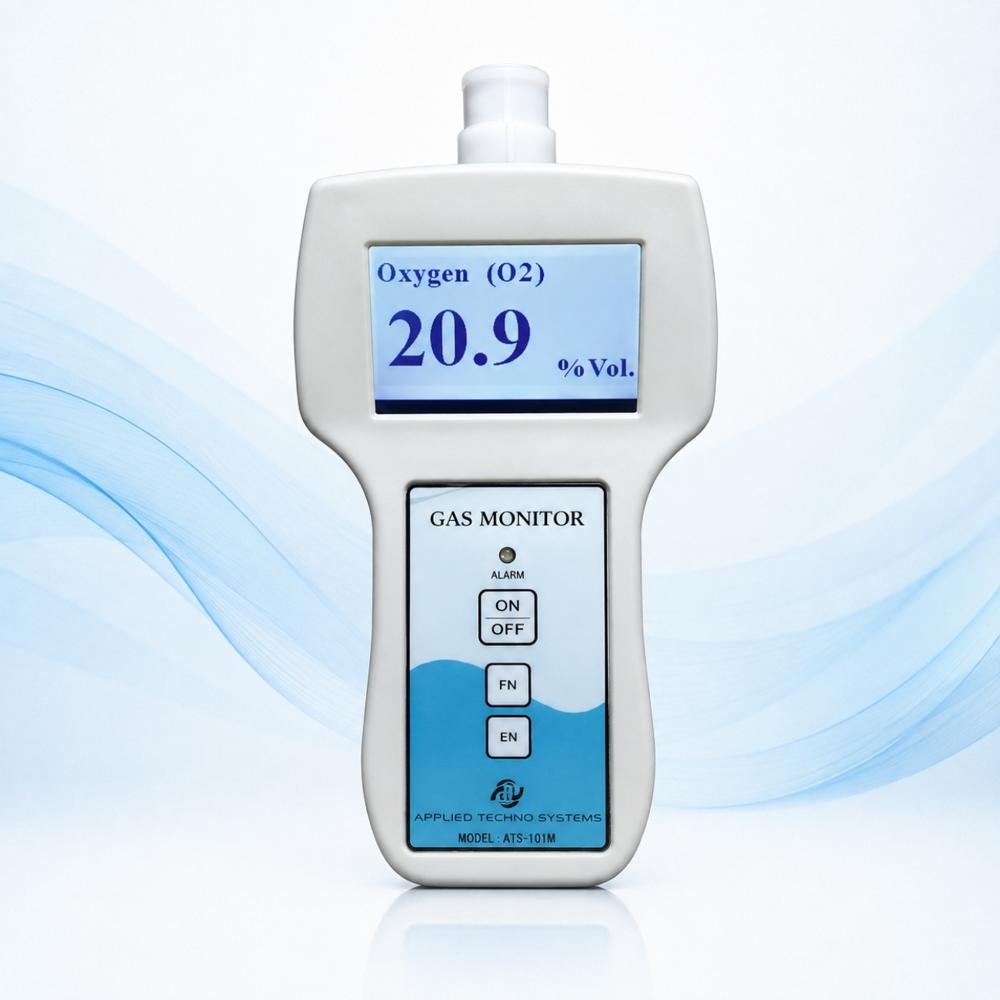

Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump
Single Gas Detector With Pump

Single Gas Detector With Pump

Price 40000.0 INR/ Unit

MOQ : 1 Unit

Single Gas Detector With Pump Specification

  • Operating Voltage
  • DC 3.7V (Li-ion battery)
  • Temperature
  • -10C to 50C
  • Number of Specimens
  • Single
  • Display Type
  • Large backlit LCD display
  • Response Time
  • 15 seconds
  • Test Range
  • Specific to gas sensor (Oxygen: 0-30%Vol)
  • Accuracy
  • 2% of full scale
  • Power Supply
  • Rechargeable Battery / AC Adapter
  • Mounting Type
  • Handheld Portable
  • Resolution
  • 0.1% Vol (for Oxygen)
  • Interface Type
  • Membrane Keypad
  • Equipment Type
  • Single Gas Detector With Pump
  • Port Size
  • Standard Inlet Filter for Sampling Tube
  • Features
  • Auto calibration, Audio/Visual Alarm, Data Hold
  • Application
  • Industrial Safety, Confined Space Monitoring, Gas Detection
  • Gas Pressure
  • Ambient atmospheric
  • Automation Grade
  • Automatic sampling with internal pump
  • Humidity
  • 0-95% RH (non-condensing)
  • Measuring Range
  • Oxygen: 0-30% Vol (Configurable for other gases)
  • Usage
  • Personal Gas Monitoring
  • Capacity
  • Handheld / Portable
  • Machine Weight
  • Approx. 300 grams
  • Control Mode
  • Manual
  • Calibration
  • User-calibratable with standard gas
  • Protection Rating
  • IP54 (Splash-resistant)
  • Charger Type
  • Micro USB / AC Adapter
  • Sampling Method
  • Internal pump suction
  • Gas Type Supported
  • Oxygen (O2), available for CO, H2S, Cl2, NH3 etc.
  • Sensor Type
  • Electrochemical sensor (for toxic gases and Oxygen)
  • Alarm Type
  • Audio and visual alarms for high/low readings
  • Operating Time
  • 8 hours per charge
  • Enclosure Material
  • High impact ABS plastic
  • Data Logging
  • Optional (Internal memory for event storage)



About Single Gas Detector With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Reliable Gas Detection for Industrial Safety

The Single Gas Detector With Pump delivers accurate gas monitoring with its advanced electrochemical sensors, capable of detecting oxygen and other toxic gases. Ideally suited for industrial environments and confined space entry, it combines automatic internal pump sampling with audible and visual alarms to ensure prompt response during hazardous conditions. Its rugged ABS plastic housing and compact, portable design guarantee easy handling and operational efficiency.


Convenient Operation and Flexible Power Options

With manual controls via a membrane keypad and a large backlit LCD display, users can easily manage, calibrate, and utilize the detector. A rechargeable Li-ion battery provides up to 8 hours of monitoring, and charging is possible via Micro USB or AC adapter. The device's internal memory offers optional data logging to track exposure and events, supporting compliance and documentation needs.

FAQ's of Single Gas Detector With Pump:


Q: How do I calibrate the Single Gas Detector With Pump?

A: Calibration is user-friendly and can be performed with standard calibration gases. The device features an auto calibration function accessible through the membrane keypad, ensuring accurate sensor readings for various gases.

Q: What types of gases can this detector monitor?

A: The detector supports monitoring of oxygen (O2) and is configurable for other toxic gases such as carbon monoxide (CO), hydrogen sulfide (H2S), chlorine (Cl2), and ammonia (NH3). Sensor type and test range vary per gas, providing flexible application.

Q: When should I use this gas detector in my workplace?

A: This device is recommended for use during industrial operations, confined space entry, and any situation requiring personal protection from hazardous gas exposures. It provides continuous monitoring to enhance safety during shifts or site work.

Q: Where can the Single Gas Detector With Pump be effectively deployed?

A: The detector is suitable for various worksites, including manufacturing plants, warehouses, and confined spaces such as tanks, tunnels, or utility vaults. Its splash-resistant design makes it ideal for harsh or demanding environments.

Q: What is the process for sampling and measuring gases?

A: The device uses internal pump suction to draw air samples through a standard sampling tube and inlet filter. The sensor analyzes the sample, and results are displayed within 15 seconds, ensuring rapid contamination detection.

Q: How does the data logging feature benefit users?

A: Optional internal memory enables event storage and data logging, allowing users to archive exposure records. This assists in compliance reporting, incident analysis, and long-term workplace safety documentation.

Q: What are the main usage and operational benefits of this detector?

A: Benefits include handheld portability, automatic sampling, quick response alarms, user calibration, and robust ABS enclosure for durability. It ensures accurate, real-time protection against dangerous gas levels during routine or emergency operations.
