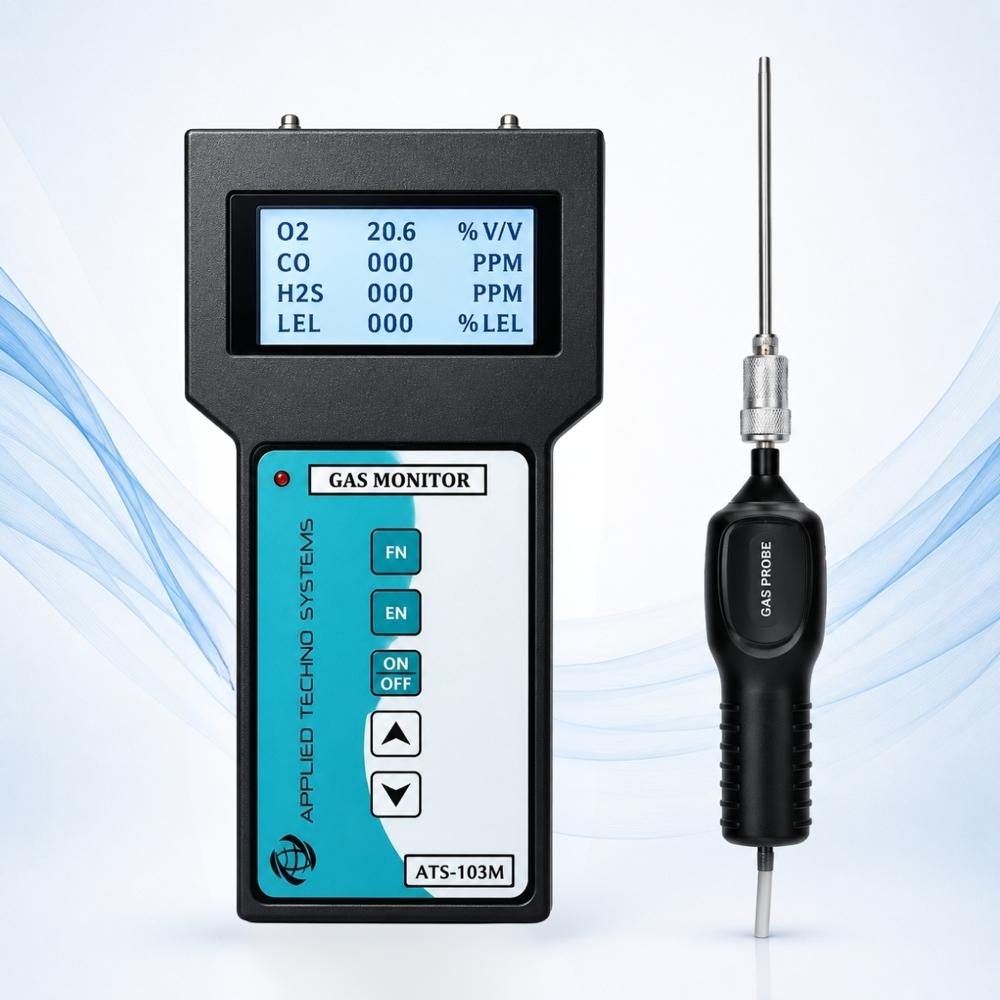

Multi Gas Safety Monitor with Pump
Multi Gas Safety Monitor with Pump
Multi Gas Safety Monitor with Pump
Multi Gas Safety Monitor with Pump
Multi Gas Safety Monitor with Pump
Multi Gas Safety Monitor with Pump

Multi Gas Safety Monitor with Pump

Price 74000.0 INR/ Unit

MOQ : 1 Unit

Multi Gas Safety Monitor with Pump Specification

  • Power Supply
  • Rechargeable Li-ion battery / External DC adapter
  • Application
  • Detection and simultaneous measurement of O2, CO, H2S, LEL gases
  • Test Range
  • O2: 0-25% V/V; CO: 0-1000 PPM; H2S: 0-100 PPM; LEL: 0-100% LEL
  • Automation Grade
  • Automatic
  • Accuracy
  • 2% F.S.
  • Temperature
  • -20C to +50C
  • Humidity
  • 0-95% RH (non-condensation)
  • Response Time
  • T90 <30 sec
  • Interface Type
  • RS232/USB (optional)
  • Display Type
  • Large Backlit LCD Display
  • Port Size
  • Probe Port 6 mm
  • Mounting Type
  • Handheld / Portable
  • Features
  • Auto calibration, audible and visual alarms, real time data, memory log, pump sampling
  • Equipment Type
  • Multi Gas Safety Monitor with Pump
  • Gas Pressure
  • Atmospheric pressure
  • Operating Voltage
  • Rechargeable 3.7V Li-ion
  • Measuring Range
  • O2: 0-25% V/V, CO: 0-1000ppm, H2S: 0-100ppm, LEL: 0-100% LEL
  • Resolution
  • O2: 0.1%, CO: 1ppm, H2S: 1ppm, LEL: 1% LEL
  • Usage
  • Industrial safety, confined space gas detection, personal safety
  • Capacity
  • Handheld
  • Machine Weight
  • Approx. 450 g (with battery)
  • Test Speed
  • Real-time monitoring
  • Control Mode
  • Microprocessor control
  • Calibration
  • Manual or Auto, user accessible
  • Data Logging
  • Yes, stored up to 1500 records
  • Alarm Sound Level
  • 80dB at 1 m
  • Dimensions
  • Approx. 180 x 70 x 32 mm
  • Sensor Type
  • Electrochemical & Catalytic Sensors
  • Storage Temperature
  • -20C to 60C
  • Protection Grade
  • IP54
  • Enclosure Material
  • ABS Plastic Housing
  • Warm Up Time
  • <30 seconds
  • Pump Flow Rate
  • 500 ml/min
  • Battery Life
  • More than 8 hours (continuous operation)
  • Alarm Type
  • Sound, Light & Vibration



About Multi Gas Safety Monitor with Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Advanced Monitoring and Safety

This handheld monitor leverages precision electrochemical and catalytic sensors to measure O2, CO, H2S, and LEL levels in real-time, alerting users with sound, light, and vibration alarms. With rapid test speeds and robust protection (IP54 rating), it is ideal for industrial workplaces, ensuring timely hazard detection and efficient responses.


Reliable Data Logging and Operation

Designed for environments requiring traceability, this device logs up to 1,500 measurement records, which can be accessed via RS232/USB (optional). Its rechargeable Li-ion battery offers over 8 hours of continuous operation and the warm-up time is under 30 seconds, minimizing downtime and enhancing productivity.


Easy Calibration and User Accessibility

Users can perform manual or automatic calibration directly from the device interface, simplifying maintenance and ensuring measurement reliability. The process is user-friendly, supporting both individual and team safety protocols across varied industrial applications.

FAQ's of Multi Gas Safety Monitor with Pump:


Q: How does the Multi Gas Safety Monitor detect gases and ensure user safety?

A: The monitor uses electrochemical and catalytic sensors to accurately detect O2, CO, H2S, and LEL gases in real-time, instantly alerting users through sound, light, and vibration alarms at 80dB. This comprehensive alarm system ensures swift responses to hazardous gas levels.

Q: What is the data logging capability of this gas safety monitor?

A: This device can store up to 1,500 records thanks to its integrated memory log. Users may review and export data through optional RS232/USB interfaces, supporting safety audits and reporting requirements.

Q: When should calibration be performed and how is it managed?

A: Calibration should be performed periodically or whenever sensor accuracy is questioned. The monitor supports both manual and automatic calibration, allowing users to maintain reliability directly via the device menu without specialized tools.

Q: Where is the Multi Gas Safety Monitor typically used?

A: It is designed for industrial environments, confined spaces, and any workplace requiring accurate gas detection. Its IP54-rated ABS housing and portable design allow for operation in diverse conditions, from emergency situations to routine maintenance.

Q: What is the procedure for operating the device in hazardous areas?

A: Upon powering on, the monitor warms up in under 30 seconds, then initiates real-time gas sampling via the internal pump. Users can easily navigate the backlit LCD display, review readings, and respond promptly to alarms, ensuring proper workplace safety protocols are upheld.

Q: What are the main benefits of using this Multi Gas Safety Monitor?

A: Key benefits include real-time monitoring of multiple gases, intuitive alarms, simple calibration, robust data logging, and portability. These features collectively improve industrial safety, regulatory compliance, and worker protection.
