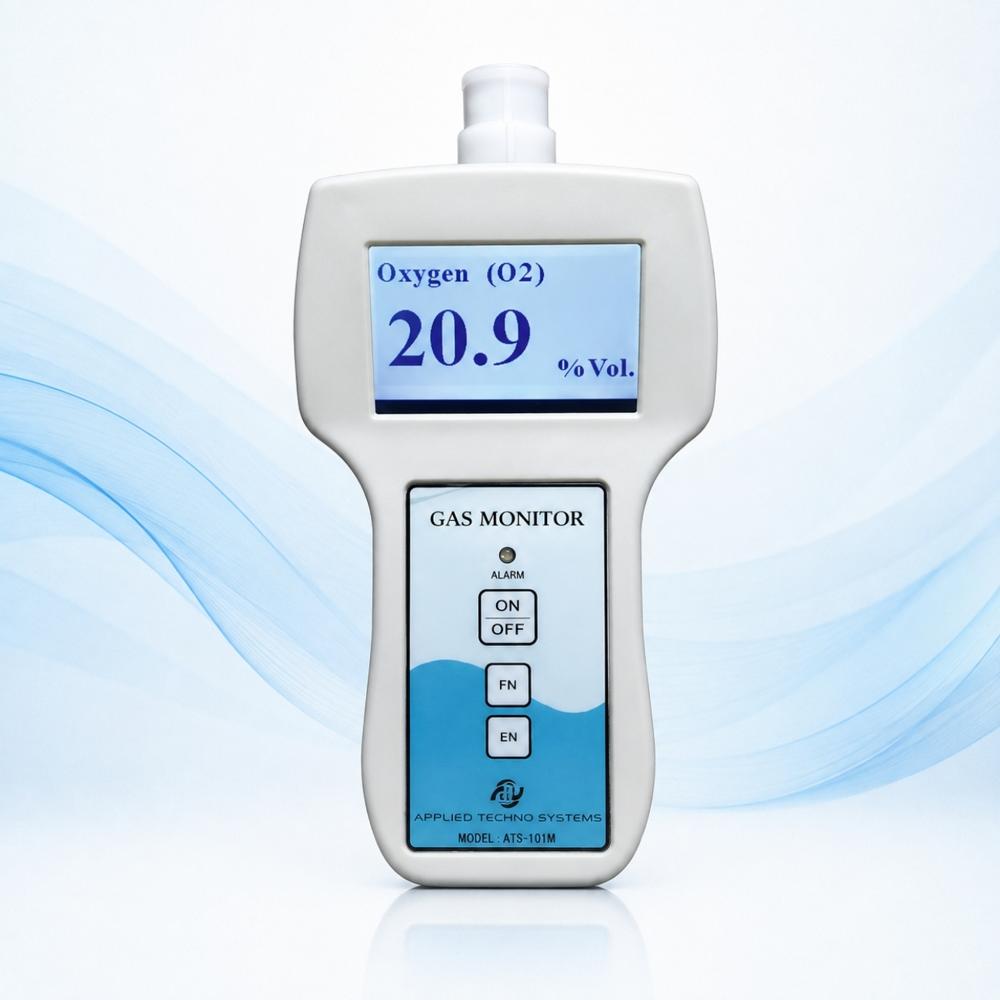

Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump
Single Gas Detection Instrument With Pump

Single Gas Detection Instrument With Pump

Price 44000.0 INR/ Unit

MOQ : 1 Unit

Single Gas Detection Instrument With Pump Specification

  • Operating Voltage
  • 3.7V Li-ion battery / 230V AC
  • Humidity
  • 0-95% RH (non-condensing)
  • Automation Grade
  • Automatic
  • Measuring Range
  • 0-30% Vol (O2)
  • Test Range
  • 0-30% Vol (Oxygen, O2)
  • Application
  • Personal safety, industrial safety, confined space monitoring
  • Features
  • Built-in pump, auto-calibration, audible/visual alarms, lightweight, portable
  • Gas Pressure
  • Atmospheric
  • Power Supply
  • Rechargeable lithium battery or 230V AC adaptor
  • Interface Type
  • Push-button interface
  • Resolution
  • 0.1% Vol
  • Mounting Type
  • Handheld
  • Equipment Type
  • Single Gas Detection Instrument with Pump
  • Number of Specimens
  • Single
  • Display Type
  • Large LCD digital display
  • Response Time
  • <20 seconds
  • Port Size
  • Standard sensor inlet with built-in pump
  • Accuracy
  • 0.5% Vol
  • Temperature
  • -10C to +50C
  • Usage
  • Personal or portable gas detection
  • Capacity
  • Portable, handheld unit
  • Machine Weight
  • Approx. 350 grams
  • Control Mode
  • Microprocessor-based control
  • Model
  • ATS-101M
  • Battery Life
  • Up to 12 hours (continuous use)
  • Alarm Indications
  • Audible buzzer, visual LED
  • Alarm Levels
  • User programmable (High/Low set points)
  • Data Logging
  • Optional
  • Ingress Protection
  • IP54
  • Sampling Method
  • Automatic suction/pump
  • Enclosure Material
  • High-impact ABS plastic
  • Sensor Type
  • Electrochemical (O2 sensor)
  • Operating Language
  • English
  • Calibration
  • Manual and automatic calibration supported



About Single Gas Detection Instrument With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Precise Oxygen Monitoring for Safety

The ATS-101M Single Gas Detection Instrument provides accurate measurement of oxygen levels with a high-resolution digital LCD display. Its electrochemical sensor ensures reliable readings for confined space and personal safety in industrial environments. Built-in alarms and automated detection make it an essential tool for maintaining safe work conditions.


Easy Operation and Calibration

Equipped with a user-friendly push-button interface, the ATS-101M allows for straightforward operation and simple switching between manual and automatic calibration modes. This flexibility ensures consistent accuracy and minimizes downtime, making it easy for operators to maintain high safety standards.


Portability Meets Durability

Weighing only 350 grams and built from high-impact ABS plastic, the ATS-101M is both lightweight and durable. It's built to withstand industrial environments and features an IP54 rating for dust and water resistance, ensuring reliable performance in various work conditions.

FAQ's of Single Gas Detection Instrument With Pump:


Q: How does the ATS-101M detect oxygen levels in the air?

A: The ATS-101M uses an advanced electrochemical sensor to measure oxygen concentrations from 0% to 30% Vol. It continuously draws ambient air using its built-in automatic pump, ensuring accurate and timely oxygen level readings in real time.

Q: What alarm indicators are present on this gas detector, and can I set my own alarm thresholds?

A: The ATS-101M features both an audible buzzer and visual LED alarm indicators. You can customize the alarm's high and low set points according to your safety requirements, alerting you promptly if oxygen levels move out of the safe range.

Q: When and how should I calibrate the ATS-101M gas detector?

A: Calibration should be performed regularly, as recommended by industry standards or per your company's safety protocol. The detector supports both manual and automatic calibration, accessible through its user-friendly push-button interface, to ensure ongoing measurement accuracy.

Q: Where is this gas detector typically used and what are its main applications?

A: This handheld, portable instrument is ideal for personal safety and industrial environments, including confined space monitoring, factories, and other workspaces where oxygen concentration needs continuous tracking to safeguard worker health.

Q: What benefits does the built-in pump provide?

A: The automatic suction pump enables consistent, active sampling of air, resulting in rapid and accurate detection even in areas with poor ventilation. This enhances safety by providing immediate response to oxygen level changes.

Q: How long can I use the ATS-101M on a single charge and what power supply options are available?

A: The instrument operates for up to 12 hours on its rechargeable lithium battery, and alternatively, can be powered using a 230V AC adaptor, offering extended flexibility during long shifts or fieldwork.

Q: What are the main advantages of the ATS-101M for portable gas detection?

A: The ATS-101M is lightweight, automatic, and easy to operate, with fast response time (<20 seconds). Its large LCD, user-programmable alarms, durable IP54 enclosure, and optional data logging provide comprehensive safety features for peace of mind in challenging environments.
