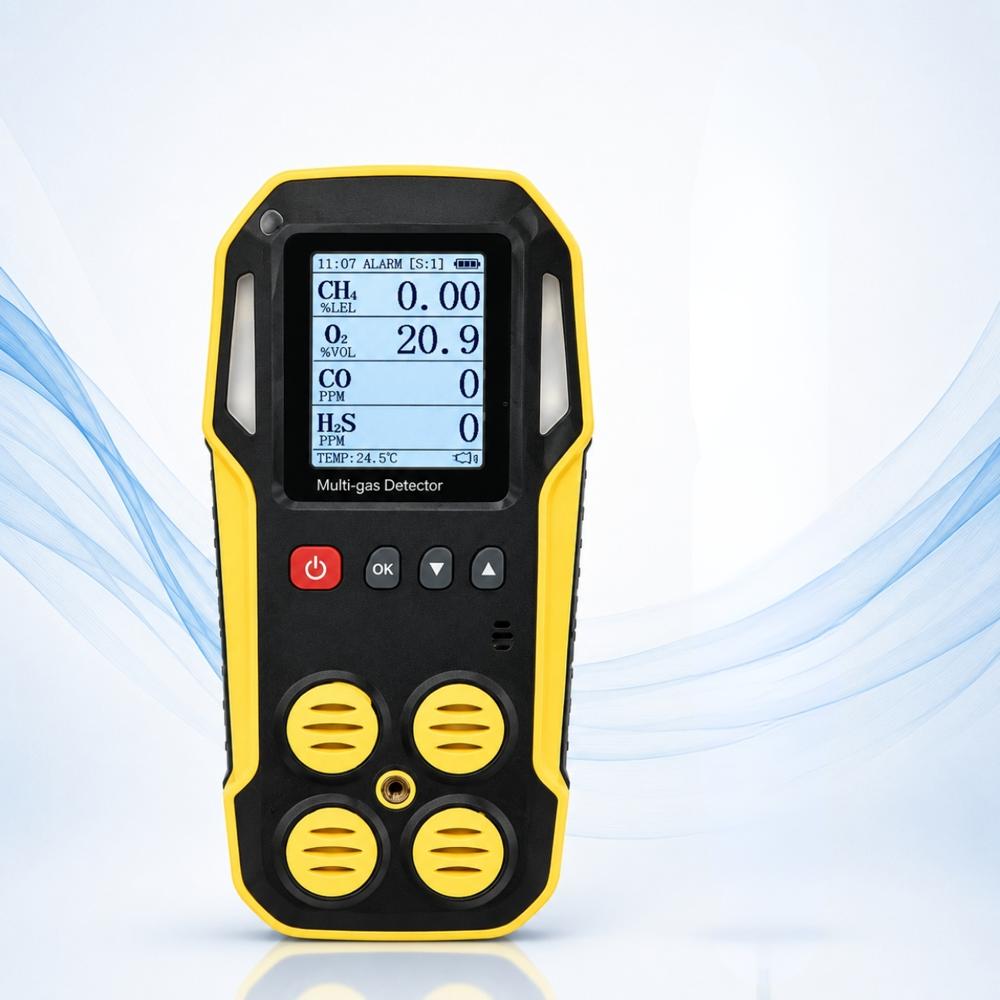

Multi Gas Detection Equipment
Multi Gas Detection Equipment
Multi Gas Detection Equipment
Multi Gas Detection Equipment
Multi Gas Detection Equipment
Multi Gas Detection Equipment

Multi Gas Detection Equipment

Price 46000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Detection Equipment Specification

  • Humidity
  • 0-95% RH, Non-condensing
  • Application
  • Industrial Safety, Confined Space Monitoring, Environmental Monitoring
  • Power Supply
  • Rechargeable Lithium-ion Battery, 3.7V
  • Port Size
  • Standard Gas Input Port
  • Max Height
  • 150mm
  • Mounting Type
  • Handheld/Portable
  • Accuracy
  • 3%FS
  • Test Range
  • CH4 (Methane): 0-100%LEL, O2 (Oxygen): 0-30%VOL, CO (Carbon Monoxide): 0-1000PPM, H2S (Hydrogen Sulfide): 0-100PPM
  • Automation Grade
  • Semi-Automatic
  • Resolution
  • CH4: 0.1%LEL, O2: 0.1%VOL, CO: 1PPM, H2S: 0.1PPM
  • Features
  • Real-Time Monitoring, Audible and Visual Alarms, Portable, Rechargeable Battery
  • Display Type
  • LCD Digital Display
  • Hardness
  • Shock-resistant Plastic
  • Gas Pressure
  • Atmospheric
  • Measuring Range
  • CH4: 0-100%LEL, O2: 0-30%VOL, CO: 0-1000PPM, H2S: 0-100PPM
  • Response Time
  • <30 seconds
  • Interface Type
  • Physical Buttons, Charging Port
  • Temperature
  • -20C to 50C
  • Operating Voltage
  • 3.7V DC
  • Usage
  • Gas Leak Detection, Air Quality Monitoring, Occupational Health
  • Capacity
  • 4-gas detection
  • Machine Weight
  • 350g
  • Test Speed
  • Instantaneous
  • Control Mode
  • Manual and Automatic
  • Color
  • Yellow and Black
  • Sampling Method
  • Diffusion or Pump (optional)
  • Calibration
  • Manual Calibration Supported
  • Sensor Type
  • Electrochemical & Catalytic Combustion
  • Standby Time
  • More than 20 hours
  • Equipment Type
  • Multi Gas Detection Equipment
  • Material
  • ABS Plastic Housing
  • Carrying Accessories
  • Wrist Strap, Charger, User Manual
  • Data Logging
  • Internal Storage
  • Battery Life
  • Up to 12 hours continuous use
  • Operating Language
  • English
  • Storage Temperature
  • -40C to 60C
  • Reset Function
  • Yes
  • IP Rating
  • IP65 (Dust and Water Resistant)
  • Alarm Type
  • Sound, Light, Vibration
  • Charging Time
  • 3 hours
  • Dimensions
  • 150mm x 75mm x 40mm



About Multi Gas Detection Equipment

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Versatile Four-Gas Monitoring

This multi gas detector uses advanced sensor technology to measure CH4, O2, CO, and H2S simultaneously. With a fast response time under 30 seconds and high-resolution digital readout, it provides reliable data for critical safety decisions in environments like factories, confined spaces, and hazardous worksites.


User-Friendly and Portable Design

Weighing just 350g and constructed with shock-resistant ABS plastic, this equipment is easy to carry and highly durable. The portable size, included wrist strap, and simple button interface make operation straightforward for daily use. Charging is convenient, taking just 3 hours, with up to 12 hours of continuous operation per charge.


Enhanced Safety with Multiple Alarms

Audible, light, and vibration alarms instantly alert users to gas hazards. Real-time monitoring and instant detection give workers maximum protection, even in loud or visually obstructed environments. IP65 certification means the device withstands exposure to dust and water, promising reliability in tough conditions.

FAQ's of Multi Gas Detection Equipment:


Q: How does the Multi Gas Detection Equipment detect and alert users to gas hazards?

A: This device uses both electrochemical and catalytic combustion sensors to continuously monitor and instantly detect target gases like methane, oxygen, carbon monoxide, and hydrogen sulfide. If gas concentrations approach hazardous levels, the equipment triggers audible, visual, and vibration alarms to quickly alert you.

Q: What type of environments is this gas detector suitable for?

A: With its robust IP65-rated housing and resistance to both dust and water, this multi gas detector is ideal for challenging industrial settings. It is commonly used in confined space monitoring, gas leak detection, air quality assessment, and other occupational safety applications.

Q: When should I calibrate the device and how is calibration performed?

A: Calibration should be performed periodically, typically before critical operations or according to your organization's guidelines. The equipment supports manual calibration, allowing you to ensure sensor accuracy using standard reference gases through the standard input port.

Q: Where can the internally logged data be accessed?

A: The device has internal storage for data logging, which can be accessed and reviewed directly from the LCD screen interface. For more in-depth analysis, data can typically be transferred via the device's communication port, depending on the model's configuration.

Q: What benefits does the device's rechargeable battery offer?

A: The built-in 3.7V lithium-ion battery provides up to 12 hours of continuous use and over 20 hours on standby. This rechargeable feature reduces the need for frequent battery replacement and ensures the detector is always ready for extended shifts or emergency situations.

Q: How is the sampling performed-can I switch between diffusion and pump modes?

A: Sampling is possible via diffusion or with an optional external pump, giving you flexibility based on environmental needs. Diffusion is suitable for most routine monitoring, while the pump accessory is useful for remote or confined locations.
