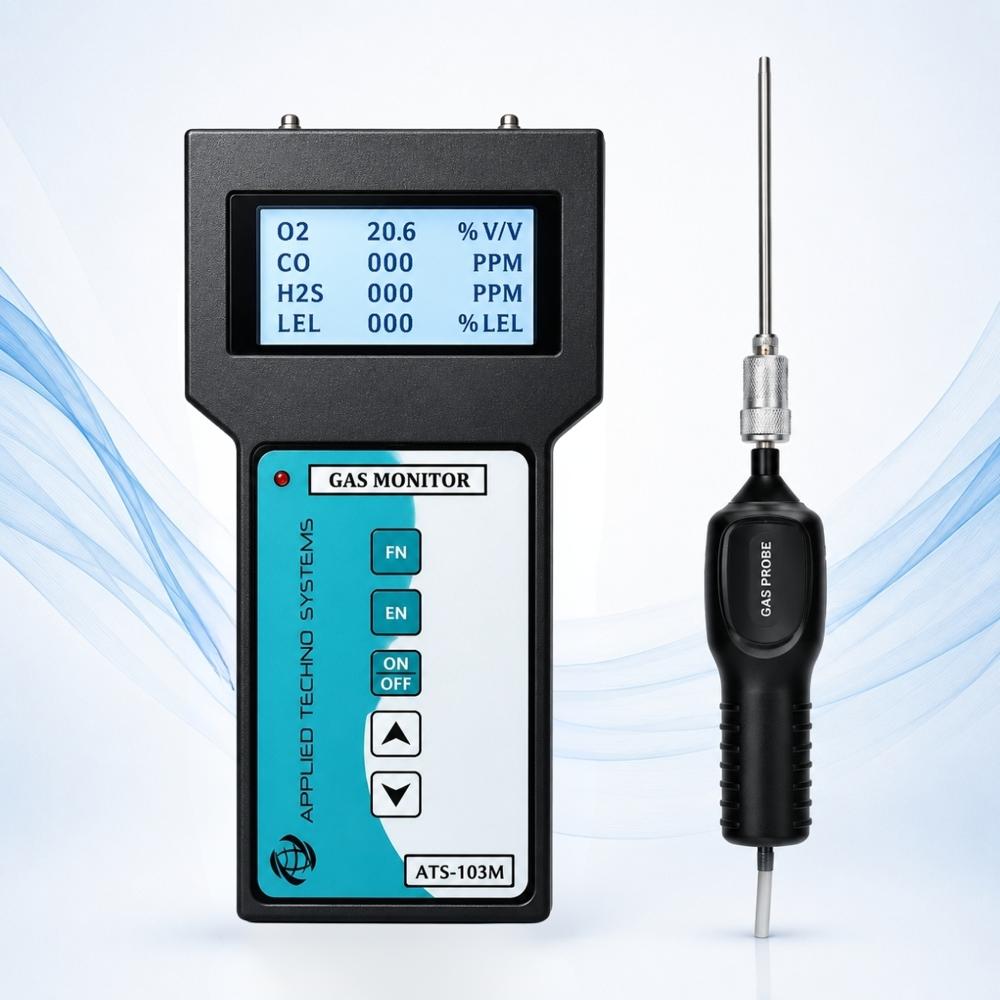

Portable Multi Gas Detection Instrument with Pump
Portable Multi Gas Detection Instrument with Pump
Portable Multi Gas Detection Instrument with Pump
Portable Multi Gas Detection Instrument with Pump
Portable Multi Gas Detection Instrument with Pump
Portable Multi Gas Detection Instrument with Pump

Portable Multi Gas Detection Instrument with Pump

Price 73000.0 INR/ Unit

MOQ : 1 Unit

Portable Multi Gas Detection Instrument with Pump Specification

  • Port Size
  • Standard Gas Inlet Port with probe attachment
  • Automation Grade
  • Automatic measurement
  • Interface Type
  • Physical membrane control keypad
  • Test Range
  • Multiple gases (O2, CO, H2S, LEL)
  • Specimen Size
  • N/A (air sampling)
  • Resolution
  • O2: 0.1%, CO: 1 ppm, H2S: 1 ppm, LEL: 1% LEL
  • Display Type
  • Large Digital LCD Display
  • Response Time
  • <30 seconds
  • Operating Voltage
  • DC 3.7V (Rechargeable battery)
  • Equipment Type
  • Portable Multi Gas Detection Instrument with Pump
  • Accuracy
  • O2 0.5% V/V, CO 5% of reading, H2S 5% of reading, LEL 3% LEL
  • Measuring Range
  • O2: 0-30% V/V, CO: 0-1000 ppm, H2S: 0-100 ppm, LEL: 0-100% LEL
  • Application
  • Gas detection in industrial and confined spaces, safety audits, environmental monitoring
  • Number of Specimens
  • 1 at a time
  • Features
  • Simultaneous multi-gas detection, audible/visual alarms, data logging, backlit display
  • Hardness
  • Rugged ABS enclosure
  • Gas Pressure
  • Ambient atmospheric pressure
  • Mounting Type
  • Handheld / Portable
  • Temperature
  • -10C to 50C
  • Humidity
  • 0~95% RH (non-condensing)
  • Power Supply
  • Rechargeable Battery / USB Powered
  • Usage
  • Personal and industrial safety
  • Capacity
  • Real-time multi-gas measurement
  • Machine Weight
  • Approx. 500g (with probe and battery)
  • Test Speed
  • Immediate (real-time analysis)
  • Control Mode
  • Push Button Interface
  • Calibration
  • Automatic and manual options
  • Dimensions
  • Approx. 160mm x 80mm x 40mm (main body)
  • Charging Time
  • Approx. 4 hours
  • Model Number
  • ATS-103M
  • Sensor Life
  • Typical 2 years (varies by sensor)
  • Enclosure Protection
  • IP54 rated
  • Alarm Mode
  • Audible, Visual, and Vibration
  • Gases Detected
  • O2, CO, H2S, LEL (combustibles)
  • Service Support
  • Onsite calibration and remote assistance
  • Working Principle
  • Electrochemical and catalytic sensors
  • Battery Life
  • Up to 12 hours continuous operation
  • Operation Language
  • English (multi-language available on request)
  • Sampling Method
  • Built-in Micro Pump (active sampling)
  • Memory
  • Internal data storage for event logging



About Portable Multi Gas Detection Instrument with Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Superior Multi-Gas Detection

Detect oxygen, carbon monoxide, hydrogen sulfide, and combustible gases simultaneously with high accuracy and immediate response. The ATS-103M's advanced electrochemical and catalytic sensors ensure precise readings in industrial and confined space environments.


User-Friendly Operation & Data Storage

The large digital LCD, intuitive push button interface, and automatic/manual calibration options make operation straightforward. Internal memory allows event logging for safety audits and record keeping, supporting compliance requirements and efficient workflow.


Robust Safety Features & Rugged Build

Audible, visual, and vibration alarms provide reliable alerts in hazardous conditions. With IP54 enclosure protection and an ABS housing, the instrument withstands tough environments. Up to 12 hours of operation and USB charging ensure convenience and continuous safety.

FAQ's of Portable Multi Gas Detection Instrument with Pump:


Q: How does the ATS-103M detect multiple gases simultaneously?

A: The ATS-103M uses advanced electrochemical and catalytic sensors to measure oxygen, carbon monoxide, hydrogen sulfide, and combustible gases in real time, ensuring accurate detection for multiple threats at once.

Q: What are the alarm modes available and how are users alerted?

A: This instrument offers audible, visual, and vibration alarms. These alert modes ensure the user is immediately notified of hazardous gas levels, even in noisy or low-visibility environments.

Q: When should the ATS-103M be calibrated, and what methods are available?

A: Calibration is recommended prior to use or periodically as per safety guidelines. The device supports both automatic and manual calibration, allowing flexibility for onsite or remote calibration processes.

Q: Where can the ATS-103M be used, and what is its typical application?

A: It is designed for industrial settings, confined spaces, safety audits, and environmental monitoring. Its rugged build and portable design make it suitable for use in challenging workplaces and personal safety tasks.

Q: What is the benefit of internal data storage and event logging?

A: Internal memory allows users to log detection events, which aids compliance with safety regulations and facilitates record-keeping for audits and safety reviews.

Q: How long does the device operate between charges, and what is its charging process?

A: The ATS-103M operates up to 12 hours continuously on a full charge, with a charging time of approximately 4 hours via USB recharge, ensuring reliability for extended monitoring sessions.

Q: What is the process for sampling gases with the ATS-103M?

A: Active sampling is achieved through a built-in micro pump, drawing ambient air through a standard gas inlet port with a probe attached for immediate and accurate measurement.
