Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector
Handheld Single Gas Detector

Handheld Single Gas Detector

Price 25500.0 INR/ Piece

MOQ : 1 Piece

Handheld Single Gas Detector Specification

  • Power Supply
  • Rechargeable Lithium Battery
  • Port Size
  • Standard air inlet
  • Interface Type
  • Micro USB (charging)
  • Temperature
  • -20C to +50C
  • Number of Specimens
  • Single gas
  • Max Height
  • Approx. 120mm
  • Measuring Range
  • Gas dependent, e.g., CO: 0-1000 ppm
  • Accuracy
  • 5% F.S.
  • Application
  • Industrial safety, confined space, gas leak detection
  • Display Type
  • LCD Digital Display
  • Mounting Type
  • Handheld, belt clip
  • Humidity
  • 0-95% RH (non-condensing)
  • Features
  • Portable, lightweight, high sensitivity, alarm function
  • Test Range
  • 0-1000 ppm (CO) (other gases optional)
  • Automation Grade
  • Manual
  • Operating Voltage
  • 3.7V DC
  • Response Time
  • 30 seconds
  • Gas Pressure
  • Atmospheric
  • Equipment Type
  • Handheld Single Gas Detector
  • Resolution
  • 1 ppm
  • Usage
  • Personal protection, field measurement
  • Capacity
  • Single gas type detection
  • Machine Weight
  • Approx. 130g
  • Test Speed
  • Instantaneous measurement
  • Test Width
  • Single point
  • Control Mode
  • Button operated
  • Storage Conditions
  • -25C to +55C
  • Sensor Type
  • Electrochemical sensor
  • Alarm Type
  • Sound, Light, Vibration
  • Operating Mode
  • Continuous
  • Ingress Protection
  • IP65
  • Battery Life
  • Quick charging, >8-10 hours continuous use
  • Data Logging
  • Optional / No
  • Dimensions
  • Approx. 120 x 60 x 30 mm
  • Color
  • Black and Yellow
  • Low Battery Alarm
  • Yes
  • Alarm Set Point
  • Adjustable for gas type

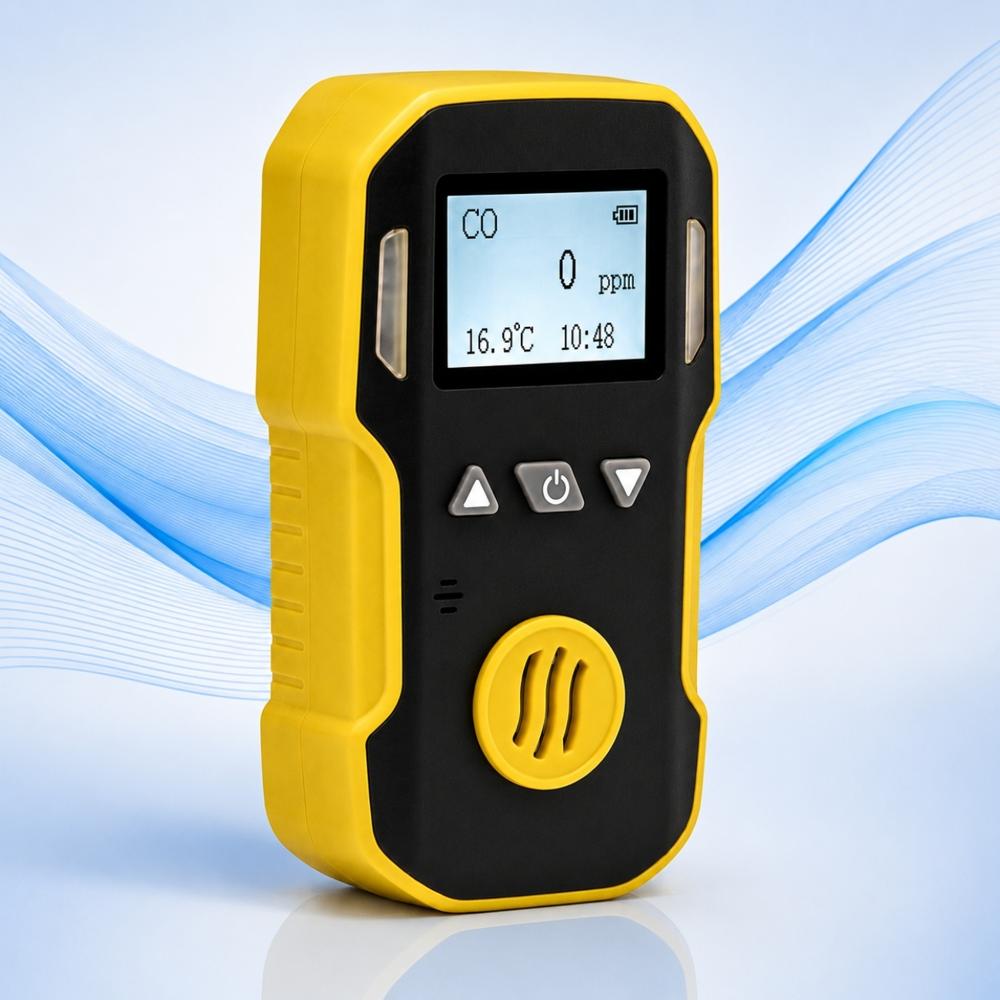

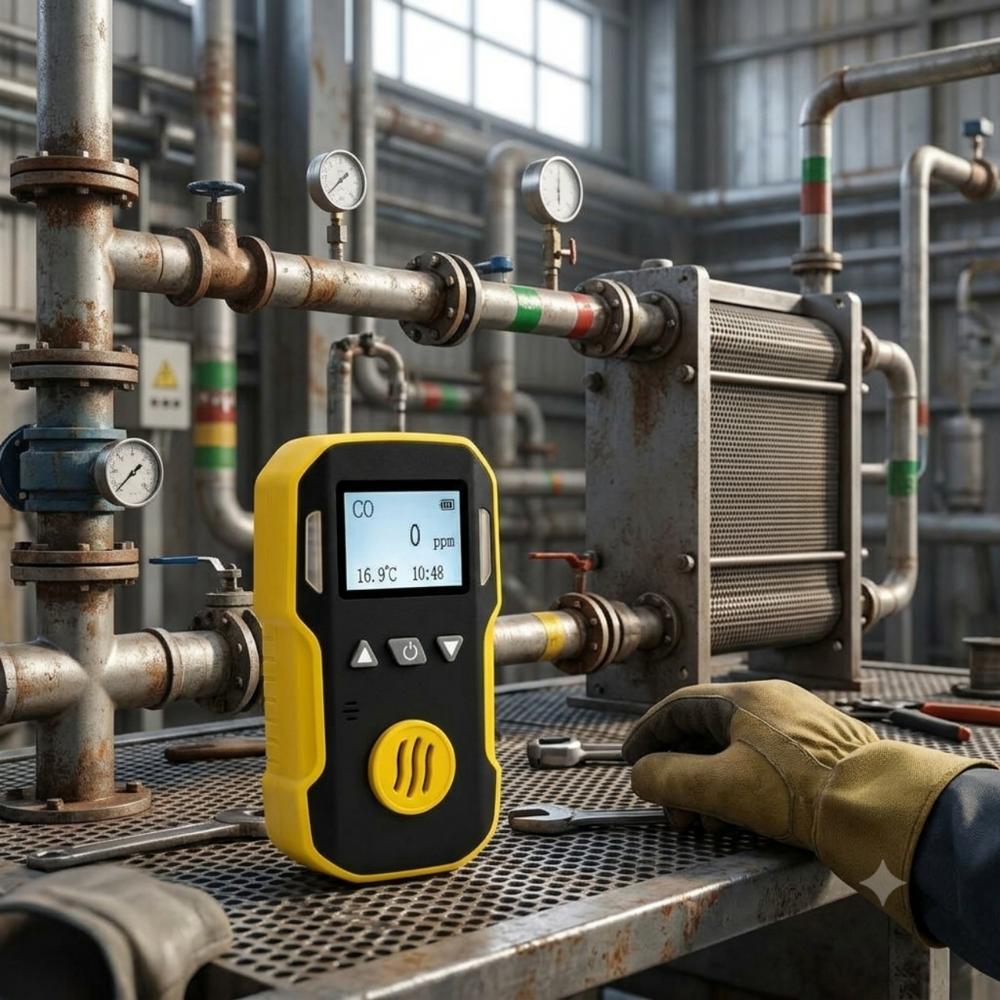

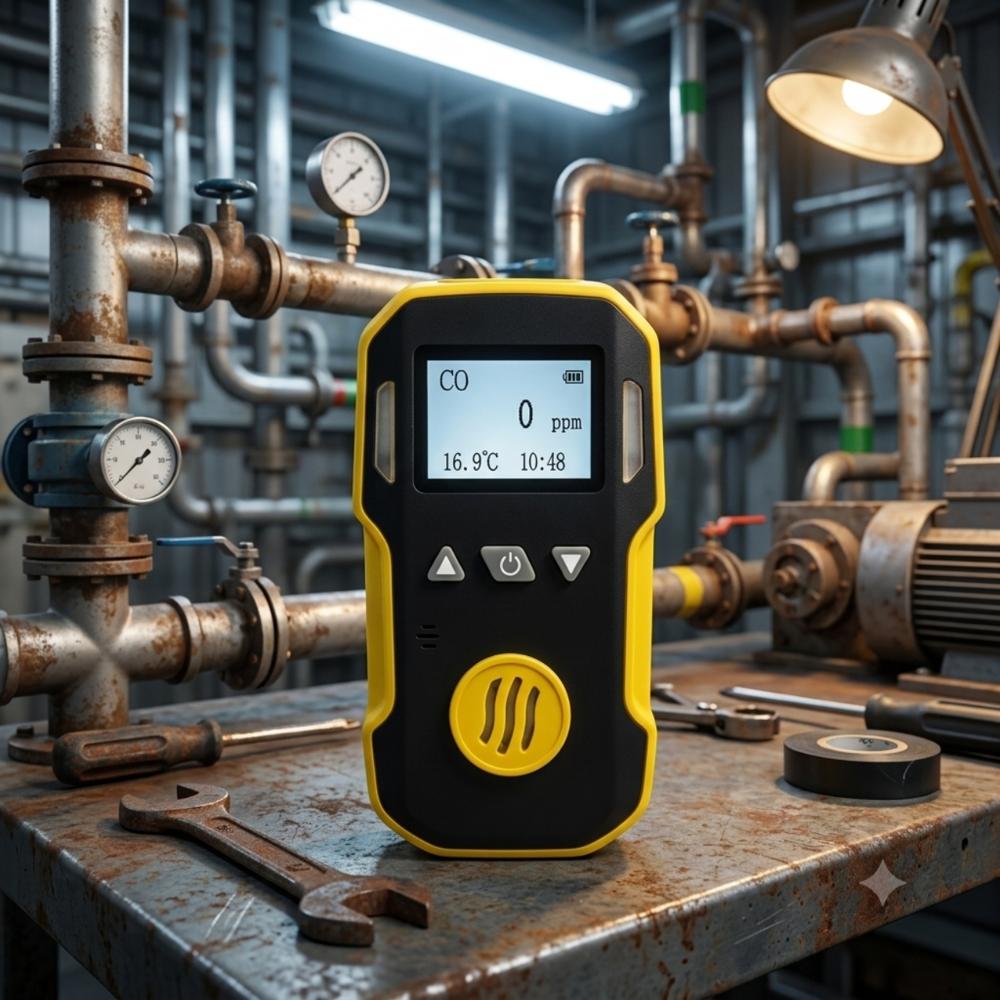

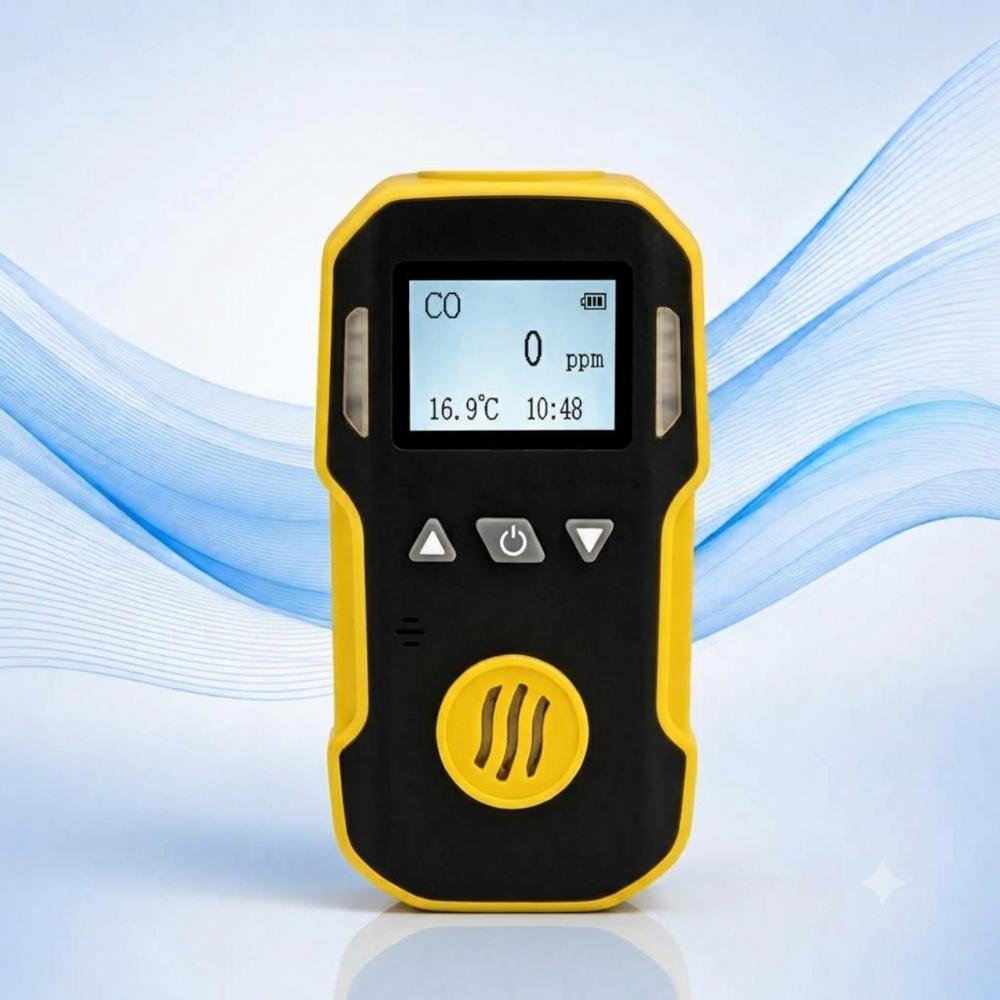

About Handheld Single Gas Detector

The Handheld Single Gas Detector is a compact, portable and easy-to-use gas detection instrument designed for the reliable monitoring of a specific gas in industrial and hazardous environments. The detector continuously monitors the selected gas and provides clear visual and audible alarms when the gas concentration reaches preset levels. Suitable for detecting oxygen, toxic, combustible and other hazardous gases, it is available in different gas configurations to meet application requirements. Its lightweight handheld design makes it suitable for personal safety, routine gas monitoring, leak detection and workplace safety across industries such as oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial applications. The diffusion-type design enables convenient personal gas monitoring without requiring a sampling probe or external attachments.

Robust Industrial Design for Daily Field Use

Constructed to withstand tough environments, this handheld detector meets IP65 protection standards, shielding it from dust and water. Its compact size and sturdy black-and-yellow casing, combined with a convenient belt clip, make it ideal for on-the-go professionals who require reliable, rapid gas detection without compromising portability or durability.


Advanced Safety Features with Rapid Response

Rapidly identify hazardous gas leaks with the electrochemical sensor's instantaneous measurement and fast 30-second response time. The detector alarms users through sound, light, and vibration, ensuring alerts are promptly noticed. Low battery notifications, adjustable set points for various gases, and manual control promote efficient and safe field operations.


User-Friendly Operation and Versatile Power Solutions

Operating this single gas detector is straightforward-its button interface and digital LCD display simplify readings and settings adjustments. Powered by a rechargeable lithium battery, it delivers up to 10 hours of continuous use and supports fast recharging via Micro USB, providing flexibility and reduced downtime for busy industrial teams.

FAQ's of Handheld Single Gas Detector:


Q: How do I operate the handheld single gas detector?

A: To operate the detector, simply turn it on using the button controls. The device will immediately begin monitoring for the target gas, displaying readings on the LCD screen. If hazardous levels are detected, it emits sound, light, and vibration alarms for instant awareness.

Q: What kind of gases can this device monitor, and how many at a time?

A: This detector is designed for single-gas monitoring. It primarily detects carbon monoxide (CO) from 0-1000 ppm, but versions for other gases are available. Only one gas type is monitored per device at a time.

Q: When should I use the single gas detector?

A: The device is ideal for use before and during entry into confined spaces, during maintenance, and anywhere there is risk of gas leaks-especially in industrial safety settings where real-time personal gas detection is required.

Q: Where is the best place to position or carry the detector during use?

A: The detector should be attached to your belt or held close to your breathing zone for optimal performance, ensuring it samples the ambient air you are exposed to. Its belt clip enables secure and convenient placement.

Q: What is the battery life and how do I recharge the device?

A: You can expect more than 8-10 hours of continuous operation from one full charge. Simply recharge the device quickly using the Micro USB interface and the built-in rechargeable lithium battery.

Q: What are the benefits of using this detector for personal protection?

A: This detector provides rapid, highly sensitive detection of hazardous gases, instant alarms, and robust protection in demanding environments, helping prevent exposure-related accidents and enhancing workplace safety.

Q: Does the detector require any data logging or is it suitable for instant measurement only?

A: This model focuses on instantaneous measurement with highly visible real-time readings. Data logging is optional or unavailable, making it ideal for immediate detection and alert applications rather than long-term trend analysis.
