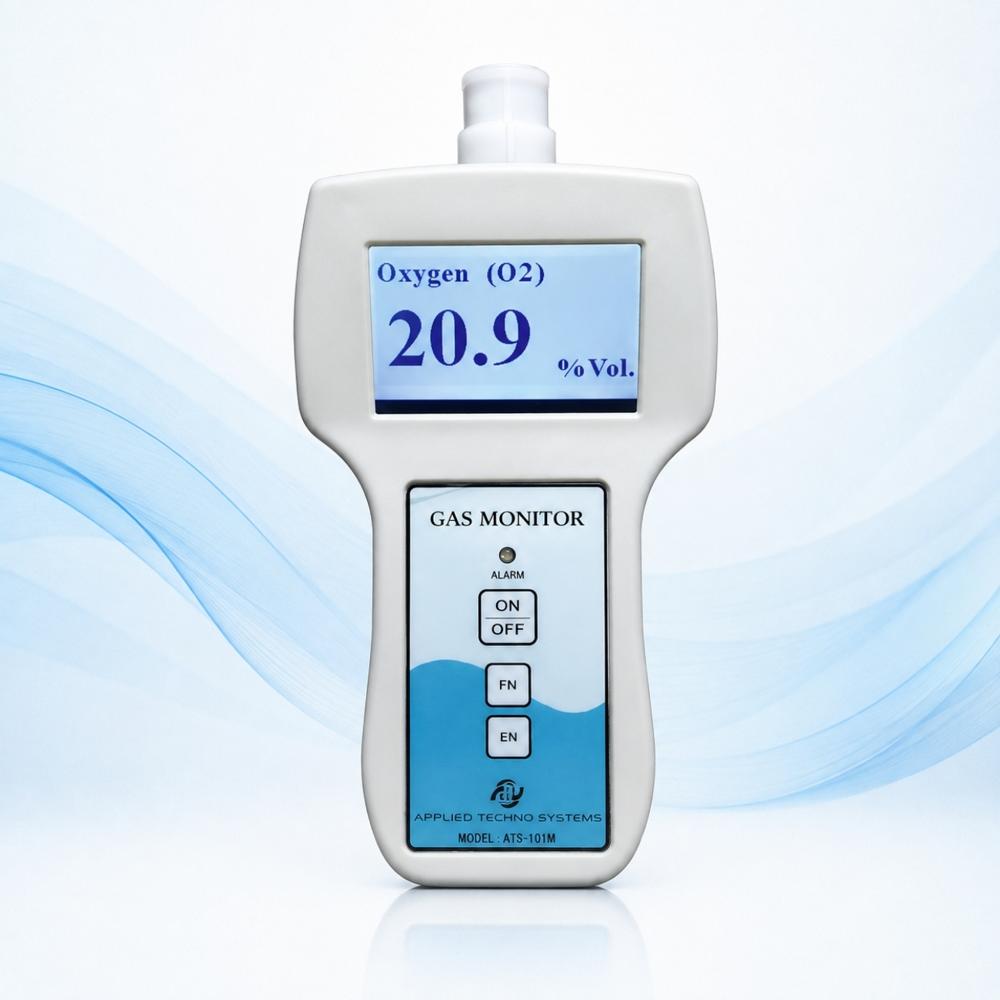

Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump
Portable Gas Detector With Pump

Portable Gas Detector With Pump

Price 45000.0 INR/ Piece

MOQ : 1 Piece

Portable Gas Detector With Pump Specification

  • Mounting Type
  • Handheld
  • Resolution
  • 0.1% Vol.
  • Equipment Type
  • Portable Gas Detector with Pump
  • Features
  • Built-in sampling pump, large digital display, audible/visual alarm, lightweight
  • Application
  • Measurement of Oxygen concentrations in air
  • Measuring Range
  • 0-30% Volume (O2)
  • Number of Specimens
  • Single sample at a time
  • Display Type
  • Digital LCD
  • Humidity
  • 0-95% RH (Non-condensing)
  • Response Time
  • 15 seconds
  • Automation Grade
  • Manual
  • Operating Voltage
  • 3.7V (Li-ion battery)
  • Gas Pressure
  • Atmospheric pressure operation
  • Power Supply
  • Rechargeable Li-ion battery, 3.7V
  • Test Range
  • Oxygen (O2): 0-30% Vol.
  • Accuracy
  • 0.5% Vol.
  • Temperature
  • Operating: -10C to 50C
  • Port Size
  • Suitable for sampling tube connection (6 mm OD)
  • Usage
  • Industrial area and confined space gas monitoring
  • Machine Weight
  • Approx. 400g (including battery)
  • Control Mode
  • Manual with push-button controls
  • Alarm Indications
  • Visual and audible alarm (LED & buzzer)
  • Dimensions
  • Approx. 220mm x 90mm x 40mm
  • Sampling Method
  • Automatic sampling with integrated pump
  • Battery Charging Time
  • About 4 hours
  • Model Number
  • ATS-101M
  • Pump Flow Rate
  • Approx. 500 ml/min
  • Calibration
  • User calibratable via front panel buttons
  • Battery Working Time
  • 8-10 hours continuous operation
  • Data Logging
  • Optional capability (model dependent)
  • Alarm Setting
  • Adjustable high and low concentration alarm
  • Casing Material
  • ABS plastic, high impact resistant
  • Sensor Type
  • Electrochemical (for Oxygen O2 monitoring)



About Portable Gas Detector With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Precise Oxygen Monitoring Anywhere

Engineered for industrial and confined space applications, the ATS-101M enables immediate measurement of oxygen concentration in ambient air. Its built-in pump allows for automatic sampling, ensuring accurate readings even in challenging locations. The device's compact and lightweight design ensures it is easy to carry and operate in the field, helping operators maintain safety compliance wherever they go.


User-Friendly Operation and Maintenance

With front-panel calibration buttons and a large digital LCD, the ATS-101M simplifies day-to-day operation and maintenance. Users can adjust alarm thresholds based on situational requirements and quickly respond to visual and audible alerts. The rechargeable Li-ion battery grants up to 10 hours of continuous monitoring, with a fast 4-hour recharge cycle, making it an ideal choice for extended field work.

FAQ's of Portable Gas Detector With Pump:


Q: How does the built-in sampling pump enhance oxygen detection accuracy?

A: The integrated pump automatically draws air into the sensor at a regulated flow of approximately 500 ml/min, ensuring consistent sampling and more accurate oxygen concentration measurements, even from hard-to-reach or confined areas.

Q: What is the process for calibrating the ATS-101M oxygen gas detector?

A: Calibration is user-friendly and performed via the front panel buttons. Simply follow the step-by-step instructions in the manual to initiate calibration, ensuring measurement accuracy and ongoing reliable performance.

Q: When should I adjust the high and low oxygen alarm settings?

A: Alarm limits should be set in accordance with your workplace safety requirements or standard regulations. Adjust them whenever site conditions or operational guidelines change for continuous, tailored protection.

Q: Where can the ATS-101M portable gas detector be used?

A: This device is suitable for a wide range of environments, including industrial areas, confined spaces, and workplaces where oxygen concentration must be closely monitored to ensure worker safety.

Q: What benefits does the large digital LCD display offer?

A: The display ensures clear and immediate visibility of oxygen concentration, alarm status, and device settings, allowing users to respond quickly to any changes in ambient gas levels.

Q: How long does the battery last and how quickly can it be recharged?

A: The rechargeable Li-ion battery supports 8 to 10 hours of continuous operation and requires around 4 hours to fully recharge, providing extended use during long shifts.
