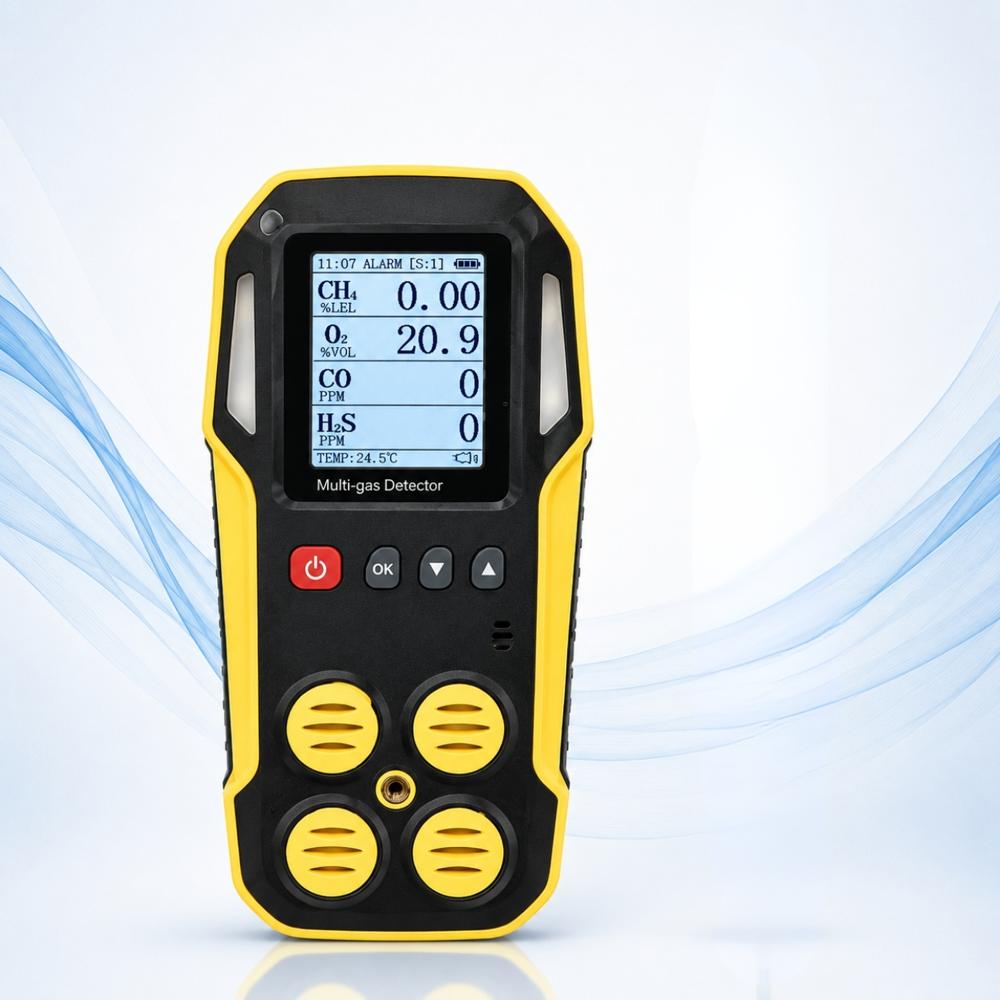

Multi Gas Monitoring Instrument
Multi Gas Monitoring Instrument
Multi Gas Monitoring Instrument
Multi Gas Monitoring Instrument
Multi Gas Monitoring Instrument
Multi Gas Monitoring Instrument

Multi Gas Monitoring Instrument

Price 48000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Monitoring Instrument Specification

  • Humidity
  • 0-95% RH non-condensing
  • Equipment Type
  • Handheld Multi-Gas Monitoring Instrument
  • Resolution
  • 0.01% (O2), 1ppm (CO, H2S), 0.1% LEL (CH4)
  • Display Type
  • LCD Digital Display
  • Accuracy
  • 3% F.S. (typical)
  • Features
  • Portable, Rechargeable, Real-time multi-gas measurement, Alarm systems (visual, audible, vibration)
  • Mounting Type
  • Handheld / Portable
  • Measuring Range
  • CH4, O2, CO, H2S
  • Port Size
  • Standard gas inlet
  • Test Range
  • CH4 (0-100% LEL), O2 (0-30% VOL), CO (0-1000ppm), H2S (0-100ppm)
  • Operating Voltage
  • 3.7V DC
  • Gas Pressure
  • Atmospheric
  • Power Supply
  • Rechargeable Li-ion battery (3.7V, 1800mAh)
  • Automation Grade
  • Automatic
  • Response Time
  • 30 seconds
  • Temperature
  • -20C to +50C
  • Application
  • Industrial gas detection, confined space monitoring, environmental safety
  • Interface Type
  • Micro-USB charging
  • Usage
  • Personal Protection, Area Monitoring
  • Machine Weight
  • Approx. 400g
  • Control Mode
  • Microprocessor-based control
  • Language
  • Multi-language support
  • Storage Temperature
  • -40C to +60C
  • Sensor Life
  • 2 years (typical for electrochemical sensors)
  • Data Logging
  • Yes, built-in memory
  • Battery Life
  • Up to 8 hours continuous operation
  • Calibration
  • User calibration available
  • Alarm Mode
  • Sound, Light, Vibration
  • IP Rating
  • IP65 (Dustproof/Water-resistant)



About Multi Gas Monitoring Instrument

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Comprehensive Gas Detection

Detect multiple hazardous gases including methane, oxygen, carbon monoxide, and hydrogen sulfide with high accuracy. The device covers a broad measurement range, making it suitable for diverse industrial applications such as confined spaces and environmental safety monitoring.


Reliable Alarm and Safety Features

Be promptly alerted to gas hazards with built-in sound, light, and vibration alarms. The robust IP65 rating ensures durability in dusty or wet conditions, and the portable design makes it perfect for on-site use in demanding environments.


User-Friendly and Portable Operation

Enjoy up to 8 hours of continuous operation. The multi-language interface, LCD digital display, and lightweight construction allow for comfortable handheld use. User calibration and data logging simplify operation and record-keeping.

FAQ's of Multi Gas Monitoring Instrument:


Q: How does the alarm system work on the Multi Gas Monitoring Instrument?

A: The instrument uses three alarm modes: audible (sound), visual (light), and vibration. When hazardous gas levels are detected, the device immediately activates all three alarms to ensure you are promptly informed, even in noisy or low-visibility environments.

Q: What is the process for calibrating the instrument, and how often should it be done?

A: User calibration is available and should be performed periodically according to your company's safety protocols or whenever accuracy is in question. The process involves placing the device in a known gas concentration and following simple on-screen instructions to adjust calibration settings.

Q: Where can this multi-gas detector be used?

A: The monitor is ideal for industrial gas detection, confined space entry, and environmental safety in sectors such as manufacturing, mining, oil and gas, and chemical plants. Its IP65 rating allows operation in dusty or occasionally wet areas.

Q: What gases can the device detect and what are their measurement ranges?

A: This instrument can simultaneously measure CH4 (0-100% LEL), O2 (0-30% VOL), CO (0-1000ppm), and H2S (0-100ppm) with high accuracy and resolution, enabling comprehensive safety assessments.

Q: How long does the battery last and what type of charging interface does it use?

A: It operates up to 8 hours on a full charge using a built-in 3.7V, 1800mAh Li-ion battery. The device is recharged via a Micro-USB interface for convenient, universal charging.

Q: What benefits does data logging provide with this instrument?

A: Data logging allows you to record and store measurement results directly on the device for later review or reporting, which is valuable for compliance, auditing, and trend analysis in workplace safety management.

Q: Is the device suitable for use in extreme temperatures or high humidity?

A: Yes, it is designed to function reliably between -20C and +50C and can be stored from -40C to +60C. It operates effectively in environments with 0-95% relative humidity (non-condensing).
