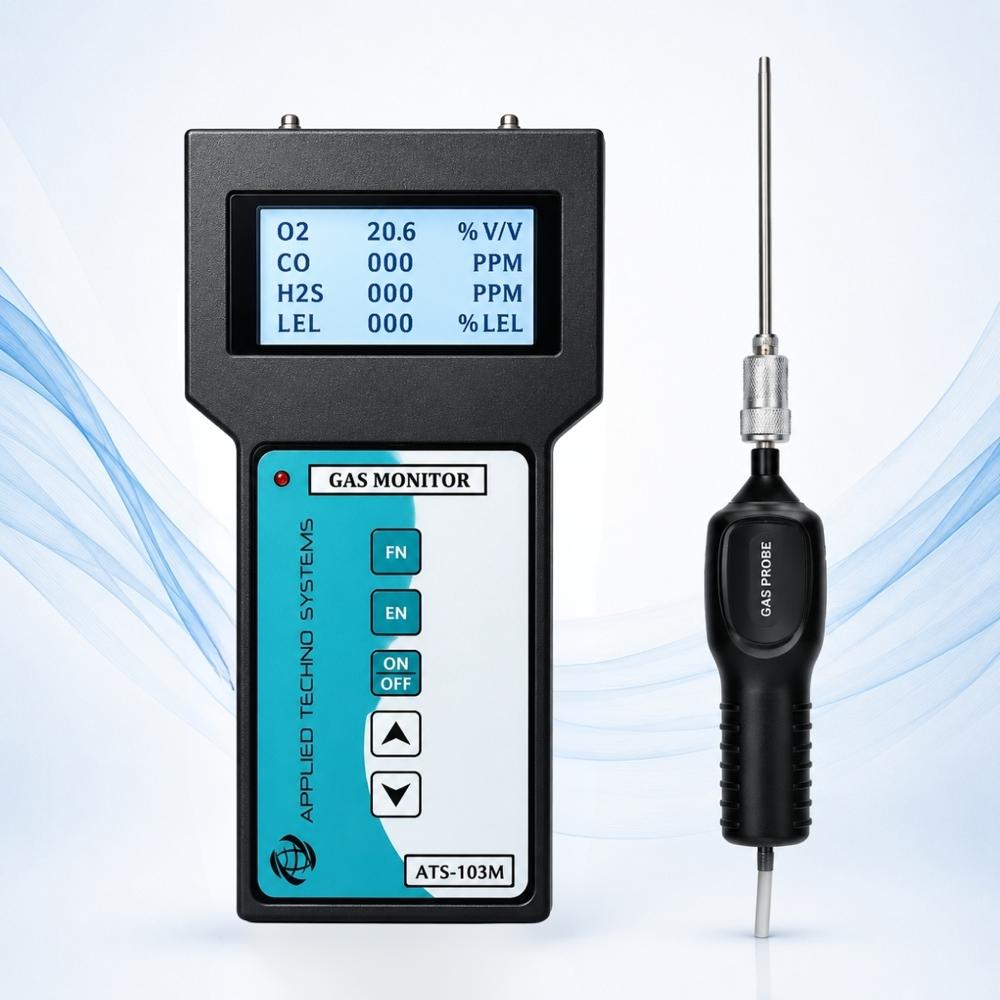

Personal Gas Detector With Pump
Personal Gas Detector With Pump
Personal Gas Detector With Pump
Personal Gas Detector With Pump
Personal Gas Detector With Pump
Personal Gas Detector With Pump

Personal Gas Detector With Pump

Price 75000.0 INR/ Piece

MOQ : 1 Piece

Personal Gas Detector With Pump Specification

  • Hardness
  • Impact-resistant ABS enclosure
  • Max Height
  • 200mm (including probe, approx.)
  • Number of Specimens
  • Simultaneous multi-gas detection (O2, CO, H2S, LEL)
  • Application
  • Industrial workplace safety, confined spaces, hazardous gas monitoring
  • Resolution
  • O2: 0.1%; CO: 1ppm; H2S: 0.1ppm; LEL: 1%
  • Interface Type
  • Membrane keypad
  • Features
  • Field replaceable sensors, audible/visual/vibration alarms, built-in pump, data logging
  • Temperature
  • -20C to +50C
  • Humidity
  • 0-95% RH (non-condensing)
  • Port Size
  • Standard probe fitting, 1/8 inch OD
  • Accuracy
  • +/- 2% F.S. (sensor dependent)
  • Response Time
  • <30 seconds (T90)
  • Mounting Type
  • Handheld/portable
  • Gas Pressure
  • Atmospheric (ambient sampling)
  • Test Range
  • O2: 0-30% V/V; CO: 0-1000ppm; H2S: 0-100ppm; LEL: 0-100%LEL
  • Measuring Range
  • O2: 0-30%; CO: 0-1000ppm; H2S: 0-100ppm; LEL: 0-100%
  • Equipment Type
  • Personal Gas Detector with Pump
  • Display Type
  • Large LCD digital display
  • Power Supply
  • Rechargeable Lithium-Ion Battery (7.4V, 1800mAh)
  • Operating Voltage
  • 7.4V DC (battery powered)
  • Automation Grade
  • Manual operation
  • Usage
  • Personal safety, industrial hygiene
  • Capacity
  • Continuous operation up to 8+ hours per charge
  • Machine Weight
  • Approx. 400g (including battery and probe)
  • Test Speed
  • Instantaneous response
  • Control Mode
  • Push button panel operation
  • Pump Type
  • Integrated diaphragm pump
  • Data Logging
  • Internal memory, event and measurement logging
  • Probe Length
  • Approx. 150mm stainless steel with filter tip
  • Charging Method
  • External adaptor, USB charging supported
  • Calibration
  • Manual calibration supported for each gas channel
  • Alarm Type
  • Audible (>90dB), visual (LED), and vibration alarms
  • User Interface
  • Simple push-button navigation and menu system
  • Housing Material
  • ABS and polycarbonate composite
  • Sensor Life
  • 2-3 years typical (sensor dependent)



About Personal Gas Detector With Pump

The Multi Gas Detector with Pump is a portable and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Equipped with an integrated sampling pump, it allows gas samples to be drawn from confined, enclosed, difficult-to-access, or remote areas for safer and convenient monitoring. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration measurement with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its portable design makes it suitable for gas leak detection, confined-space monitoring, personal safety, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector with pump is suitable for applications in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial environments, helping identify hazardous gas conditions and support safer operations.

Advanced Multi-Gas Detection

Designed for critical workplace safety, this device enables simultaneous detection of oxygen, carbon monoxide, hydrogen sulfide, and combustible gases. Its large LCD digital display delivers clear and immediate readings, while multiple alarm types ensure prompt and unmistakable alerts. This advanced tool supports both spot checks and continuous monitoring in demanding industrial settings.


User-Friendly Operation and Calibration

With its intuitive push-button menu system, users can navigate functions effortlessly-even while wearing gloves. Manual calibration is supported for each gas channel, ensuring optimal sensor accuracy. The membrane keypad enhances durability and reliability during extended field operation, making calibration and routine use straightforward for professionals.


Reliable Performance in Harsh Environments

Engineered with a tough ABS/polycarbonate shell, this gas detector withstands impacts and extreme conditions-from -20C to +50C and up to 95% humidity. Featuring an integrated pump and stainless steel probe, it provides rapid, precise sampling at atmospheric pressure. The rechargeable battery supports all-day use, suiting various industrial applications.

FAQ's of Personal Gas Detector With Pump:


Q: How does the personal gas detector with pump operate in confined spaces?

A: The device uses an integrated diaphragm pump and a stainless steel probe to actively draw in air, enabling accurate sampling of hazardous gases in confined or hard-to-reach areas. Its multi-gas sensors provide real-time data to ensure safe working conditions in industrial environments.

Q: What benefits does the push-button user interface provide?

A: The simple push-button navigation and menu-based system make the detector easy to operate, even with gloves on. Users can quickly access measurement data, configure settings, and initiate manual calibration, reducing training time and minimizing user errors.

Q: When should the gas detector be calibrated?

A: Manual calibration is recommended prior to deployment in safety-critical applications, after sensor replacement, or if the device has been stored for extended periods. Regular calibration ensures maximum accuracy and compliance with workplace safety procedures.

Q: Where can the detector's data logs be accessed?

A: Measurement and event logs are stored internally within the device's memory. Users can access and download data via USB when the device is connected to a computer, aiding in incident traceability and compliance documentation.

Q: What is the process for charging the gas detector?

A: The detector can be recharged using the supplied external adaptor or through the built-in USB charging port. Simply connect the device to a power source and allow the lithium-ion battery to charge; a full charge supports over 8 hours of continuous operation.

Q: How durable is the gas detector in industrial settings?

A: Constructed from an impact-resistant ABS and polycarbonate composite, the detector is designed to endure demanding conditions, accidental drops, and exposure to workplace contaminants. Its robust housing and reliable components ensure consistent performance in harsh environments.

Q: What is the typical usage scenario for this gas detector?

A: It is ideal for personal safety monitoring in power plants, refineries, confined spaces, tunnels, and other industrial sites where dangerous gases might be present. Its portability and multi-gas capability make it suitable for workers needing dependable, real-time protection daily.
