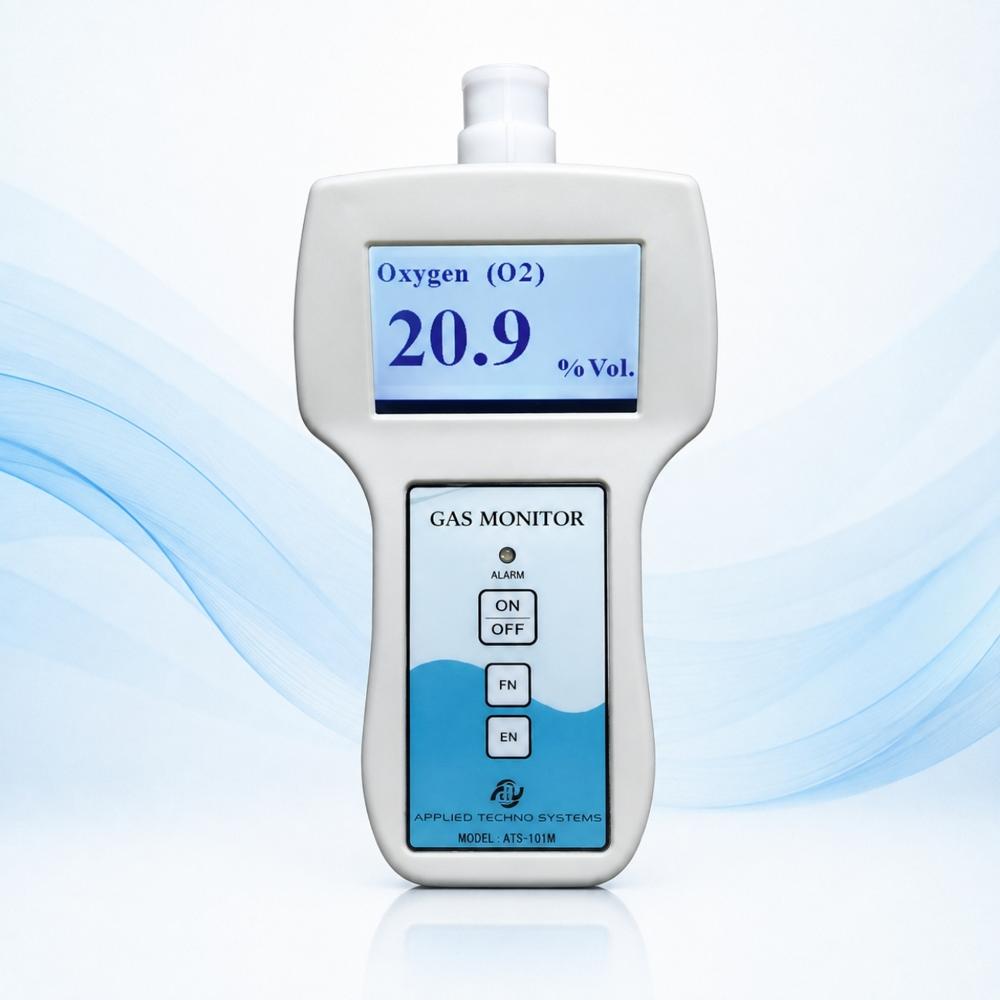

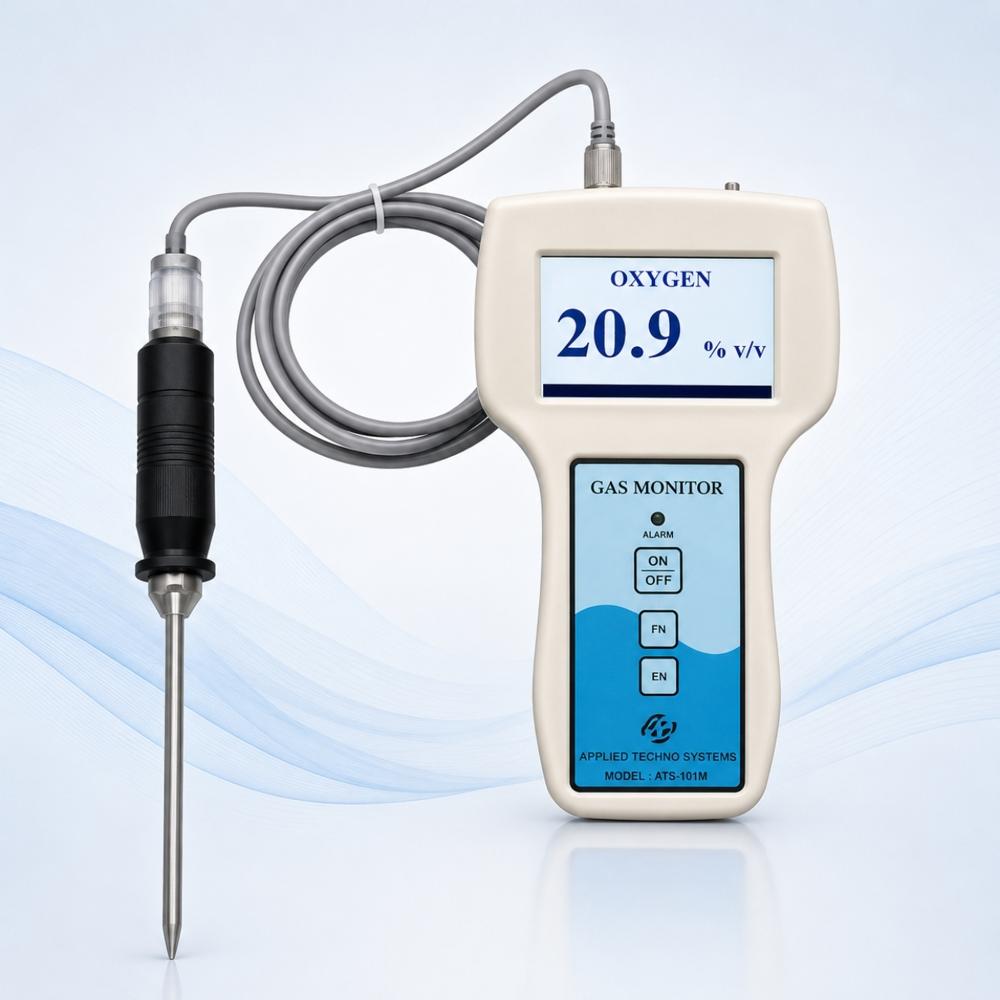

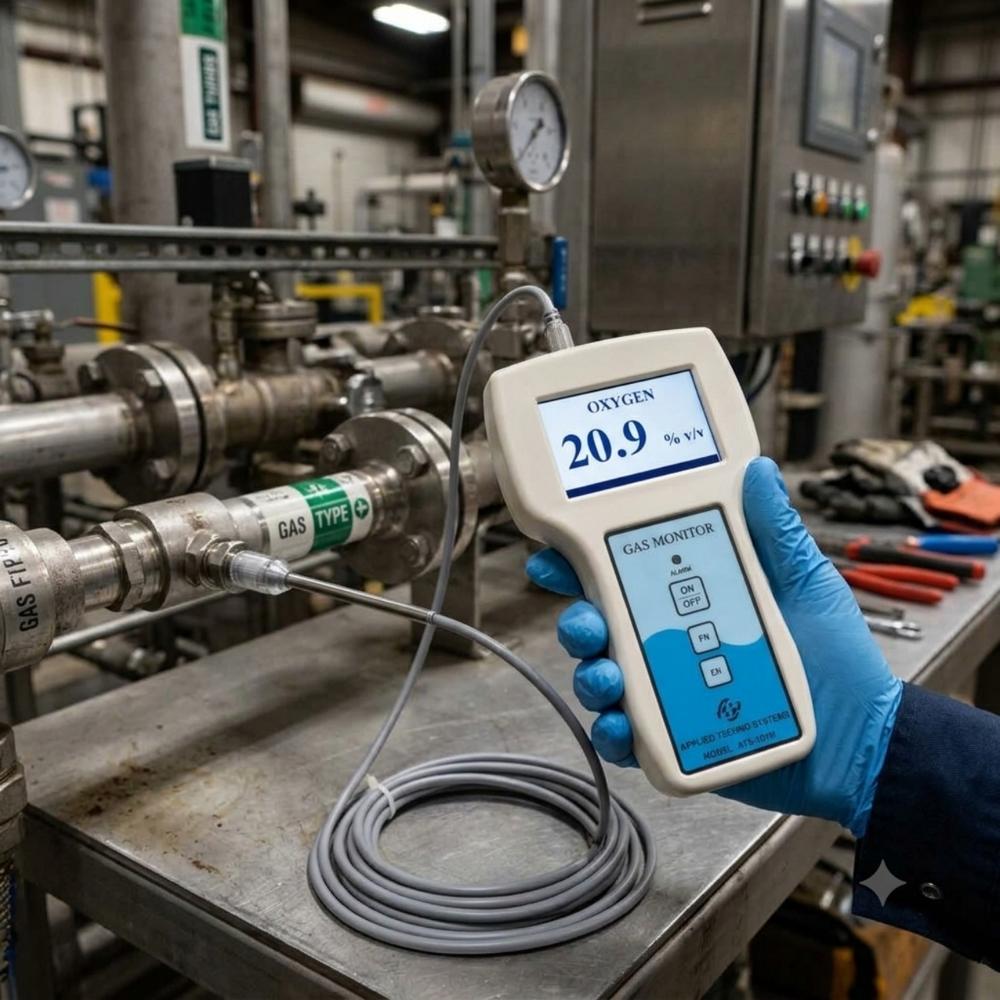

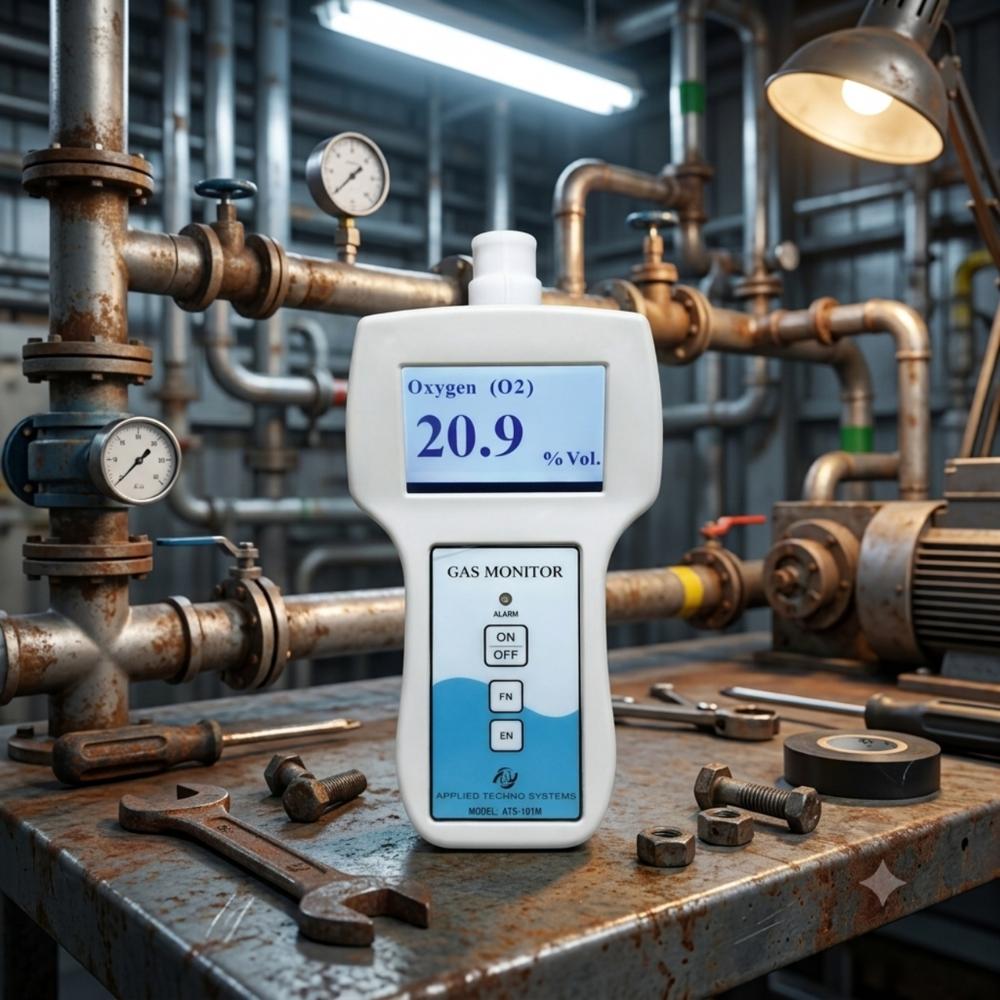

Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump
Single Gas Monitor With Pump

Single Gas Monitor With Pump

Price 41000.0 INR/ Piece

MOQ : 1 Piece

Single Gas Monitor With Pump Specification

  • Equipment Type
  • Single Gas Monitor With Pump
  • Response Time
  • <15 Seconds
  • Display Type
  • LCD Digital Display
  • Measuring Range
  • O2: 0-25% Vol
  • Gas Pressure
  • Atmospheric
  • Test Range
  • 0-25% Vol (for O2)
  • Number of Specimens
  • Single Gas
  • Power Supply
  • Rechargeable Li-ion Battery (3.7V) / USB Charging
  • Accuracy
  • 0.3% Vol
  • Application
  • Personal Oxygen (O2) Detection & Monitoring
  • Temperature
  • -10C to +50C
  • Mounting Type
  • Handheld
  • Operating Voltage
  • 3.7V (Battery Operated)
  • Interface Type
  • Membrane Keypad, USB Charging Port
  • Automation Grade
  • Semi-Automatic
  • Port Size
  • Standard Gas Inlet Fitting
  • Features
  • Handheld, Built-In Sampling Pump, Audible/Visual Alarm, Rechargeable
  • Humidity
  • 0 to 95% RH (non-condensing)
  • Resolution
  • 0.1% Vol
  • Usage
  • Industrial, Laboratories, Confined Spaces
  • Machine Weight
  • Approx. 300g
  • Control Mode
  • Manual/Push Button
  • Battery Backup Time
  • Up to 10 hours continuous use
  • Display Size
  • Approx. 2.8-inch
  • Enclosure Material
  • ABS Plastic
  • Start Up Time
  • <5 Seconds
  • Data Logging
  • Optional
  • Sensor Type
  • Electrochemical
  • Alarm Type
  • Audible, Visual, Vibration
  • Sampling Method
  • Integrated Pump Suction
  • Alarm Set Point
  • Configurable



About Single Gas Monitor With Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Fast, Accurate Oxygen Detection

Equipped with an advanced electrochemical sensor and an integrated sampling pump, this single gas monitor rapidly and reliably detects oxygen concentrations in real time. Its fast response time (under 15 seconds), high accuracy, and configurable alarm thresholds make it a premier choice for safety-critical applications.


Long-lasting, User-Friendly Design

The unit boasts a robust ABS plastic enclosure, lightweight design (300g), and ergonomic handheld format. Simple manual or push-button operation, together with an easy-to-read 2.8-inch LCD digital display, make it intuitive for both new and experienced personnel in industrial, laboratory, or confined space settings.


Versatile Power and Convenient Charging

This monitor features a rechargeable 3.7V Li-ion battery and supports USB charging, allowing up to 10 hours of continuous operation on a full charge. Startup takes less than 5 seconds, and its standard gas inlet fitting ensures compatibility for routine oxygen sampling where needed.

FAQ's of Single Gas Monitor With Pump:


Q: How does the Single Gas Monitor With Pump detect oxygen levels?

A: This device uses an electrochemical sensor and an integrated pump suction method to detect oxygen (O2) concentrations in the ambient air. The real-time readings are displayed on a large digital LCD.

Q: What kinds of alarms are included in this monitor for oxygen detection?

A: The monitor includes audible, visual, and vibration alarms that activate when oxygen levels exceed the configurable safety set points, ensuring you're promptly alerted to changing environments.

Q: When should I use the Single Gas Monitor With Pump?

A: This device is ideal for use in industrial environments, laboratories, and especially confined spaces where continuous oxygen monitoring is vital for safety compliance and personal protection.

Q: Where can this gas monitor be applied?

A: It is suitable for handheld use in a range of settings, including confined spaces like tanks and tunnels, on-site workplace monitoring, laboratory experiments, and routine safety checks.

Q: What is the process for charging the device and how long does it last?

A: Charging is done via the built-in USB port using a standard charger. Once charged, the monitor provides up to 10 hours of continuous use, making it practical for full work shifts.

Q: How do I operate and set alarm points on this device?

A: Operation is manual using the membrane keypad. Alarm set points are configurable through user-friendly controls, enabling customization for specific monitoring requirements.

Q: What benefits does this monitor offer compared to other types?

A: This model stands out due to its handheld portability, accuracy, fast startup, configurable alarms, optional data logging, and versatile recharge options, ensuring robust safety in various applications.
