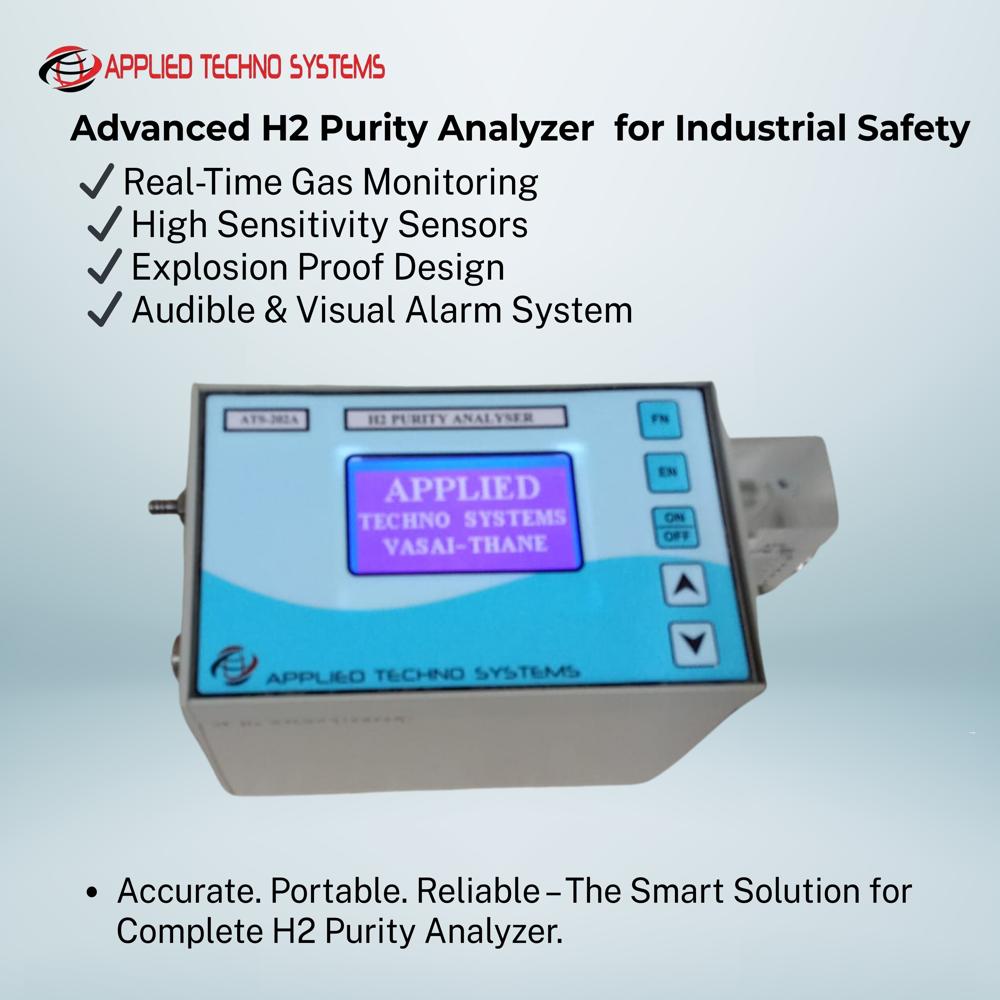

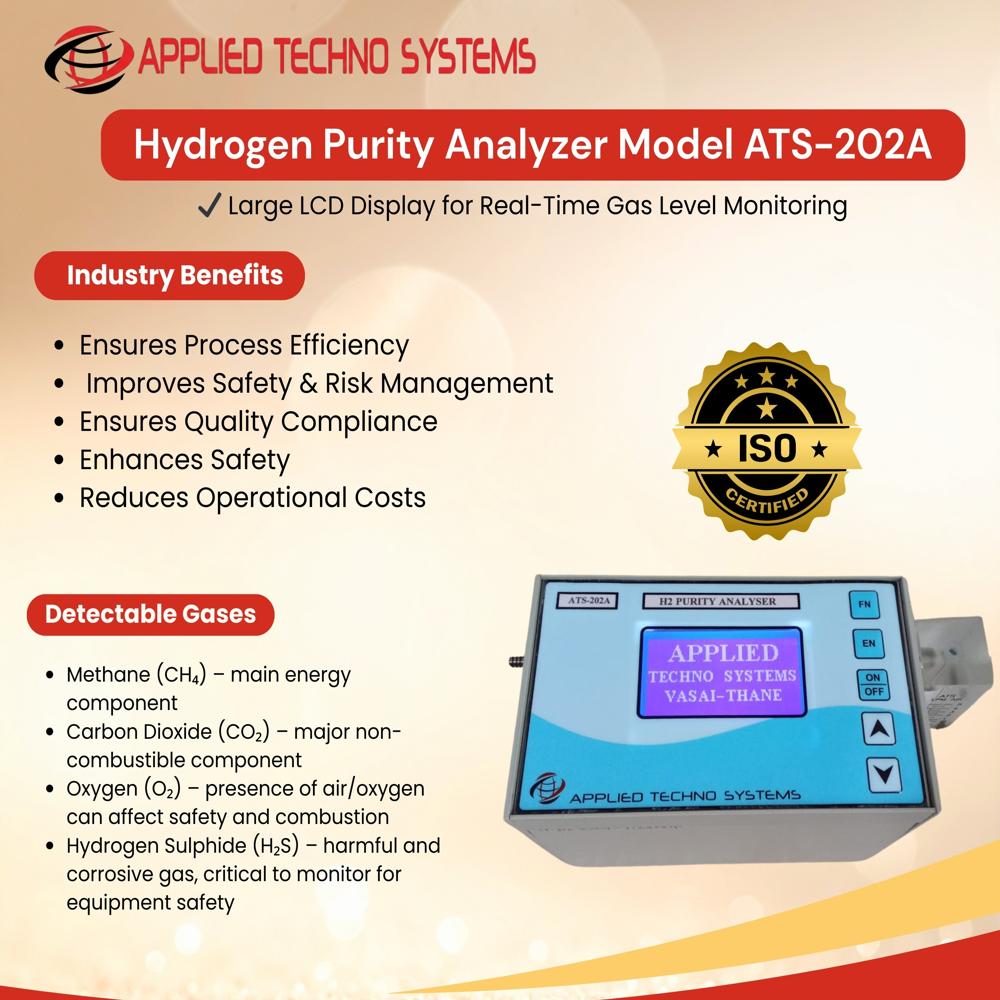

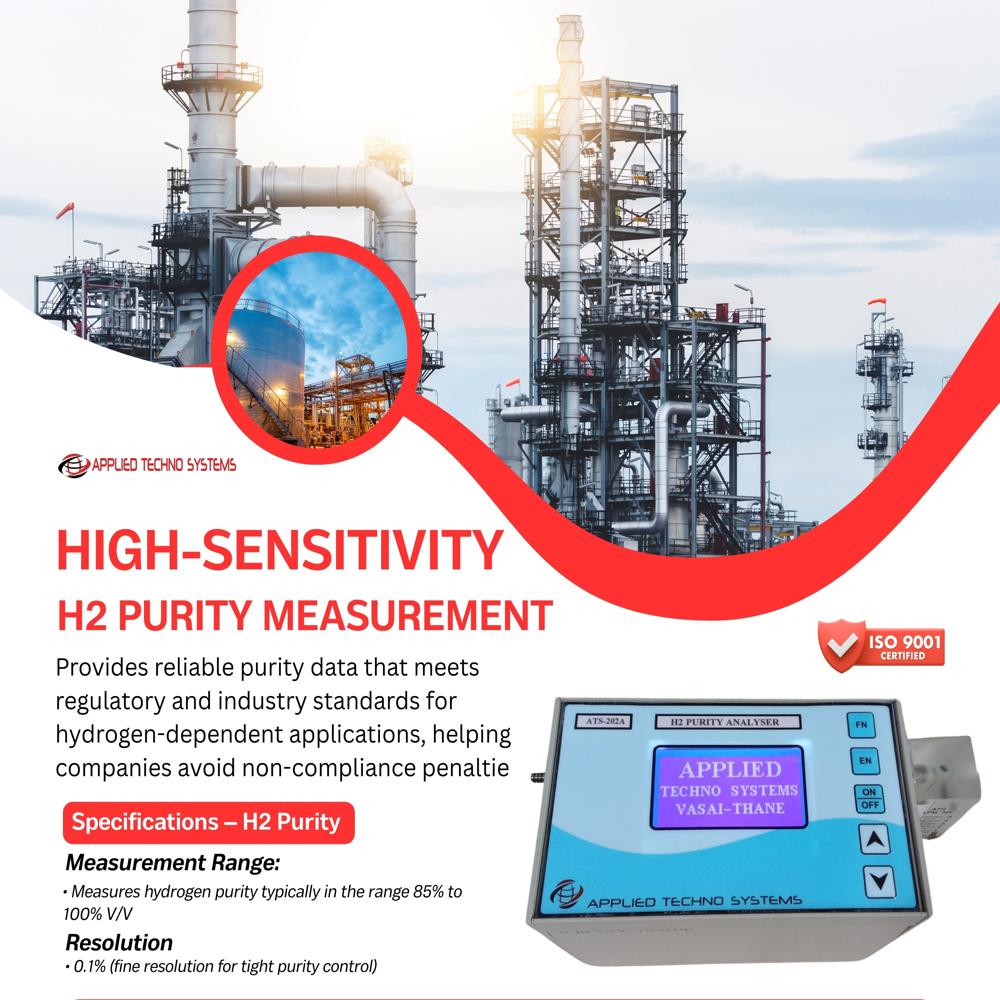

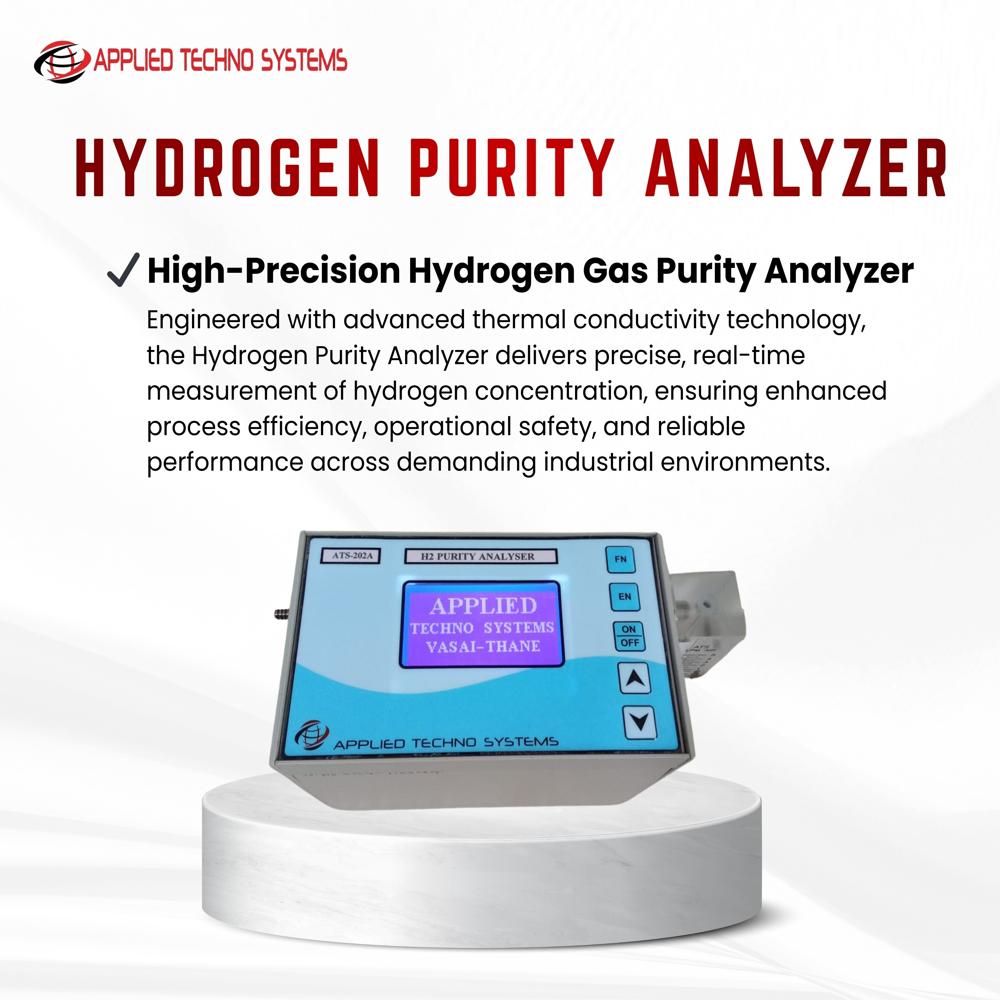

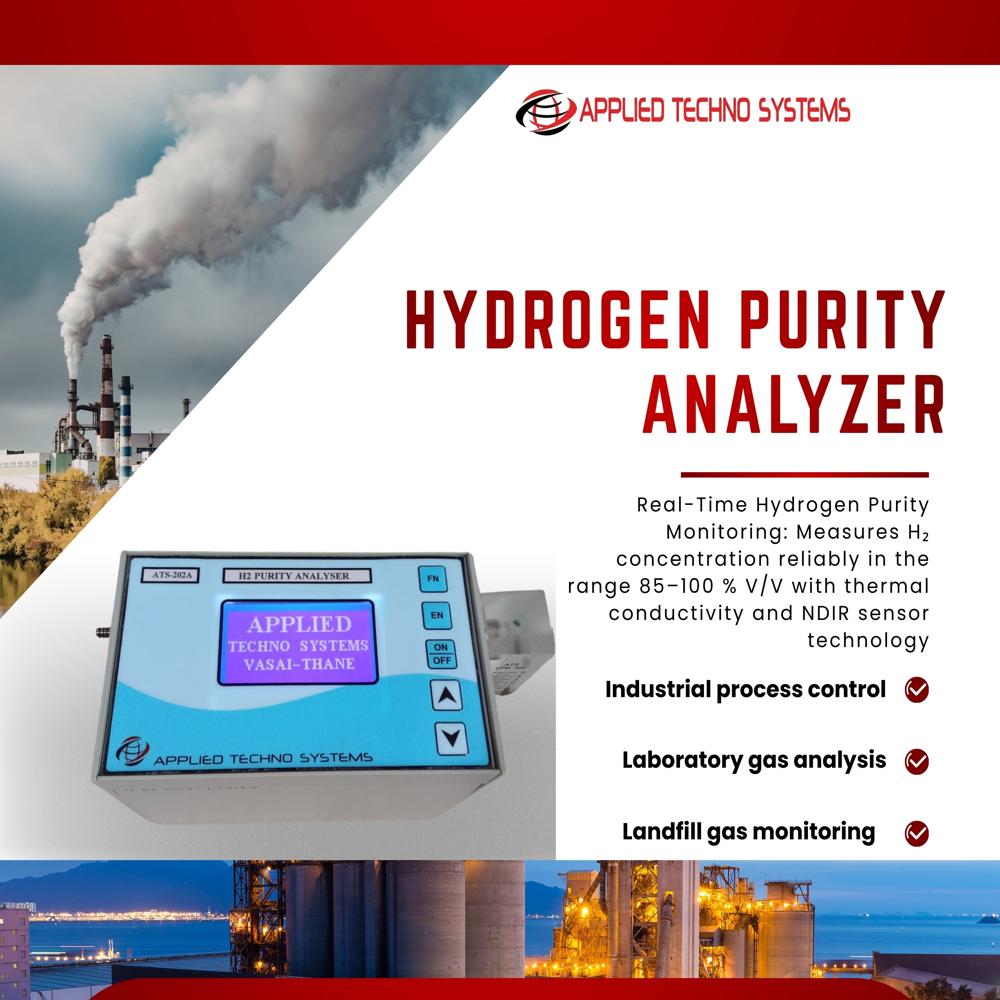

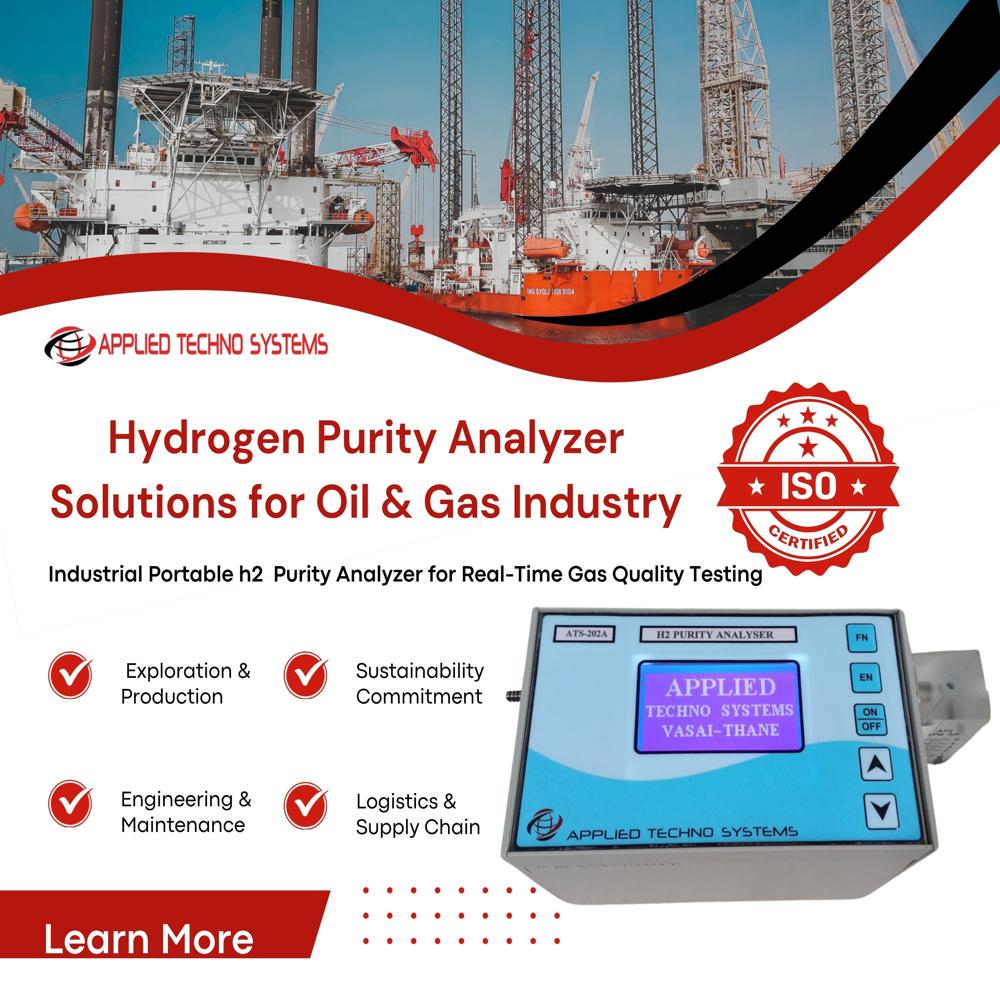

Hydrogen purity analyzer

About Hydrogen purity analyzer

The H2 Purity Gas Analyser is a high-precision instrument designed for accurate measurement of hydrogen (H) purity in industrial applications. It is widely used in power plants, hydrogen-cooled generators, transformer systems, refineries, and hydrogen production units to ensure safe operation and optimal performance.

This analyser provides real-time monitoring of hydrogen purity and detects impurities such as oxygen (O), nitrogen (N), and air contamination. Utilizing advanced Thermal Conductivity Detection (TCD) technology, it delivers high sensitivity, fast response, and stable long-term performance.

The system helps maintain optimal hydrogen quality, prevent equipment damage, and improve process efficiency. It supports seamless integration with PLC/SCADA systems for automation and remote monitoring. With its rugged design, low maintenance, and user-friendly interface, it is an ideal solution for reliable hydrogen purity analysis.

Key Features:

• Accurate H purity measurement
• Real-time hydrogen gas monitoring
• Detects impurities (O, N, air contamination)
• Advanced TCD sensor technology
• High accuracy and fast response time
• Stable and reliable performance
• Easy PLC/SCADA integration
• Digital display with user-friendly interface
• Low maintenance and long service life

Basic Specifications:

• Gas Measured: Hydrogen (H) Purity
• Measurement Range: 0100% H
• Sensor Technology: Thermal Conductivity Detector (TCD)
• Accuracy: 1% FS or better
• Output Signal: 4-20 mA / RS485 / Modbus
• Display Type: LCD / Digital
• Power Supply: 230V AC / 24V DC
• Response Time: < 1530 seconds
• Mounting Type: Online / Portable / Fixed
• Operating Temperature: 0C to 50C
• Application: Power Plant, Generator Cooling, Transformer Monitoring, Hydrogen Plants, Refineries
