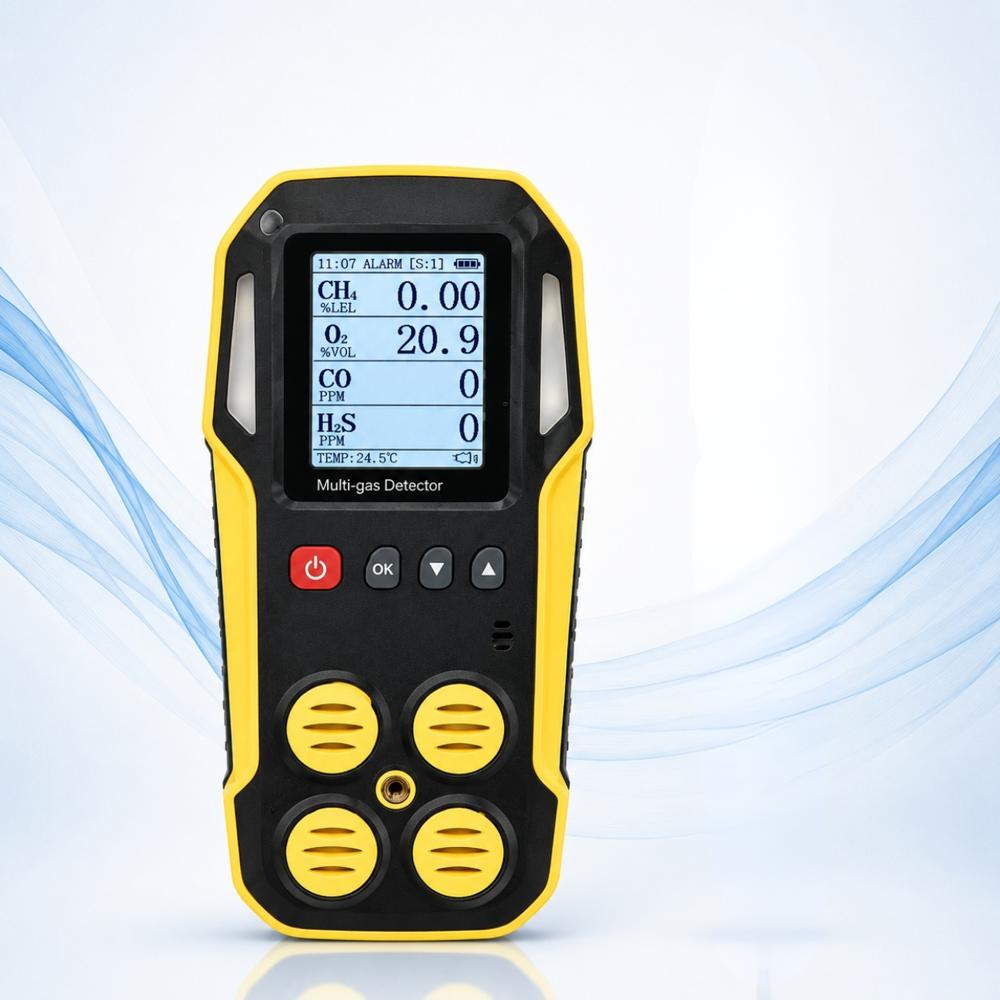

Multi Gas Analyzer
Multi Gas Analyzer
Multi Gas Analyzer
Multi Gas Analyzer
Multi Gas Analyzer
Multi Gas Analyzer

Multi Gas Analyzer

Price 49000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Analyzer Specification

  • Resolution
  • 0.01 (for gas readings)
  • Mounting Type
  • Handheld portable
  • Port Size
  • Standard gas inlet
  • Measuring Range
  • Refer to Test Range (each gas)
  • Operating Voltage
  • 3.7V DC
  • Application
  • Safety inspections, confined spaces, laboratories, industry
  • Response Time
  • 30 seconds
  • Humidity
  • 0-95% RH (non-condensing)
  • Frequency
  • Real-time continuous monitoring
  • Gas Pressure
  • Ambient pressure
  • Hardness
  • Impact-resistant housing
  • Interface Type
  • USB for charging/data
  • Power Supply
  • Rechargeable Lithium Battery (3.7V)
  • Temperature
  • -20C to +50C
  • Features
  • Alarm, LCD, simultaneous gas detection, ergonomic design
  • Max Height
  • 140 mm
  • Automation Grade
  • Semi-automatic
  • Accuracy
  • 5% (varies per gas sensor)
  • Equipment Type
  • Multi Gas Analyzer
  • Number of Specimens
  • 1 (Single Unit)
  • Display Type
  • LCD Digital Display
  • Specimen Size
  • Handheld device: 140 x 70 x 35 mm
  • Test Range
  • CH4: 0-100% LEL, O2: 0-30% VOL, CO: 0-1000 PPM, H2S: 0-100 PPM
  • Usage
  • Industrial gas detection, worker safety
  • Capacity
  • Detects 4 gases simultaneously
  • Machine Weight
  • 220 g
  • Test Speed
  • Instantaneous Detection
  • Test Width
  • Handheld (portable)
  • Test Stroke
  • Continuous Monitoring
  • Control Mode
  • Manual/Automatic
  • Data Logging
  • Internal memory (up to 1000 records)
  • Battery Life
  • Up to 8 hours
  • Compliance
  • CE, RoHS
  • Charging Time
  • 3 hours
  • Calibration
  • Automatic/Manual
  • Alarm Modes
  • Sound, vibration, LED visual alert
  • IP Rating
  • IP65
  • Operating Language
  • Multi-language support
  • Sensor Type
  • Electrochemical, catalytic combustion



About Multi Gas Analyzer

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Efficient and Reliable Gas Monitoring

Detect up to four hazardous gases instantly with this portable multi gas analyzer. Its electrochemical and catalytic combustion sensors offer reliable real-time readings for methane, oxygen, carbon monoxide, and hydrogen sulfide. With a 30-second response time and internal data storage for up to 1000 records, it's perfectly suited for industrial safety, environmental monitoring, and laboratory applications.


Enhanced Worker Safety with Multi-Mode Alarms

Equipped with sound, vibration, and LED alarms, this detector alerts users to dangerous gas levels instantly. Whether you work in noisy, dim, or hazardous environments, the multiple alert modes ensure critical warnings are noticed. The rugged, ergonomic design allows for easy handling and dependable operation in challenging conditions.


Convenience Meets Compliance

Benefit from automatic or manual calibration, multi-language support, and a USB interface for charging and data transfer. The analyzer complies with CE and RoHS standards, making it a trusted tool for exporters, importers, manufacturers, and safety professionals who demand high standards in workplace safety equipment.

FAQ's of Multi Gas Analyzer:


Q: How does the Multi Gas Analyzer alert users to hazardous gas levels?

A: This device utilizes a combination of sound, vibration, and LED visual alarms, ensuring users are promptly notified of dangerous gas concentrations in all work environments, even where noise or poor lighting may impede awareness.

Q: What is the process for calibrating the analyzer, and how often should it be done?

A: Calibration can be completed automatically or manually through the device interface. For accurate results, regular calibration is recommended before each use or according to your organization's safety protocols and local regulations.

Q: When should the analyzer's battery be recharged, and how long does charging take?

A: The rechargeable lithium battery lasts up to 8 hours with continuous monitoring. It should be connected to a USB charger as soon as the battery indicator is low, and it takes approximately 3 hours to fully recharge.

Q: Where can the Multi Gas Analyzer be effectively utilized?

A: This portable analyzer is ideal for safety inspections in confined spaces, laboratories, industrial facilities, and any location where real-time monitoring of harmful gases is critical for worker safety.

Q: What are the main benefits of using this device for industrial gas detection?

A: The analyzer delivers rapid and accurate detection of four gases simultaneously, features multiple alarm modes, provides instant real-time results, and supports data logging for compliance and analysis-maximizing operator safety and efficiency.

Q: How does the device store and manage test data?

A: Test results are stored in the internal memory, accommodating up to 1000 records. This data can be transferred via the USB interface for further analysis and compliance reporting.

Q: What is the usage process and how portable is the Multi Gas Analyzer?

A: Operation is simple: power on, select manual or automatic control, and begin monitoring. Its lightweight, handheld design (140 x 70 x 35 mm, 220 g) ensures it can be easily carried and used across various sites and applications.
