Multi Gas Detector
Multi Gas Detector
Multi Gas Detector
Multi Gas Detector
Multi Gas Detector
Multi Gas Detector

Multi Gas Detector

Price 50000.0 INR/ Piece

MOQ : 1 Piece

Multi Gas Detector Specification

  • Features
  • Portable, Audible and Visual Alarms, Real-time Measurement, Rechargeable
  • Operating Voltage
  • DC 3.7V
  • Gas Pressure
  • Atmospheric
  • Resolution
  • CH4: 0.01% LEL; O2: 0.1% VOL; CO: 1 ppm; H2S: 0.1 ppm
  • Automation Grade
  • Semi-Automatic
  • Humidity
  • 0~95% RH (non-condensing)
  • Measuring Range
  • CH4: 0-100% LEL; O2: 0-30% VOL; CO: 0-1000 ppm; H2S: 0-100 ppm
  • Application
  • Detection of Combustible and Toxic Gases in Industrial Environments
  • Test Range
  • CH4: 0-100% LEL, O2: 0-30% VOL, CO: 0-1000 ppm, H2S: 0-100 ppm
  • Display Type
  • LCD Digital Display
  • Mounting Type
  • Handheld
  • Interface Type
  • Physical Buttons
  • Equipment Type
  • Multi Gas Detector
  • Port Size
  • Standard Sensor Ports
  • Power Supply
  • Rechargeable Lithium Battery, DC 3.7V
  • Response Time
  • <30 seconds
  • Accuracy
  • 2% F.S.
  • Temperature
  • -20C to +50C
  • Usage
  • Personal Safety, Industrial Safety Monitoring, Confined Space Entry
  • Machine Weight
  • Approx. 200 g
  • Control Mode
  • Manual
  • Data Logging
  • Optional, Capacity up to 10,000 Records
  • Operating Time
  • Up to 8 Hours Continuous Use
  • Calibration
  • Automatic/Manual Calibration Available
  • Language Support
  • Multi-language Display
  • Storage Temperature
  • -20C to +60C
  • Alarm Type
  • Buzzer, Flash Light, Display Notification
  • Dimensions
  • 155mm x 70mm x 36mm
  • Sensor Type
  • Electrochemical and Catalytic Combustion Sensors
  • Ingress Protection
  • IP65 Dust and Water Resistant

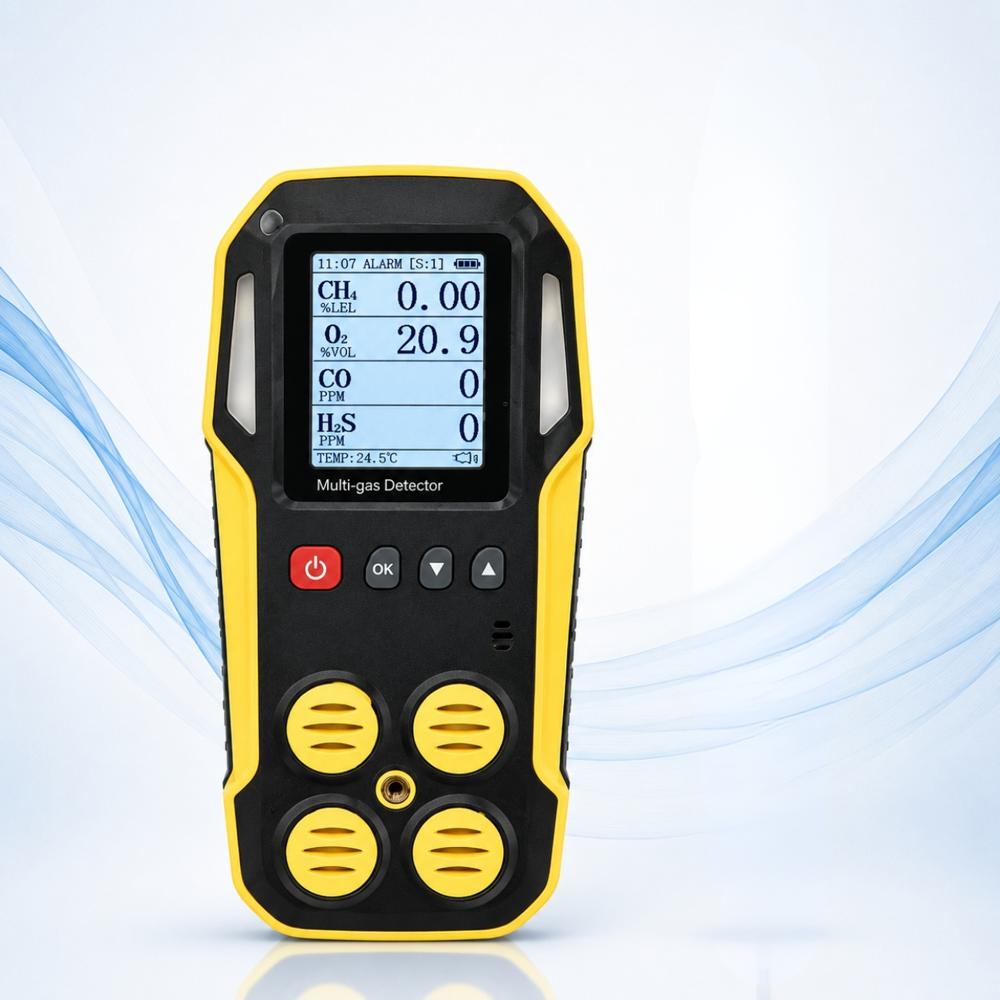

About Multi Gas Detector

The Handheld Multi Gas Detector is a compact, portable, and reliable gas monitoring instrument designed for the simultaneous detection and measurement of multiple hazardous gases in industrial and commercial environments. Depending on the sensor configuration, it can detect gases such as Oxygen (O), Hydrogen Sulfide (HS), Carbon Monoxide (CO), Sulfur Dioxide (SO), Hydrogen (H), combustible gases, VOCs, and other toxic or flammable gases. The detector provides fast and accurate gas concentration monitoring with a clear digital display and audible, visual, and vibration alarms for effective hazard notification. Its handheld design makes it suitable for personal safety, gas leak detection, confined-space entry, plant inspection, maintenance, process monitoring, emergency response, and workplace safety. The multi gas detector is suitable for use in Oil Refineries, Petrochemical, Chemical, Oil & Gas, Natural Gas, LNG/LPG, Fertilizer, Coal Mining, Power Plants, Iron & Steel, Foundries, Pharmaceutical, Battery Manufacturing, and other industrial applications, helping users identify hazardous gas conditions and maintain safer working environments.

Versatile Gas Detection

Engineered for the detection of combustible and toxic gases, this multi gas detector covers a wide measurement range for CH4, O2, CO, and H2S. Trusted in industries for confined space entry and continuous safety monitoring, its combination of electrochemical and catalytic sensors assures accurate and speedy readings.


User-Friendly Safety Features

Equipped with a bright LCD display and intuitive physical buttons, the detector provides clear real-time measurements and instant feedback with buzzer, flash light, and display notifications. Its portable design and semi-automatic control mode make it practical for personal protective use and easy to handle during fieldwork.


Robust Performance and Reliability

With IP65 dust and water resistance, this unit is built to withstand demanding environments. Automatic and manual calibration processes enhance sensor reliability, while a rechargeable battery ensures up to 8 hours of continuous operation. Optional data logging helps users track safety trends over time.

FAQ's of Multi Gas Detector:


Q: How does the multi gas detector alert users to hazardous gas levels?

A: The detector uses a combination of a loud buzzer, a flashing light, and on-screen display notifications to instantly alert users if gas concentrations exceed safe thresholds.

Q: What types of gases can this detector measure, and within what ranges?

A: It can measure methane (CH4: 0-100% LEL), oxygen (O2: 0-30% VOL), carbon monoxide (CO: 0-1000 ppm), and hydrogen sulfide (H2S: 0-100 ppm) with high accuracy and resolution.

Q: When should the multi gas detector be calibrated, and what methods are available?

A: For optimal accuracy, regular calibration is recommended, especially before use in critical safety environments. The device supports both automatic and manual calibration options to suit different field conditions.

Q: Where can this gas detector be safely used?

A: Designed for personal safety and industrial monitoring, it is ideal for confined space entry, factories, construction sites, and any environment where combustible or toxic gases are present.

Q: What is the process for reviewing historical gas exposure data?

A: With the optional data logging feature, users can store and review up to 10,000 measurement records. Accessing stored data helps analyze trends and improve workplace safety protocols.

Q: How long can the detector operate on a single charge, and how is it recharged?

A: The device operates continuously for up to 8 hours on a full charge using its built-in rechargeable lithium battery. Recharging is simple using the included DC 3.7V charging interface.

Q: What are the main benefits of using this multi gas detector in industrial environments?

A: Users benefit from its rapid response time (less than 30 seconds), robust protection against dust and water (IP65), reliable multi-gas detection, and user-friendly multilingual display, enhancing overall workplace safety and compliance.
