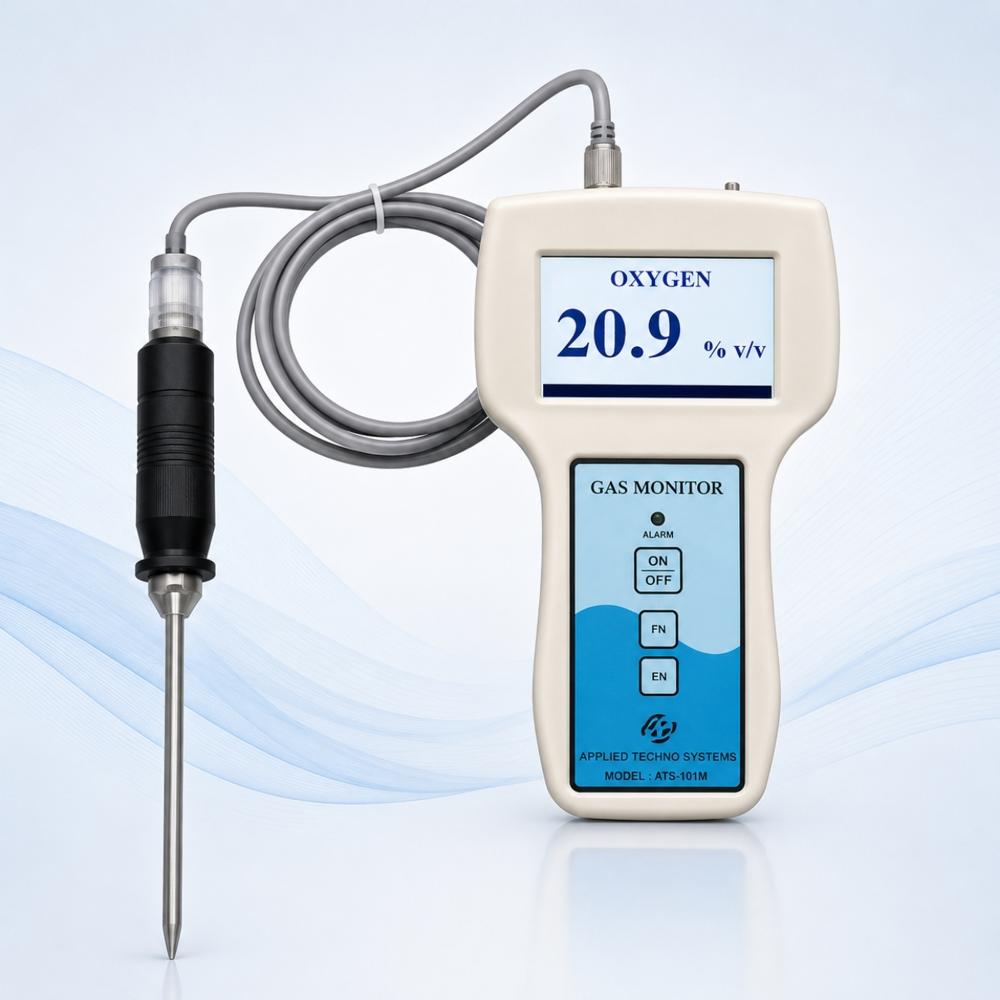

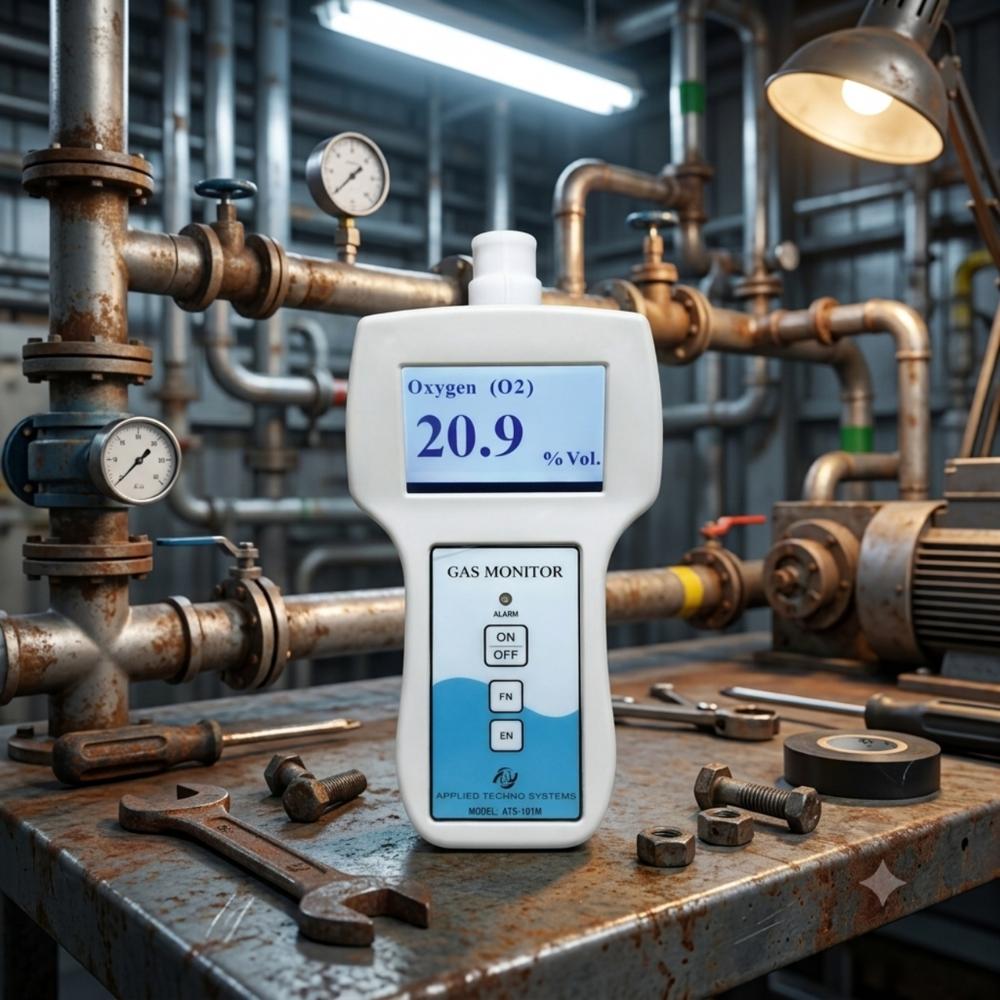

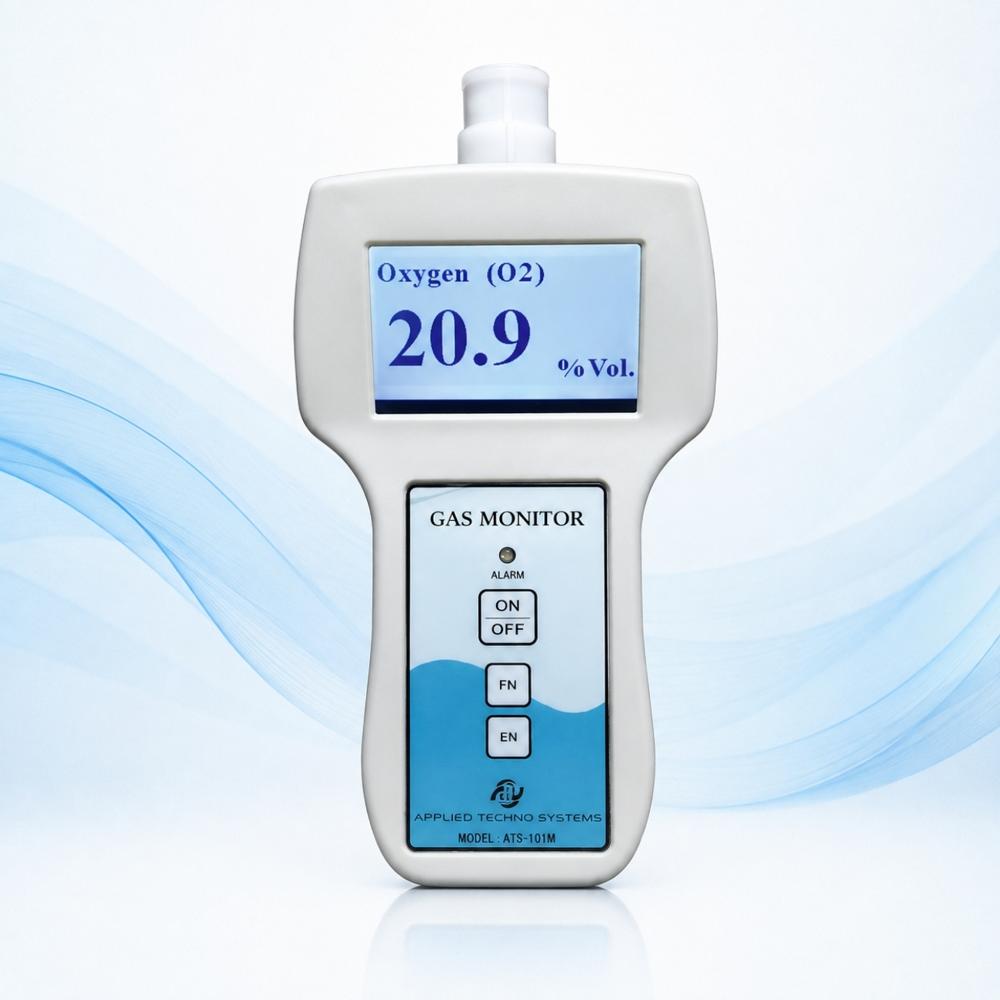

Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump
Single Gas Detector With Sampling Pump

Single Gas Detector With Sampling Pump

Price 43000.0 INR/ Unit

MOQ : 1 Unit

Single Gas Detector With Sampling Pump Specification

  • Equipment Type
  • Single Gas Detector With Sampling Pump
  • Test Range
  • 0-30% Vol (Oxygen); Gas Specific (customizable per sensor)
  • Operating Voltage
  • Rechargeable, typically 3.7V Li-ion battery
  • Response Time
  • <20 seconds (T90)
  • Display Type
  • Large Digital Backlit LCD Display
  • Accuracy
  • 2% of Full Scale
  • Port Size
  • 6 mm Inlet (for sampling tube)
  • Measuring Range
  • 0-30% Vol (Oxygen); Range differs based on sensor selected
  • Number of Specimens
  • Single point measurement
  • Max Height
  • 180 mm approx.
  • Resolution
  • 0.1% Vol
  • Temperature
  • -10C to 50C
  • Power Supply
  • Rechargeable Lithium-Ion Battery / DC Adapter 5V
  • Features
  • Built-in sampling pump, audible and visual alarms, low battery indication, portable design
  • Automation Grade
  • Semi-Automatic
  • Interface Type
  • Keypad for operation; USB for charging
  • Application
  • Industrial safety, confined space monitoring, laboratory, HVAC, medical gas monitoring
  • Humidity
  • 0 to 95% RH (non-condensing)
  • Gas Pressure
  • Atmospheric
  • Mounting Type
  • Handheld Portable
  • Usage
  • Detection and measurement of a single specific gas (e.g., Oxygen, CO, H2S etc.)
  • Capacity
  • Single gas detection
  • Machine Weight
  • Approx. 400 g (including batteries)
  • Control Mode
  • Automatic / Manual Power On/Off
  • Enclosure Material
  • ABS, Impact-resistant plastic
  • Data Logging
  • Optional built-in data storage, models available with USB download
  • Operating Time
  • 12-20 hours continuous operation per charge (depending on configuration)
  • Calibration
  • On-site calibration using calibration gas, user adjustable
  • Sampling Pump
  • Built-in diaphragm pump for remote sample collection
  • Model Number
  • ATS-101M
  • Sensor Technology
  • Electrochemical (Oxygen, CO, H2S, etc.) / Semiconductor for other gases
  • Alarm Set Points
  • Configurable High/Low Alarm Limits
  • Alarm Types
  • Audio, visual (LED), and vibration alarms on limit exceed
  • Protection Class
  • IP54 (splash and dust resistant)



About Single Gas Detector With Sampling Pump

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

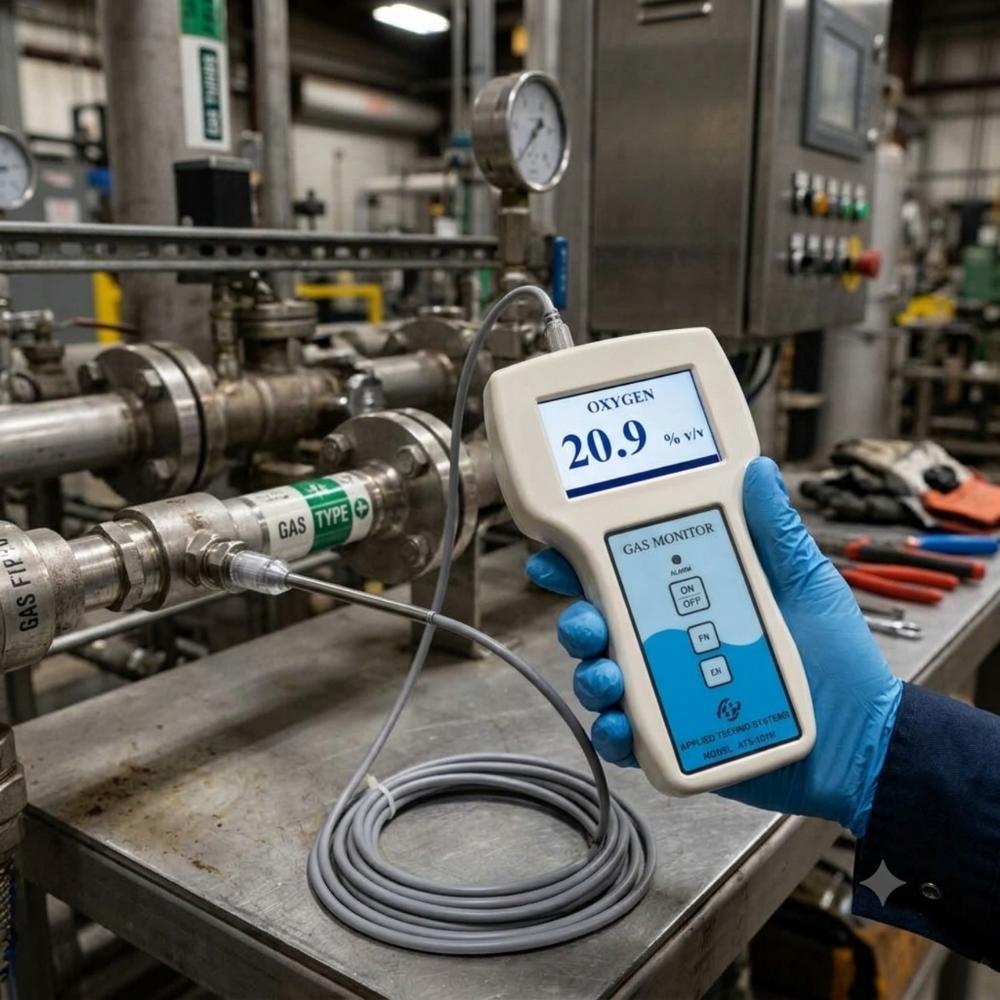

Remote Sampling with Built-in Pump

The single gas detector comes with a built-in diaphragm sampling pump, enabling users to collect gas samples from locations that are difficult or hazardous to access directly. This feature is essential for confined space monitoring, laboratory use, and industrial safety checks in areas where direct exposure is risky or impractical.


Reliable Alarm System for Enhanced Safety

Three alarm modes-audible, visual (LED), and vibration-activate instantly when gas levels exceed configured thresholds. Users can set high/low alarm limits to match their safety requirements. The multi-faceted alert system ensures no warnings go unnoticed, helping prevent accidents and exposure to harmful gases.


Advanced Sensor Technology and Fast Response Time

Utilizing electrochemical sensors for gases like oxygen, CO, and H2S, as well as semiconductor sensors for other gases, the detector achieves high accuracy and rapid response (T90 < 20 seconds). Measurement ranges and sensitivity can be customized, providing versatility to suit various gas detection needs in industrial and laboratory settings.


User-Friendly Interface and Flexible Data Management

The device is operated via a straightforward keypad and features a large, backlit LCD display for clear readings. Optional models include data logging capabilities with USB download for easy recordkeeping. On-site calibration using calibration gas allows users to maintain accuracy and reliability in their measurements.

FAQ's of Single Gas Detector With Sampling Pump:


Q: How does the built-in sampling pump of the Single Gas Detector work?

A: The integrated diaphragm sampling pump draws air samples from remote or confined spaces through a 6 mm inlet tube. This ensures safe, accurate gas detection even in locations where direct access may be hazardous.

Q: What types of alarms does the Single Gas Detector provide if gas limits are exceeded?

A: The detector features audio, visual (LED), and vibration alarms. When predefined high or low gas concentration limits are breached, these alarms activate to alert users immediately.

Q: When should the Single Gas Detector be calibrated, and how is the process carried out?

A: It's recommended to calibrate the detector regularly and after extended storage or exposure to harsh environments. Calibration is performed on-site using calibration gas bottles, allowing users to adjust the device according to environmental changes and specific gas types.

Q: Where can the Single Gas Detector with sampling pump be used effectively?

A: This detector is suitable for confined space entry, industrial safety inspections, laboratory monitoring, HVAC checks, and medical gas measurements, thanks to its portable design and robust IP54 enclosure.

Q: What are the benefits of data logging in the Single Gas Detector?

A: Models with optional data logging securely store measurement records, which can be downloaded via USB. This helps in compliance, reporting, and reviewing gas exposure incidents for improved safety and process control.

Q: How is the Single Gas Detector operated and powered?

A: Operation is managed through a simple keypad interface. The detector is powered by a rechargeable lithium-ion battery, providing up to 12-20 hours of continuous usage per charge, and can also be recharged using a DC adapter.

Q: What gases can be detected with this device and how accurate are the measurements?

A: The detector is configurable for single gas detection such as oxygen, CO, or H2S, using electrochemical sensors. It achieves an accuracy of 2% of full scale with a resolution of 0.1% Vol.
