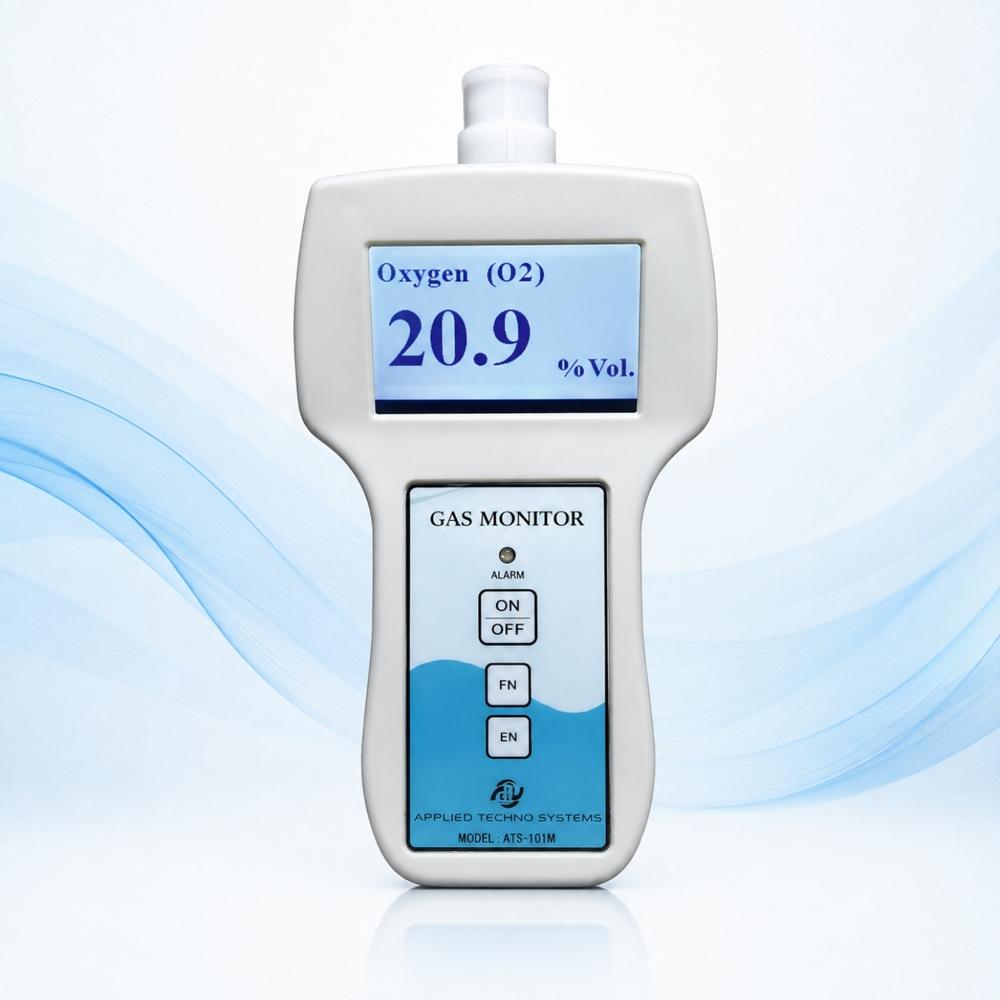

About Personal Gas Detector With Pump
The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.
High Accuracy Oxygen DetectionThe ATS-101M uses a precision electrochemical sensor to measure oxygen levels in real-time, offering an accuracy of 0.1% Vol. and a resolution of 0.1% Vol. Its fast response time, less than 20 seconds, ensures prompt detection and reliable safety in hazardous environments.
User-Friendly Operation and ChargingOperating the detector is simple with manual button controls and a clear LCD backlit display. Its rechargeable battery supports micro USB charging, providing 8-10 hours of uninterrupted use. This ensures the device is ready for daily safety checks and extended monitoring sessions.
Versatile Application and PortabilityDesigned for personal gas monitoring, the ATS-101M is lightweight and compact, suitable for indoor and outdoor use. Its pumped sampling feature aids accurate readings even in confined spaces. The detector's ambient pressure tolerance and wide humidity range make it adaptable for various industrial safety environments.
FAQ's of Personal Gas Detector With Pump:
Q: How do I use the ATS-101M Personal Gas Detector for oxygen monitoring?
A: To use the detector, power it on using the button interface, ensure the sampling inlet is unobstructed, and let the built-in pump draw ambient air. The LCD display will show real-time oxygen levels, and alarms will activate if unsafe concentrations are detected.
Q: What benefits does the built-in pump offer for gas detection?
A: The built-in pump improves sample acquisition by actively drawing air into the sensor chamber, ensuring faster and more accurate readings, particularly in confined spaces or where passive sampling may be insufficient.
Q: When should I recharge the detector's battery, and how long does it last?
A: Recharge the detector via the micro USB port after each work shift or when the battery indicator is low. The battery supports 8-10 hours of continuous operation, suitable for most daily monitoring needs.
Q: Where can the ATS-101M be used effectively?
A: The detector is designed for both indoor and outdoor environments, including industrial sites and confined spaces. It operates reliably within a temperature range of -10C to +50C and accommodates humidity levels from 0 to 95% RH.
Q: What is the process for data logging with the ATS-101M?
A: Data logging is an optional feature on the ATS-101M. To enable it, check the device settings or contact the supplier for activation. This allows users to record oxygen measurements for thorough review and compliance documentation.
Q: How does the alarm system ensure user safety?
A: The ATS-101M is equipped with both visual and audible alarms. If oxygen levels fall outside the safe range, the alarms will alert the user immediately, prompting timely evacuation or intervention.
