About Portable efficiency gas analyser

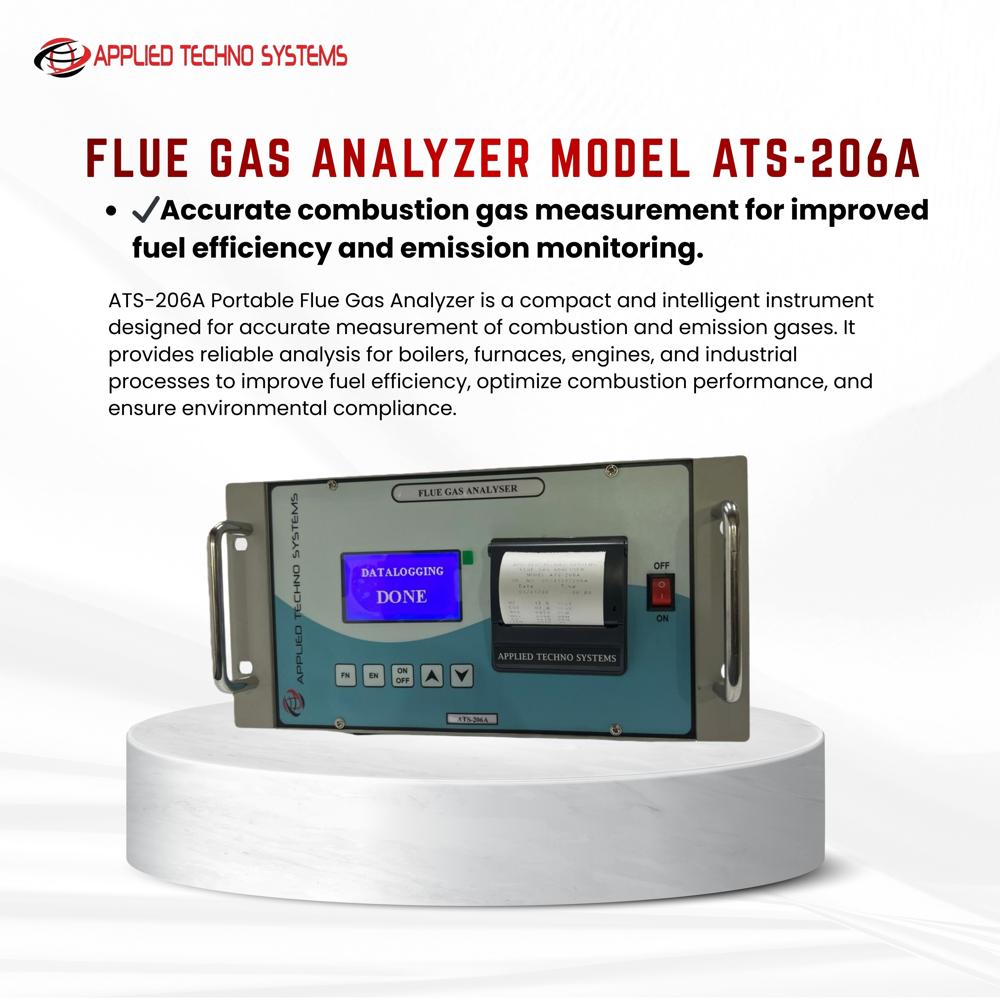

The ATS-206A Portable Gas Efficiency Analyser is a compact and advanced instrument designed for precise combustion efficiency and flue gas analysis. It measures critical gases such as O, CO, CO, NOx, and SO to evaluate combustion performance and improve fuel efficiency.

With intelligent automation, the analyser continuously calculates combustion efficiency, excess air, and flue gas parameters, helping industries optimize operations and reduce emissions. Its fully automatic calibration and sampling ensure accurate and user-friendly operation.

Designed for portability and durability, the ATS-206A is ideal for on-site efficiency testing of boilers, furnaces, and industrial burners.

Key Features

• Accurate combustion efficiency analysis
• Portable design for field applications
• Multi-gas measurement capability
• Fully automatic calibration & sampling
• Real-time display of efficiency & gas values
• Built-in pump with flow monitoring
• Multi-fuel selection (up to 10 fuels)
• Fast response and stable readings

Technical Specifications

Model: ATS-206A
Type: Portable Gas Efficiency Analyser
Display: Graphics LCD
Response Time: 20 seconds
Power Supply: Rechargeable battery + AC charger
Working Temperature: -5C to 55C
Weight: Approx. 1.5 kg

Measured Parameters

• Oxygen (O)
• Carbon Monoxide (CO)
• Carbon Dioxide (CO)
• Nitrogen Oxides (NOx)
• Sulfur Dioxide (SO)
• Combustion Efficiency
• Excess Air
• Flue Gas Temperature

Applications

• Boiler Efficiency Monitoring
• Furnace & Burner Analysis
• Energy Audit & Fuel Optimization
• Flue Gas & Stack Monitoring
• Industrial Process Control
