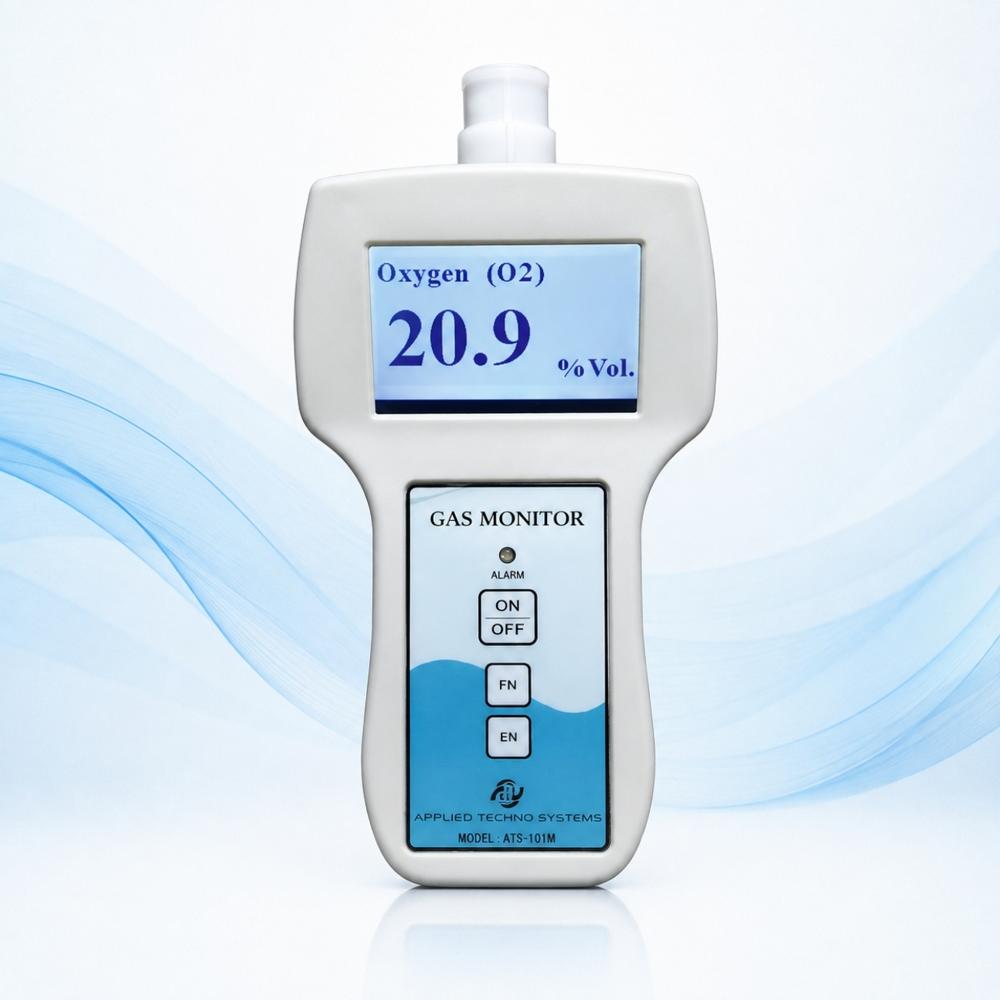

Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector
Portable Gas Sampling Detector

Portable Gas Sampling Detector

Price 45000.0 INR/ Piece

MOQ : 1 Piece

Portable Gas Sampling Detector Specification

  • Test Range
  • 0-100% Vol (Oxygen)
  • Resolution
  • 0.1% Vol
  • Interface Type
  • Physical push buttons
  • Features
  • Alarm indicator, user-friendly operation, portable design
  • Humidity
  • 0-95% non-condensing
  • Gas Pressure
  • Atmospheric
  • Max Height
  • Approx. 170mm
  • Power Supply
  • Rechargeable battery or USB power supply
  • Application
  • Oxygen monitoring in ambient air, confined spaces, and laboratory
  • Operating Voltage
  • 3.7V rechargeable
  • Accuracy
  • 0.1% Vol
  • Number of Specimens
  • Single sampling
  • Response Time
  • <10 seconds
  • Measuring Range
  • 0-100% Vol (Oxygen)
  • Mounting Type
  • Handheld
  • Display Type
  • Large LCD graphical screen
  • Port Size
  • Standard sampling port
  • Automation Grade
  • Semi-automatic
  • Temperature
  • -10C to +50C operating range
  • Usage
  • Gas sampling, safety monitoring
  • Capacity
  • Portable handheld
  • Machine Weight
  • Approx. 350g
  • Test Speed
  • Instantaneous measurement
  • Control Mode
  • Manual / Push-button
  • Housing Material
  • ABS impact-resistant plastic
  • Alarm Function
  • Visual LED indicator for threshold breach
  • Sample Method
  • Direct sampling via port
  • Calibration
  • Factory calibrated, user adjustable
  • Sensor Type
  • Electrochemical sensor for oxygen
  • Model
  • ATS-101M
  • Button Functions
  • ON/OFF, Function (FN), Enter (EN)
  • Data Output
  • Digital display only
  • Storage Conditions
  • -20C to +60C
  • Battery Life
  • Up to 10 hours continuous operation
  • Equipment Type
  • Portable Gas Sampling Detector



About Portable Gas Sampling Detector

The Handheld Single Gas Detector With Pump is a compact and portable gas detection instrument designed for reliable monitoring of a specific gas in industrial, hazardous and confined-space environments. The integrated sampling pump enables active gas sampling from locations that are difficult to access, providing convenient and reliable detection of oxygen, toxic, combustible and other hazardous gases. Available in different gas configurations, the detector is suitable for personal safety, gas leak detection, confined-space entry, process monitoring and routine workplace gas monitoring. Its rugged handheld design makes it suitable for applications across oil & gas, oil refineries, petrochemical, chemical, pharmaceutical, fertilizer, power plants, steel, mining, battery manufacturing and other industrial sectors. The detector provides clear gas concentration readings along with visual and audible alarms when preset gas levels are reached, making it suitable for a wide range of industrial gas detection and safety applications.

Reliable Oxygen Monitoring Anywhere

With its portable design and robust ABS construction, the ATS-101M ensures dependable oxygen measurement in a variety of settings. Whether you're monitoring safety in confined spaces, conducting laboratory analysis, or checking ambient air quality, this device provides fast and accurate results that help protect users and meet safety requirements.


Intuitive Controls and User-Friendly Display

Operation is made simple thanks to easy-to-use push buttons for ON/OFF, Function, and Enter tasks. The large graphical LCD screen displays real-time measurements at a glance, while the visual LED indicator notifies users instantly if oxygen levels exceed preset safety thresholds. This combination makes the ATS-101M suitable for both professionals and new users.


Factory-Calibrated Precision, User Adjustable

The ATS-101M comes factory calibrated, ensuring reliable accuracy out of the box. Users can further adjust calibration to meet specific requirements, supporting ongoing precision and compliance in demanding environments. Digital display output facilitates clear monitoring during use.

FAQ's of Portable Gas Sampling Detector:


Q: How does the ATS-101M portable gas sampling detector operate?

A: The ATS-101M operates by directly sampling oxygen through its standard port using an electrochemical sensor. Users control the device manually via push-buttons and view results on a large LCD display. It features a rechargeable battery or can be powered via USB, providing up to 10 hours of continuous use.

Q: What environments and applications is this detector suitable for?

A: This detector is ideal for oxygen monitoring in ambient air, laboratory environments, and confined spaces. Its wide measuring range and portable design make it suitable for use by field technicians, safety personnel, and laboratory staff alike.

Q: When should I perform calibration on the ATS-101M?

A: The ATS-101M comes factory-calibrated for immediate use. However, it is advisable to perform user adjustment calibration periodically or when required by your facility's safety protocols, especially if used in critical applications.

Q: Where can the ATS-101M be stored and operated?

A: The device can be safely stored in temperatures ranging from -20C to +60C and operated within -10C to +50C. It is resilient to humidity levels of 0-95% non-condensing, allowing deployment in varied environmental conditions.

Q: What is the process for taking a measurement using this device?

A: To take a measurement, activate the ATS-101M using the ON button, ensure the sampling port is properly positioned, and the device will provide an instantaneous oxygen reading. Measurement speed is typically less than 10 seconds, displayed clearly on the digital screen.

Q: What are the benefits of the visual LED alarm indicator?

A: The visual LED alarm provides immediate notification if oxygen concentrations surpass user-set safety thresholds. This ensures prompt awareness and quick action, enhancing safety in hazardous environments.
