Process gas analyser

About Process gas analyser

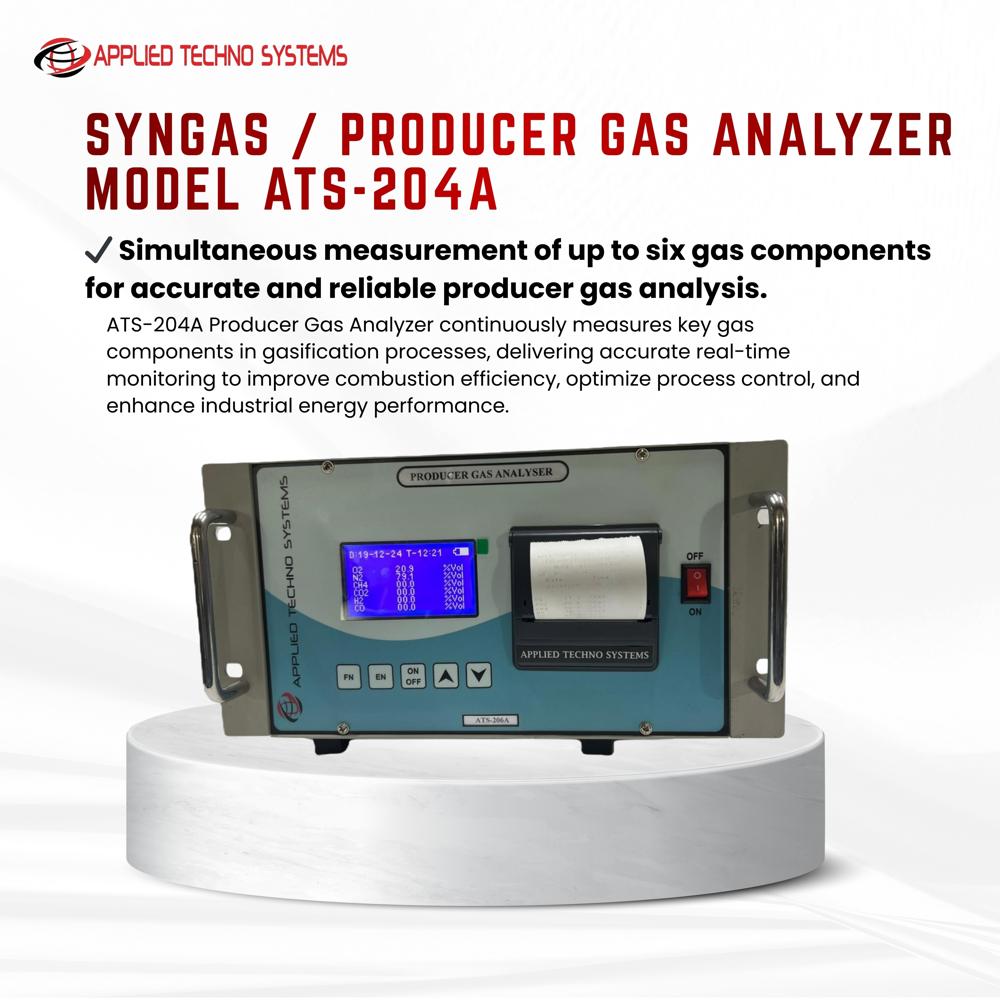

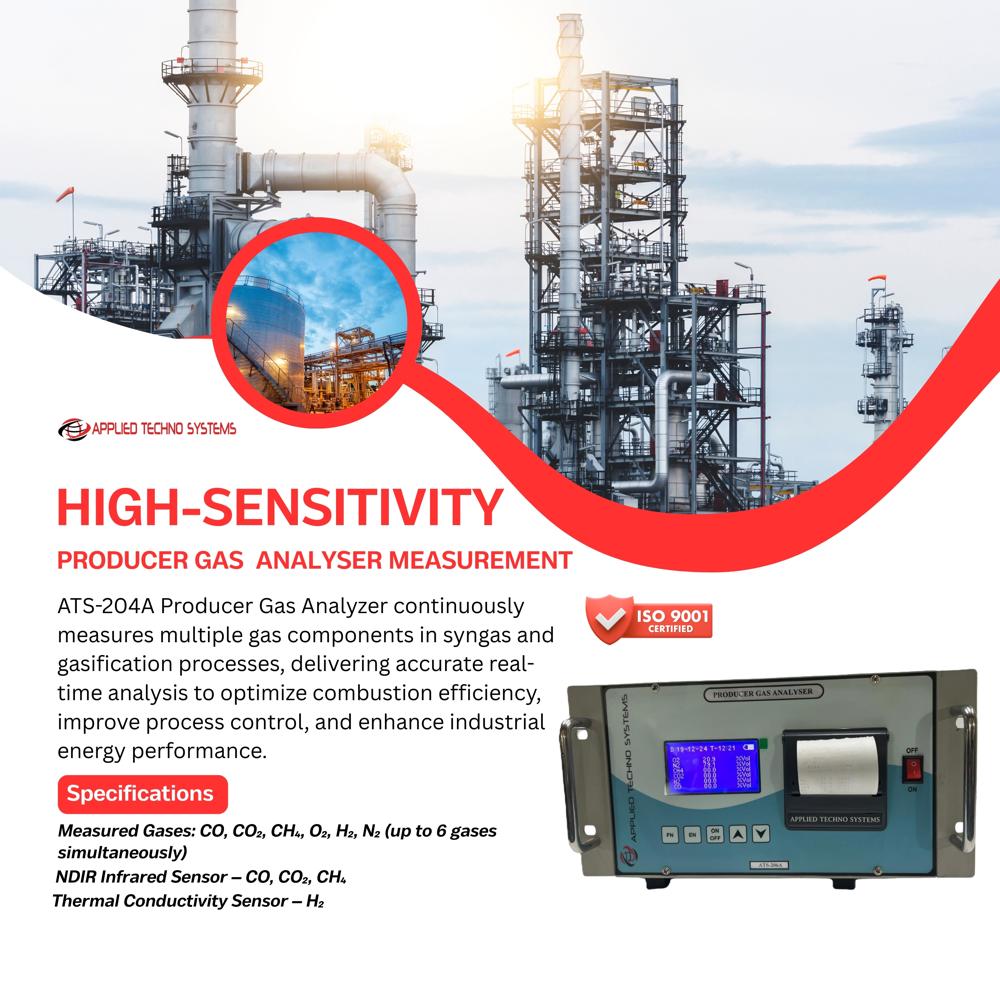

The 204A Process Gas Analyzer is a high-performance instrument designed for continuous and accurate analysis of process gases in industrial applications. Engineered for flexibility and precision, it enables simultaneous measurement of multiple gas components including CO, CO, CH, O, H, and N, making it ideal for gasification, syngas, and various process control environments.

Utilizing advanced sensing technologies such as NDIR (Non-Dispersive Infrared) for CO, CO, and CH, Thermal Conductivity Detector (TCD) for hydrogen, and electrochemical or optional paramagnetic sensors for oxygen, the analyzer ensures reliable, stable, and interference-free measurements. Its integrated sampling system with moisture and dust removal, along with an inbuilt suction pump, ensures accurate analysis even in challenging industrial conditions.

The 204A Process Gas Analyzer supports real-time monitoring, helping industries optimize process efficiency, improve safety, and maintain product quality. With features like automatic calibration, data logging, USB communication, and optional outputs such as 420 mA and RS485/Modbus, it offers seamless integration with PLC, DCS, and SCADA systems. This makes it a dependable and cost-effective solution for a wide range of industrial process monitoring applications.

Key Features

• Simultaneous measurement of up to 6 gases (CO, CO, CH, O, H, N)
• Advanced sensing technologies (NDIR + TCD + Electrochemical/Paramagnetic)
• High accuracy with excellent long-term stability
• Continuous real-time process gas monitoring
• Integrated sampling system with moisture and dust removal
• Inbuilt auto suction pump for reliable sample extraction
• Fast response time for improved process control
• USB communication with data logging capability
• Optional outputs: 420 mA, RS485/Modbus, Ethernet
• Automatic calibration and alarm functions
• Low maintenance and long sensor life

Basic Technical Specifications

• Model: 204A
• Type: Process Gas Analyzer
• Gases Measured: CO, CO, CH, O, H, N
• Technology:
  • NDIR (CO, CO, CH)
  • Thermal Conductivity (H)
  • Electrochemical / Paramagnetic (O)
• Measurement Range: Customizable (up to 0100%)
• Resolution: 0.01%
• Accuracy: 2% of reading
• Response Time (T90): < 30 seconds
• Display: 128 64 Graphic LCD Display
• Sampling: Inbuilt auto suction pump with conditioning system
• Output/Communication: USB, 420 mA, RS485/Modbus, Ethernet (optional)
• Power Supply: 230 VAC / 1224 VDC / Rechargeable Battery (optional)
• Operating Temperature: -5C to 55C
